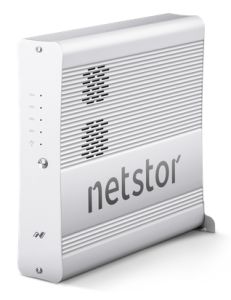

Netstor Thunderbolt 3 to 4 x NVMe Slots, with 120W PSU, and one Thunderbolt 0.5M cable

(M.2 NVMe SSD not included)

All-Flash, Ultra Big Storage Capacity

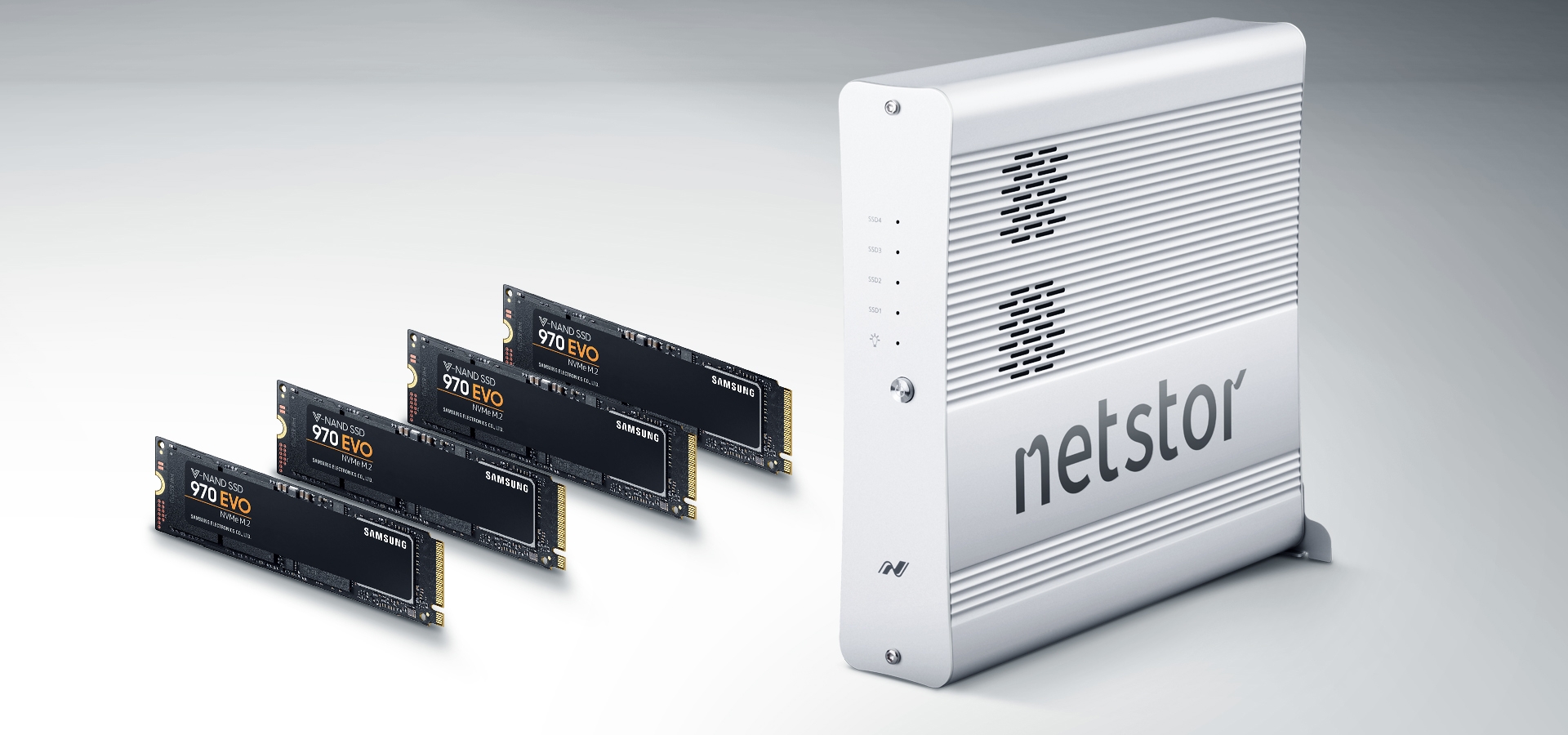

Netstor NA622TB3 storage is created to support up to four M.2 PCIe NVMe SSDs. With the present-day largest single M.2 NVMe SSD of 2TB in the market, the maximum storage reaches up to 8TB capacity totally by way of four M.2 NVMe SSDs installed inside.

na622tb3_4slots_NVMe_Thunderbolt3

* NVMe SSD sold separately

Worlds First Thunderbolt 3 External
M.2 SSD Storage with Built-in PCIe Switch

The Thunderbolt 3 NA622TB3 has been considerately designed to be integrated with a high performance PCIe Gen3 switch, permitting each M.2 SSD slot within the NVMe storage to get the best achievement the professional wants.

Each M.2 SSD socket within the Netstor unit is guaranteed to have PCIe 3.0 x2 bandwidth of up to 1600 MB/s, which is precisely the doubled performance ensuring that each individual M.2 SSD capacity volume and each RAID group of dual M.2 SSDs can get the best and optimum throughput and accomplishment.

netstor na622tb3 include built-in PCIe switch to keep the best performance

The Convenient Front M.2 SSD LED Indicators

The Netstor team has thoughtfully designed the enclosure front individual M.2 SSD LED indicators for each M.2 NVMe SSD installed inside the NA622TB3, so the users can easily and conveniently understand the status of each M.2 NVMe SSD within the Netstor unit at any time.

* NVMe SSD sold separately

Thunderbolt 3 High-Bandwidth up to 40 Gbps

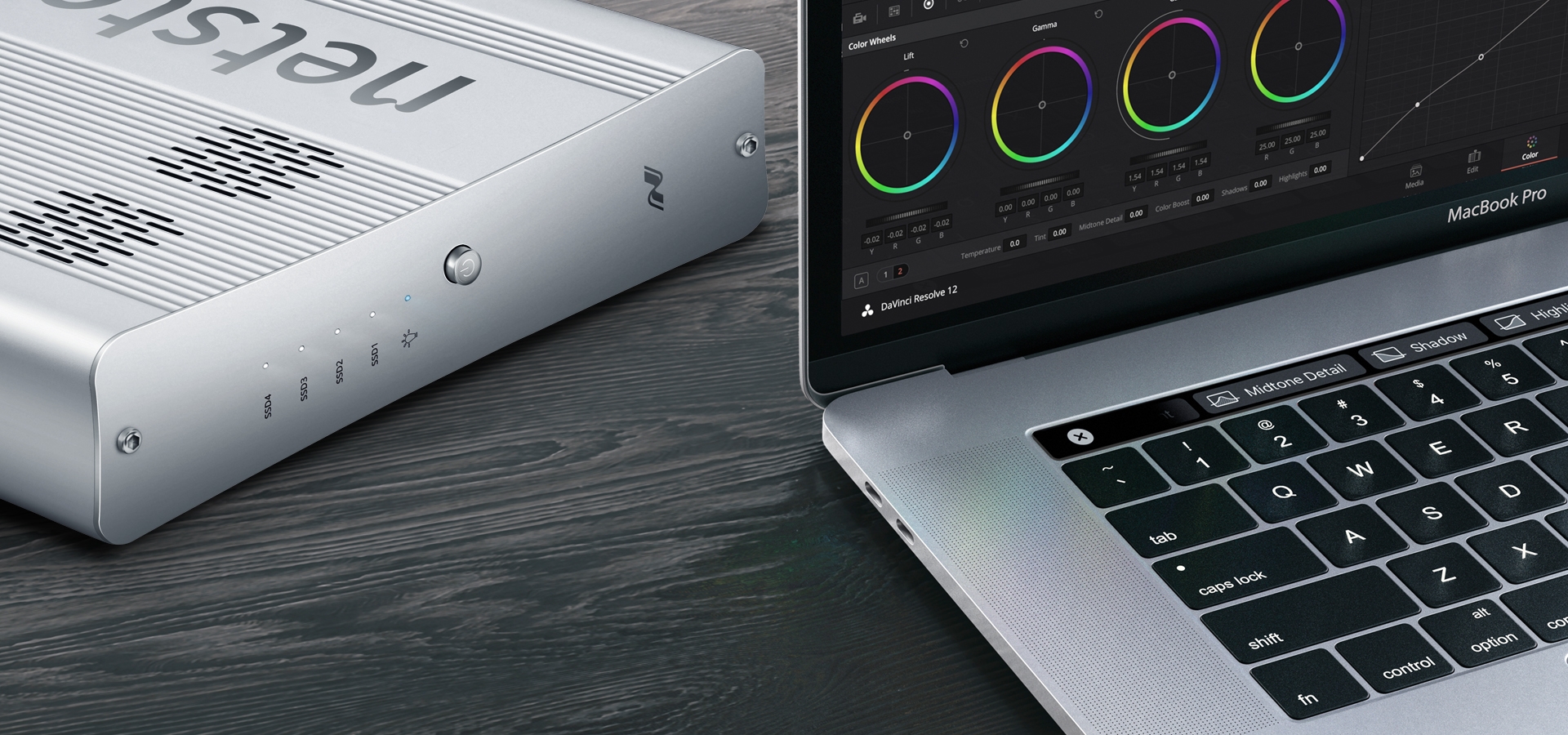

All the modern Mac and Windows PC laptops/all-in-one have equipped with the up-to-date lightning-fast Thunderbolt 3 (40Gbps) interface, and accordingly the Netstor Thunderbolt 3 four-slot M.2 NVMe SSD storage is specifically suited to all the present-day Mac/Windows PC laptop host computers in support of the professional editing workflows.

Thunderbolt 3 40 Gbps
Thunderbolt 2 20 Gbps
Thunderbolt 1 10 Gbps
USB3.1 Gen2 10 Gbps
USB3.1 Gen1 5 Gbps

The Blazing-Fast Data Rates up to 2750 MB/s

Designed light and portable four-slot M.2 NVMe SSD storage with support of delivering extraordinary, optimized performance and achievement, the Netstor unit features Thunderbolt 3 interface capable of providing data transfer rates up to 2750 MB/s, two times the previous generation of Thunderbolt 2, in favor of all sorts of data storage, supporting both macOS and Windows PC platforms.

na622tb3_blazing_stream_aja_Thunderbolt_NVMe
the performance of na622tb3 up to 2500 mb per second which is tested via AJA test

Gloway 2TB NVMe SSD *4
iMac 27(Mid-2017)

* Performance may vary based on system hardware &nfiguration. (NVMe SSD sold separately)

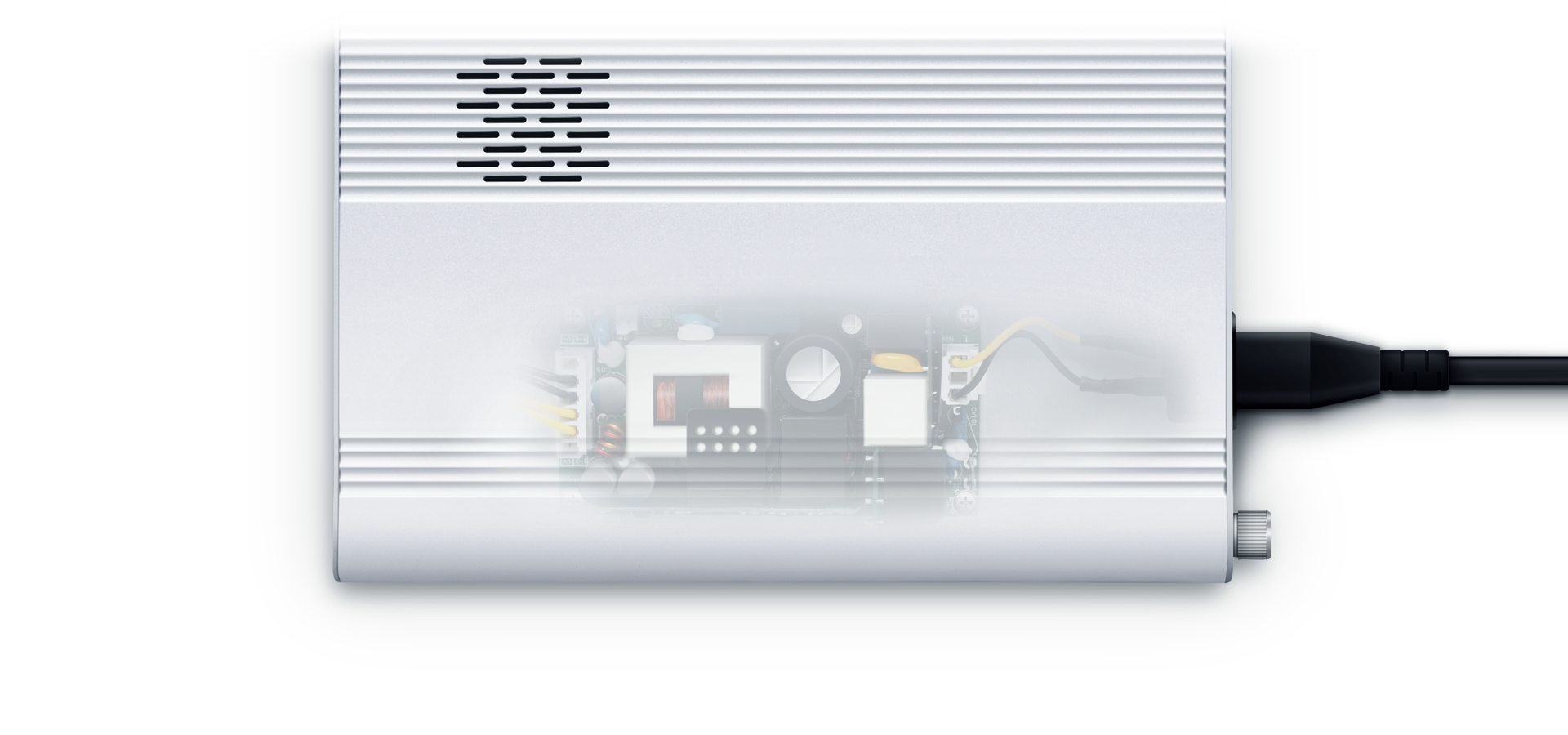

The Built-in 120W PSU

The NA622TB3 features the abundant and reliable built-in 120W power supply unit. Even if the prospective, high power required four M.2 PCIe NVMe 22110 or 2280 SSDs are installed within the Netstor unit for working, all the solid-state drives are ensured to have the most stable, sufficient power for production.

na622tb3 can support 4 NVMe ssd working at the same time by reliable built-in 120W power supply unit

Support USB Power Delivery 15W Charging

The M.2 NVMe SSD storages Thunderbolt 3 ports have incorporated USB power delivery (USB PD) 15W charging, allowing the NA622TB3 to power and charge the upstream Thunderbolt 3 laptop and the downstream device via the Thunderbolt 3 cable.

na622tb3_charging_external_NVMe_Thunderbolt

High Efficiency Ultra Quiet Temp Dissipation Framework

The NA622TB3 storage features the three-level variable-speed fan cooling system. In addition to the superior airflow dissipation framework of the Netstor unit, users can also select the most suitable fan speed according to the production settings in favor of the varied working environments.

All other product names mentioned in the content are trademarks or registered trademarks of their respective companies in the U.S. and other countries.

Specifications:

Host Interface Thunderbolt3 (USB-C)
Data Transfer Rate 40Gbps
NVMe Interface Four M.2 x4 M key (Four PCIe 3.0 x2 electrical)
NVMe Type Supports 2242 / 2260 / 2280 / 22110 PCIe SSD
Capacity NVMe SSD sold separately
RAID Mode JBOD (RAID 0 or 1 can be provided by OS)
Configurations A Each single NVMe SSD can be configured as individual volume
B Each dual NVMe SSD can be configured as a group volume (as RAID 0 / 1 by O.S.)
C Four NVMe SSDs can be configured as a group volume (as RAID 0 by O.S.)
Boot Disk Yes
macOS 10.13+
Windows 10
LED Display for Enclosure Standby - orange
Power on - blue
NVMe Access - flashing white
Dimension 220(D) x 195(W) x 46(H) mm
8.66(D) x 7.67(W) x 1.81(H) inch
Material Aluminum housing
Power Supply 120W Single Power Supply
AC Input: 100240V, 50-60Hz
Cooling Two 45 x 45 x 12 mm Blower Fan
O.S. support macOS High Sierra 10.13 above
Windows 8 / 10
Weight 1.5 Kgs / 3.3 lbs
Operating Temperature 0 to 40C (32 to 104F)
Storage Temperature -10 to 50C (14 to 122F)
Relative Humidity 20 to 80% (non-condensing)
Scalability Thunderbolt 3 port for daisy-chain up to 6 devices
Limited Warranty 2 Years
Package Content Enclosure x 1
Thunderbolt3-40Gbps cable x 1 (0.5 meter)
Power Cord x 1
