All stock codes associated to this product
DPATXMATREXX55MESH, DP-ATX-MATREXX55-MESH, 6933412713616, 6933412714057
Deepcool MATREXX 55 MESH Mid Tower Case - Black
Design
Dual 4mm Tempered Glass
Full sized 4mm thickness, tempered glass side panel and a front panel give
the case a unique look to perfectly show off your inner structure
Massive Cooling Compatibility
Optimized airflow is guaranteed with large air intakes on two sides of the
front panel and an air exhaust in the back and on top, to keep your components
cool
Cooling Compatibility :
Supports the installation of Liquid Cooler :
- 120/140/240mm radiator liquid cooling system on the top
- 120mm radiator liquid cooling system in the rear
- 120/240/360mm radiator liquid cooling system in the front
Supports the installation of Cooling Fans :
- 2x120/2140mm fan on the top
- 1x120mm fan in the rear
- 3x120mm or 3140mm fan in the front
Easy Cable Management
Cable managing is now easy with a 210mm wide tower compartment (23mm
clearance)
- Supports Motherboards up to E-ATX
- Power Supply: ATX PS2 (Length less than 170mm)
- Supports 370mm (max) Graphic card installation
- The large area of air-intake at two sides of the front panel ensures
sufficient airflow for the systems
- The magnet-mounted dust filter provided at the top panel, offers users
easy removal and cleaning
- 1xUSB3.0/2USB2.0/Audio(HD)/Mic/Reset/RGB Button/Power
Features
- A compact ATX computer case supports motherboards up to E-ATX;
- Full sized 4mm thickness, tempered glass side panel and the front panel
give the case a unique look and perfectly show off your inner
structure;
- The RGB lighting strip in the front, is easily controlled by manual button
or via motherboard; extra connectors are ready for motherboard SYNC control
with any combination with other DEEPCOOL/GAMER STORM brand 12V RGB
devices;
- Supports installation of 120/240/360mm radiator liquid cooling system in
the front, 120/140/240mm radiator liquid cooling system on top and 120mm
radiator liquid cooling system in the back;
- Supports 370mm (MAX) long Graphic Card installation;
- Optimized airflow is guaranteed with large air intakes on two sides of the
front panel, keeping your components cool;
- The 210mm wide tower compartment with 23mm clearance is perfect for cable
management;
- A magnetic dustproof net on top and dust-filter in the front and
bottom.
Specifications
|
Motherboards |
E-ATX/ATX/Micro
ATX/Mini-ITX |
|
Case
Type |
Middle
Tower |
|
Materials |
ABS+SPCC+Tempered
Glass |
|

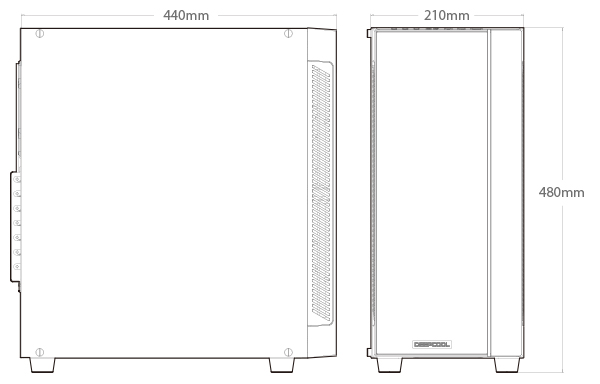

Product Dimensions
(LxWxH) |
440x210x480mm |
|
Net
Weight |
6.97
kg |
|
Gross
Weight |
8.01
kg |
|
5.25" Drive
Bays |
0 |
|
3.5"/2.5" Drive
Bays |
2 |
|
2.5" Drive
Bays |
2+2 |
|
I/O
Ports |
1xUSB3.0/2xUSB2.0/1xAudio(HD)/1xMic,1xRGB
Button |
|
Expansion
Slots |
7
Slots |
|
Power Supply
Type |
ATX PS2 (maximum
length: 170mm) |
|
Cable
Management |
23mm
Clearance |
|
CPU Cooler Height
Limit |
168mm |
|
VGA Length
Limit |
370mm |
|
Cooling Fans
Support |
Pre-installed: None.
Optional: Rear: 1x120mm; Front: 3x120mm/ 3x140mm; Top: 2x120mm/
2x140mm |
|
Liquid Cooler
Support |
Front: 120/240/360mm
radiator; Top: 120/140/240mm radiator; Rear: 120mm
radiator |
|
Carton Dimension
(LxWxH) |
523x277x514mm |
|
EAN |
6933412713616 |
|
P/N |
DP-ATX-MATREXX55 |
Product Dimension
