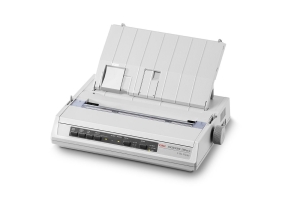

OKI 9 Pin Dot Matrix Printer - 80 column

IMG 1 of 1
No Longer Available
Part Number:
477687
(?) Brand:
OKI Web Site
Manuf No:
42590059
Shipping Weight:
9.1 KG (Includes product packaging)
Estimate Shipping
Date Added:
21/9/2020
Details Files Finance Images & Video
All stock codes associated to this product
42590059, ODM280ECO

OKI 9 Pin Dot Matrix Printer



Overview

The compact ML280eco offers great print quality at a low cost. High reliability and a small device footprint make it ideally suited for front and back office applications including multipart forms, logs and labels.

Compact design

Ideal for point-of-sale and under the counter use

Eco-friendly

Features OKIs system on chip (SoC) energy-saving technology

Versatile printing

Feeds cut sheet and continuous paper with low-tear off

Long-life performance

Durable 9-pin print head, high 20,000 MTBF

High reliability and compact dimensions make the ML280eco well-suited for front and back office applications including multi-part forms, logs and labels in commercial and industrial environments including manufacturing, retail and the service sector. A low-profile design is combined with low power usage and a long product life, with an impressive mean time between failures (MTBF) of 20,000 power-on hours.

Compact design - Ideal for point-of-sale and under the counter use

Compact and with an unobtrusive design, the ML280eco fits neatly under the counter, making it ideal for point-of-sale and workstation applications where space is limited.

  • Compact, 80 column dot matrix printer
  • Centronics parallel, Serial RS232C and USB 2.0 interfaces as standard for easy configuration
  • OKI Microline, Epson FX and IBM Graphics printer emulations

Eco-friendly - Features OKIs system on chip (SoC) energy-saving technology

OKI's system on chip (SoC) power management technology reduces running costs and energy consumption.

  • Eco-friendly technology, power save mode consumes just 2.4W

Versatile printing - Feeds cut sheet and continuous paper with low tear off

Printing up to 4 copies simultaneously at quick print speeds of 375 characters per second (cps), the versatile ML280eco feeds both cut sheet and continuous paper with low tear-off allowing continuous forms to be removed on demand.

  • Up to 375 characters per second (cps) print speed
  • Multi-part paper handling (original + 3 copies)
  • Platen-mounted pin feed accommodates sprocket paper from 242 to 254mm wide
  • Roll Paper Stand (RPS) option available for continuous printing of passenger lists, call logs and industrial data logs

Long-life performance - Durable 9-pin print head, high 20,000 MTBF

Low power usage, a long-life 9-pin print head and a high mean time between failures (MTBF) of 20,000 power on hours minimises running costs and maximises uptime.

  • Long-life, 200 million character print head
  • High 20,000 MTBF
  • 3 million character ribbon life

Specifications

Printing Method

Serial Impact Dot Matrix Method

Print Head

9 Pin

Dot Wire Diameter

0.34 mm

Print Direction

Bidirectional/Unidirectional printing, Short line-seeking printing

Graphic Resolution

Max. 240(H) x 216(V) dpi

Print Speed

Super Speed Draft : 375 cps, High Speed Draft : 333 cps, Utility : 250 cps, Near Letter Quality : 63 cps

Line Feed Pitch

4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.35mm(n/72 ") (n=1-85), n x 0.18mm(n/144 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255)

Feed Speed

3.0 inches per second

Feed Rate

4.23mm(1/6) line feed: Approx. 86 milliseconds

Paper Route

Tractor feeder (Rear), Tractor feeder (Bottom), Manual (Top), Roll paper stand

Character Pitch

Super Speed Draft : 12.0 cpi

High Speed Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi

Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional

Near Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional

Printing Width

80 characters/line at ANK 10 cpi

Interface

IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), RS-232C (25pin)

Emulation

OKI Microline, ESC/P emulation, IBM ProPrinter emulation

Supported OS

Windows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008

Receive Buffer

Max. 128KB

Resident Font

High Speed Draft, Utility, NLQ Courier, NLQ Gothic, Scalable Courier, Scalable Gothic, -

Font Style

Bold, Double Width, Double Height, Emphasized, Italics, Over score, Underline

1-D Barcode

UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5

Paper Type

Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label

Paper Weight Adjustment

Manual

Paper Weight

Continuous paper : 52 - 75 gsm

Single part paper : 60 - 90 gsm

Multi part paper : 35 - 40 gsm

Copy Capability

Normal print mode: original + 3sheets(Total Thickness < 0.35mm)

Dimensions(WxDxH)

360 x 275 x 80 mm

Operating Environment

Operating: 5 - 35 C, 20 - 80 %RH

Storage: -40 - 70 C, 5 - 95 %RH

No condensation

Power Source

Single phase 220 - 240 VAC 10%, 50/60 Hz 2%

Power Consumption

Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 40W)

Idle: Approx. 6W

Power Save: < 2.4W

Noise Level

Operating :Approx. 58 dBA

Quiet Mode: < 51 dBA

MTBF(Mean Time Before Failure)

20,000 hours

Ribbon Life

Black : 3 million characters

Print Head Life

Approx. 300 million strokes/ pin

In the Box

Ribbon cartridge, Power cable, CD-ROM, Others
