All stock codes associated to this product
DPATXESHIELD, DP-ATX-E-SHIELD, 6933412713647

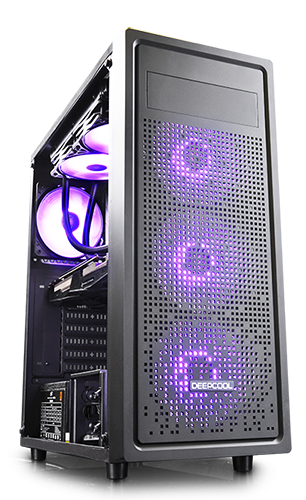

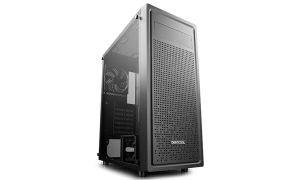

Deepcool E-Shield Middle Tower Case - Black
Description
The all-new E-SHIELD comes with 4mm thick Tempered Glass side-panel, which
gives the case a unique look to perfectly show off your inner structure.A
Square-hole Array style front panel is used to keep sufficient intake airflow
from the front, and also to keep the exterior semi-transparent for RGB devices.
Cooling performance is crucial for a computer case, and E-SHIELD does a great
job on this point thanks to its square-hole array style front panel.Exquisite
and optimized structural design makes E-SHIELD a leading choice for PC
enthusiasts who want a PC chassis with great performance.
4mm Tempered Glass
4mm thick Tempered Glass side-panel gives the case a unique look to perfectly
show off your inner structure.
Square-hole Array style front panel
Square-hole Array style front panel used to keep sufficient intake airflow
from front, and also keep semi-transparent for RGB devices.
Cooling Compatibility:
Line Cooler Support
- 120/140/240/280/360mm radiator liquid cooling system(360mm radiator
without CD-ROM installed)
- 120/140/240mm radiator liquid cooling system(240mm radiator without CD-ROM
installed
- 120mm radiator liquid cooling system
Cooling Fan Support
- 3x120mm or 3140mm (without CD-ROM installed)
- 2x120mm or 2140mm (with CD-ROM installed)
- 2x120mm or 2140mm
- 1x120mm
E-ATX/ATX/Micro ATX/Mini-ITX M/B Installation; Power Supply: ATX PS2 (Length
less than 170mm)
210mm wide tower compartment with 25mm clearance for cable management
Supports the installation of 370mm (MAX) long Graphic Card
1*USB3.0/2*USB2.0/Audio(HD)/Mic/Reset/Power
Features
- Supports up to E-ATX motherboard.
- Supports installation of 120/140/240/280/360mm radiator liquid cooling
system at front (360mm radiator without CD-ROM installed).
- Supports installation of 120/140/240mm radiator liquid cooling system on
top (240mm radiator without CD-ROM installed).
- Supports installation of 120mm radiator liquid cooling system at
rear.
- Supports 370mm (MAX) long Graphics Card installation.
- Magnetic dust proof net on top, easy for cleaning.
- Friendly designed internal structure for easy installation.
- 4mm thick tempered glass side-panel.
- 1xUSB 3.0 +2*USB 2.0 Ports.
- 25mm clearance for cable management.
Specifications
|
Motherboards |
E-ATX(Without
CD-ROM) /ATX/Micro ATX/Mini-ITX |
|
Materials |
ABS+SPCC+Tempered
Glass |
|
Case
Type |
Middle
Tower |
|
Product
Dimension(LxWxH) |
438x210x477mm |
|
Gross
Weight |
7.34
kg |
|
Net
Weight |
6.36
Kg |
|
5.25"
Drive Bays |
1 |
|
3.5"
Drive Bays |
2 |
|
2.5"
Drive Bays |
2+2 |
|
I/O
Panel |
1xUSB3.0/2xUSB2.0/1xAudio(HD)/1xMic |
|
Expansion
Slots |
7 |
|
Cable
Management |
25mm
clearance |
|
Cooling
Fans |
Pre-installed:
Rear: 1x120mm fan; Optional: Front: (Without CD-ROM installed) 3x120mm or
3x140mm; (With CD-ROM installed) 2x120mm or 2x140mm, Top:
2x120/140mm |
|
Liquid
Cooler Support |
Front:
120/140/240/280/360mm(280/360mm without CD-ROM); Top: 120/140/240mm; Rear:
120mm |
|
Power
Supply Type |
ATX
PS2 (maximum length: 170mm) |
|
CPU
Cooler Height Limit |
168mm |
|
VGA
Length Limit |
370mm |
|
Carton
Dimension (LxWxH) |
523x277x514mm |
|
EAN |
6933412713647 |
|
P/N |
P/N:DP-ATX-E-SHIELD |

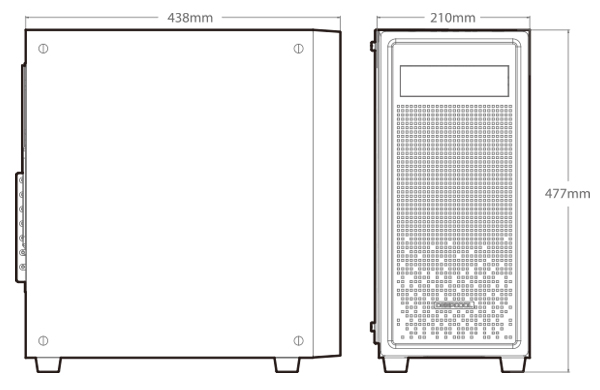

Product Dimension
