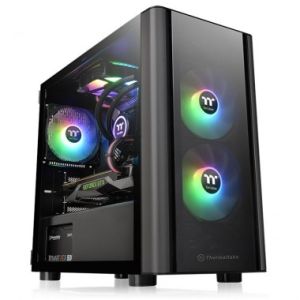

Thermaltake V150 Tempered Glass Micro Chassis
Overview
The V150 TG is a micro chassis that comes with one preinstalled 120mm
standard rear fan, a power supply cover, and can support up to a standard Micro
ATX Motherboard
The V150 Tempered Glass Micro Chassis is the newest member of the Thermaltake
V Series chassis. It is designed to be a compact size and fits a standard Micro
ATX motherboard. The V150 TG is the first micro case of the V Series that is at
a budget-friendly price point. It is targeted for users who just started pc
building and is looking for a basic enclosure to start their
journey.
The V150 TG is also compelling to users who love to showcase interior
components and its full RGB glory. Hardware expansion and ventilation of the
case are all taken into consideration during the innovation process. Besides two
4mm tempered glass windows and one preinstalled 120mm standard rear fan, the
V150 TG can accommodate two 140mm fans at the front and one 140mm fan on the
top, and a full-length PSU cover for overall exceptional performance which is
ideal for both gamers and enthusiasts.
Built-in PSU Cover
The V150 TG comes with a full length power supply cover providing plenty of
space to tuck away cables, while keeping airflow clear for your hard drives and
PSU.
Tempered Glass Window
The V150 TG comes with two 4mm tempered glass panels at the front and on the
left, thicker and more scratch resistant when compared to standard acrylic. On
top of that, the enlarged window design enables you to display and admire all
your components in their full RGB glory.
Excellent Dust Filtration
A handy magnetic fan filter on the top simply attaches for easy dust
filtration and particulate protection. At the base of the chassis, additional
fan filters provide excellent protection against both dirt and
dust.
Ideal Expandability and Ventilation
The V150 has good expandability. It can support a CPU cooler with a maximum
height of 155mm, horizontal VGA placement of up to 350mm in length (without a
front fan), and a power supply with a length of up to 220mm. Optimized for
excellent cooling capabilities, the chassis comes with one presintalled 120mm
standard rear fan, you can also choose to install two 140mm fans at the front
and one 140mm fan on top. For All-in-One CPU cooling compatibilities, the V150
TG can support 120mm, 240mm and a 280mm at the front and 120mm in the
rear.
Handy I/O Ports
One 3.0 USB, two 2.0 USB, HD Audio to grant direct access when
needed.
Specifications
|
P/N |
CA-1R1-00S1WN-00 |
|
SERIES |
V
Series |
|
MODEL |
V150
TG |
|
CASE
TYPE |
Micro
Case |
|
DIMENSION
(H x W x D) |
440
x 208 x 398 mm |
|
(17.32
x 8.19 x 15.67 inch) |
|
NET
WEIGHT |
5.45
kg / 12 lbs |
|
SIDE
PANEL |
4mm
Tempered Glass x 2 (Left & Front) |
|
COLOR |
Exterior
& Interior : Black |
|
MATERIAL |
SPCC |
|
COOLING
SYSTEM |
Rear
(exhaust) : |
|
1
x 120 x 120 x 25 mm fan |
|
(1000rpm,
16dBA) |
|
DRIVE
BAYS |
2
x 2.5" ; 2 x 3.5 |
|
-ACCESSIBLE |
|
-HIDDEN |
|
ExPANSION
SLOTS |
4 |
|
MOTHERBOARDS |
6.7
x 6.7 (Mini ITx), 9.6 x 9.6 (Micro ATx) |
|
I/O
PORT |
1
x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
|
PSU |
Standard
PS2 PSU (optional) |
|
FAN
SUPPORT |
Front: |
|
2
x 120mm or 1 x 120mm |
|
2
x 140mm or 1 x 140mm |
|
Top: |
|
1
x 120mm, 1 x 140mm, |
|
Rear: |
|
1
x 120mm |
|
RADIATOR
SUPPORT |
Front: |
|
1
x 240mm or 1 x 120mm |
|
1
x 280mm or 1 x 140mm |
|
Rear: |
|
1
x 120mm |
|
CLEARANCE |
CPU
cooler height limitation: 155mm |
|
VGA
length limitation: 350mm(Without Front Fan) |
|
PSU
length limitation: 220mm |
