All stock codes associated to this product
RS300E10RS4, RS300-E10-RS4
Asus RS300-E10-RS4 LGA 1151 Intel Xeon E C242 4 DIMM DDR4, M.2, 4 x
2.5" Hot-swap SSD Rack Optimized Server with Quad Intel Ethernet
Overview
- Built on the Intel Xeon E platform to deliver optimized single-CPU rack
server performance in 1U form factor with 4 DIMM slots and two M.2 slots for
leading computing performance.
- Flexible expandability for storage with support for one NVIDIA graphics
card or two PCIe slots to expand the I/O, while four 2.5 hot-swappable SSDs
and two 2.5 internal SSDs allow for larger storage.
- Advanced I/O supports the ASUS PIKE II 3000 series for integrated RAID
data protection.
- Quad Intel Gigabit Ethernet ports support teaming while failover function
ensures uninterrupted network connectivity.
- Supports redundant 450W 80 Plus Gold power supply to reduce operating
costs and capital expenses and enable uninterrupted operation even during
maintenance.
Delivers a workload optimized solution
RS300-E10-RS4 supports the latest Intel Xeon E processors, which are 1.36x
faster than the previous generation and operate at a maximum of 95W for leading
performance. It supports four memory slots that fit up to 64GB of DDR4 2666 for
memory-intensive computing.
Flexible expansion for better storage
RS300-E10-RS4 offers the performance required by demanding visual computing
workloads with support of one NVIDIA graphics card, or you can choose two PCIe
Gen3 slots to expand I/O capacity. A built-in PCI slot is designed for the usage
availability of legacy PCI devices.
RS300-E10-RS4 fits four hot-swappable 2.5-inch SSDs or 3.5-inch HDDs and two
2.5-inch internal SSD bays are included for larger storage. Two M.2 slots
accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3
x4 bandwidth 5.3X faster than 6 Gb/s SATA III for faster boot speeds.
High-speed mini-SAS HD connections

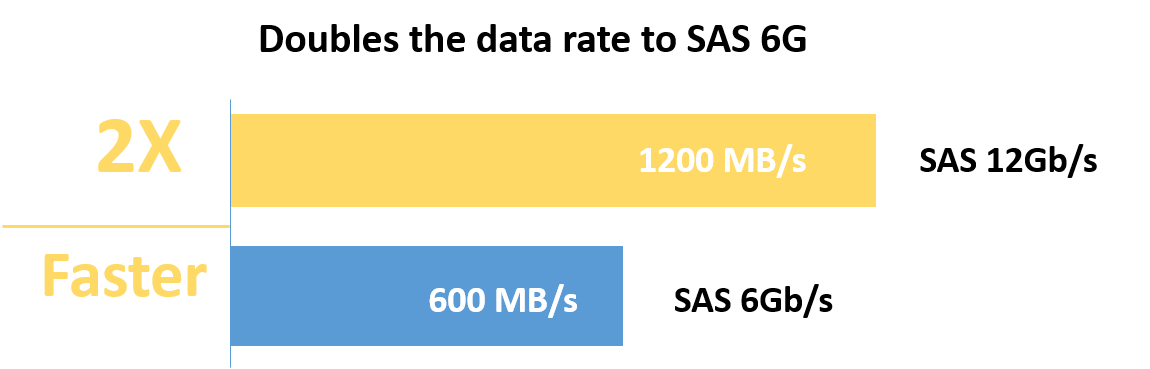

RS300-E10-RS4 comes with a mini-SAS HD connector that support up to four SATA
for 6Gb/s connectivity with external devices and cleaner cable routing.
RS300-E10-RS4 also supports ASUS PIKE II 3000 series, the latest enterprise
storage solution, featuring support for 12Gb/s SAS storage and integrated RAID
data protection. With ASUS PIKE cards, you can immediately improve the storage
capacity and performance of RS300-E10-RS4, making it a great upgrade option.
Redundant Gold PSU support
RS300-E10-RS4 supports redundant 450W 80 Plus Gold power supplies, which are
96%+ efficient, directly reducing operating costs and capital expenses. The 1+1
power-supply design allows the server to keep working even if one power supply
requires maintenance, enabling uninterrupted operation.
Maximize I/O performance and data protection
RS300-E10-RS4 supports ASUS PIKE II 3000 series, the latest enterprise
storage solution, featuring support for 6Gb/s SATA and 12Gb/s SAS storage and
integrated RAID data protection. With ASUS PIKE cards, you can immediately
improve the storage capacity and performance of RS300-E10-RS4, making it a great
upgrade option.
Quad Intel Gigabit Ethernet
RS300-E10-RS4 features quad server-class Intel Ethernet ports and teaming
support that speed up the network bandwidth and the failover function ensures
uninterrupted network connection. This suits virtualization applications
perfectly which requires ultrafast and reliable network. Optional ASUS PEB
series Ethernet cards are available for networking upgrade.
Comprehensive IT infrastructure management
RS300-E10-RS4 features an optional embedded iKVM module and is bundled with
ASUS Control Center to provide comprehensive out-of-band and in-band management
features for small and mid-size businesses.
The optional ASMB9-iKVM module supports remote BIOS updates, fan control,
standalone KVMs, video recording, and BSOD capture, providing around-the-clock
remote monitoring and diagnostics even if the operating system is down or
offline through a user-friendly, web-based graphical interface that works with
all major browsers.

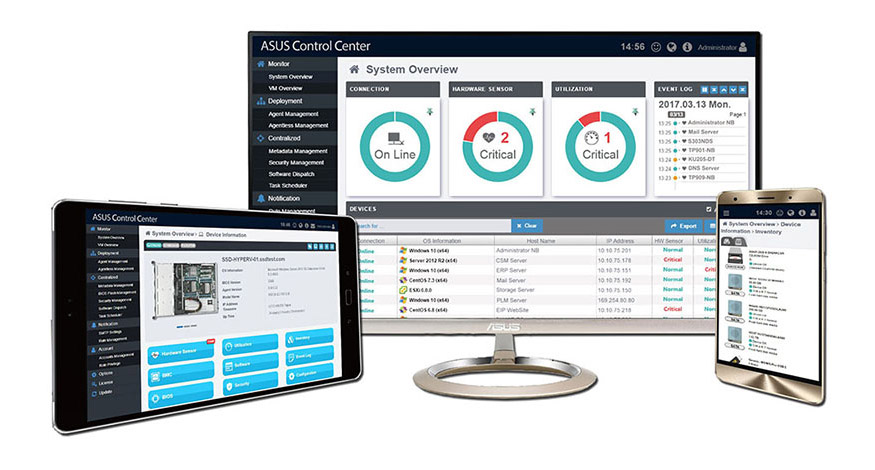

ASUS Control Center (ACC) is a centralized and integrated IT management
platform for monitoring and controlling ASUS commercial products, including
servers, workstations and digital signage. ACC enables remote BIOS updates,
monitoring of multiple systems via mobile devices, and one-click software
updates and dispatching, allowing easier server management for any IT
infrastructure.
Enhanced serviceability
With its power button located on the front I/O panel, RS300-E10-RS4 is
designed to provide easier maintenance and deployment for diverse
applications.
RS300-E10-RS4 has a visible Q-Code/port 80 LED display for simple monitoring
of the entire boot process, from power on through loading of the operating
system.
Quick initialization guidance
RS300-E10-RS4 provides instant system information during initialization as
well as any unusual diagnostic results for more efficient IT operation and easy
troubleshooting.
Specifications
Processor
/ System Bus |
1
x Socket LGA1151 |
|
Intel Xeon processor
E-2100 family |
|
Intel Xeon processor
E-2200 family |
|
The
8th/9th generation Intel Core i3/Pentium/Celeron
Processor |
|
*Refer
to support page for more information |
Generation
|
E10 |
Core
Logic |
Intel
C242 Chipset |
Memory
|
Total
Slots : 4 (2-channel) |
|
Capacity
: Maximum up to 128GB UDIMM |
|
Memory
Type : |
|
DDR4
2666/2400 UDIMM non ECC and with ECC |
|
Memory
Size : |
|
32GB,
16GB, 8GB, 4GB UDIMM |
|
*
Refer to support page for more information |
Expansion
Slots |
Total
PCI/PCI-X/PCI-E/PIKE Slots: 2 |
|
1
x PCI-E x16 (x8 Gen3 Link) |
|
1
x PCI-E x8 (x8 Gen3 Link) |
Storage
|
SATA
Controller : |
|
Intel
C242 Chipset |
|
6
x SATA3 6Gb/s ports *1 |
|
2
x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode
*2 |
|
Intel
Rapid Storage Technology Enterprise(RSTe) (For
Linux/Windows) |
|
(Support
Software RAID 0, 1, 5, 10 ) |
|
SAS
Controller : |
|
ASUS
PIKE II 3008-8i 8-port SAS 12G RAID
card(Optional) |
|
ASUS
PIKE II 3108-8i 8-port SAS 12G HW RAID
card(Optional) |
HDD
Bays |
4
x 3.5 Hot-Swap HDD Bays |
|
2
x SSD Internal SSD Bays |
|
2
x M.2 (NGFF 22110/2280/2260/2242) |
Auxiliary
Storage FDD/CD/DVD |
1
x Slim-type Optical Drive Bay |
|
Options:
No Device / DVD-RW / DVD ROM |
Networking
|
4
x Intel I210AT + 1 x Mgmt LAN |
Graphic
|
Aspeed
AST2500 with 32MB VRAM |
Front
I/O Ports |
2
x USB 3.0 ports |
|
1
x VGA port |
Rear
I/O Ports |
4
x RJ-45 ports |
|
2
x USB 3.1 ports |
|
2
x USB 3.0 ports |
|
1
x VGA port |
|
1
x RJ-45 ports (One for ASMB9-iKVM)(Optional) |
Switch/LED
|
Rear
Switch/LED: |
|
1
x Q-Code/Port 80 LED |
|
1
x Power switch |
|
Front
Switch/LED: |
|
1
x Power switch/LED |
|
1
x Location switch/LED |
|
1
x Reset switch |
|
1
x HDD Access LED |
|
1
x Message LED |
|
LAN
1-4 LED |
OS
Support |
Windows
Server 2019 |
|
Windows
Server 2016 |
|
RedHat
Enterprise Linux |
|
SuSE
Linux Enterprise Server |
|
CentOS |
|
VMware |
|
*Subject
to change without any notice |
Management
Solution |
ASUS
Control Center |
|
Optional
ASMB9-iKVM for KVM-over-IP |
Regulatory
Compliance |
BSMI,
CE, RCM, FCC(Class A) |
Dimensions
|
615mm
x 444mm x 44mm (1U) |
|
24.21"
x 17.48" x 1.73" |
Form
Factor |
1U |
Weight
|
Net
Weight: 12.87 Kg |
|
Gross
Weight: 18.99 Kg |
Power
Supply |
1+1
Redundant 450W 80 PLUS Gold Power Supply |
|
Rating:
100-127Vac/200-240Vac,8A/4A ,47-63Hz, Class 1 |
Environment
|
Operating
temperature: 10C ~ 35C |
|
Non
operating temperature: -40C ~ 70C |
|
Non
operating humidity: 20% ~ 90% ( Non
condensing) |
Note
|
*1
4 by miniSAS HD + 2 x SATA |
|
*2
PCIE or SATA signal, gray SATA port will disable when M.2 is
occupied |
