Deepcool A-RGB Controller
Overview
The DeepCool A-RGB Controller is designed to remotely control addressable RGB
lighting effects simply without having to install any clunky software.
HOW IT WORKS

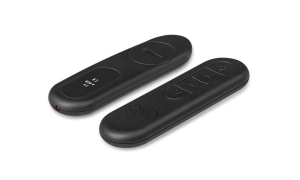

The A-RGB Controller system includes a receiver unit and a magnetic remote
controller to easily attach to any steel case.
Just plug in a 3-pin A-RGB wire and SATA power cable to the receiver and the
remote controller can wirelessly control numerous lighting effect presets.
The remote controller is powered with a 3V button(CR2025) battery (2
included).
THE BACK UP PLAN
Just in case the battery runs out on the remote controller, the receiver unit
features a button to manually switch lighting functions or turn on/off.

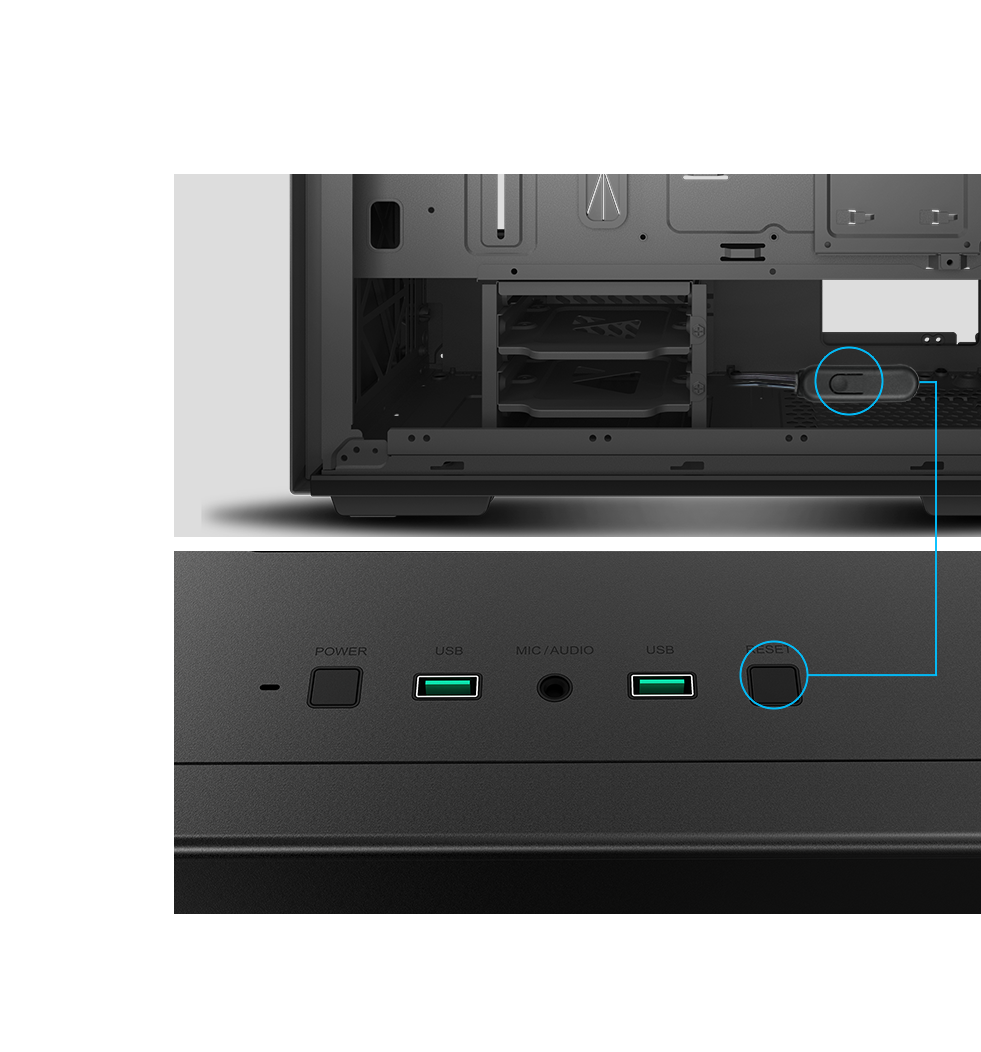

For added functionality, the receiver unit can also be attached to the front
I/O reset button for convenient control outside the case.
WIDELY COMPATIBLE

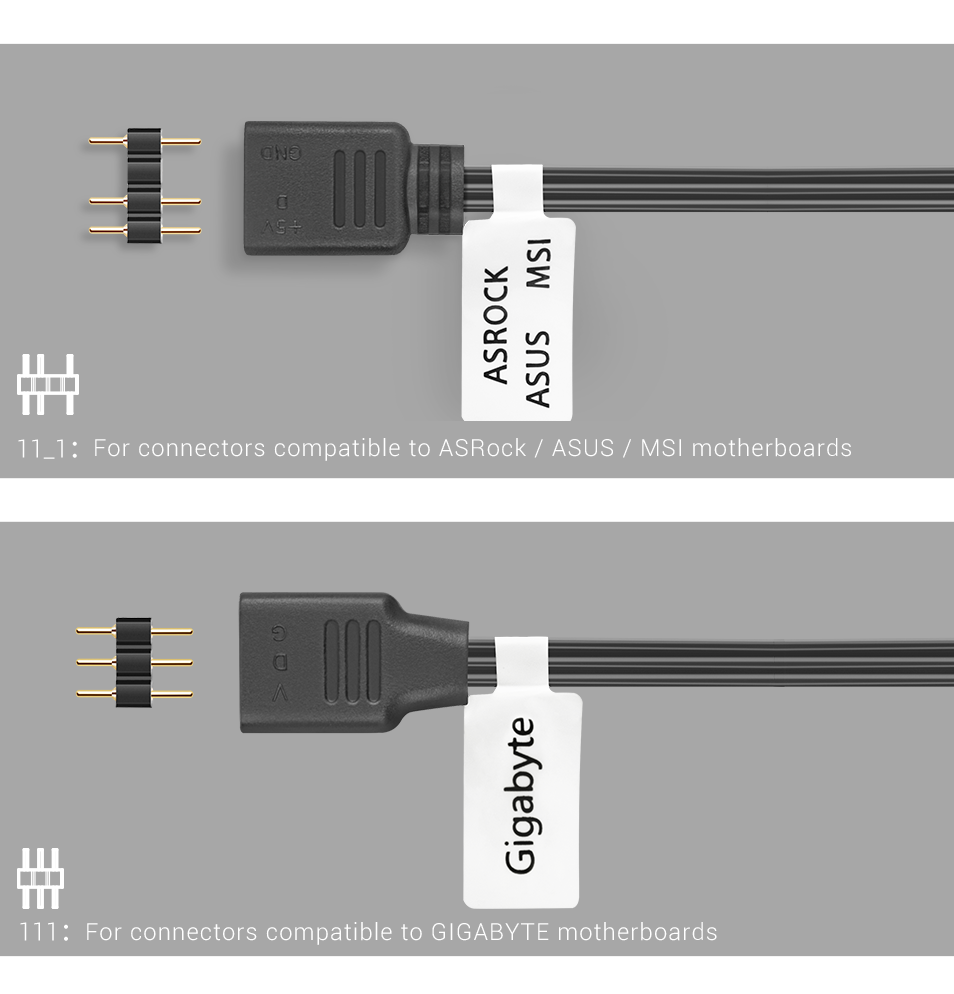

With the included adaptor, the A-RGB Controller can also control any
non-DeepCool A-RGB products that have a standard 3-pin 5V A-RGB connector.
Features
- The control system includes a receiver unit and a magnetic remote
controller
- The remote controller is powered with a 3V button(CR2025)
battery
- 2 button batteries are included in the package.
- The receiver unit features a button for simple control
functions
- The receiver unit can be attached to the front I/O reset button
- Widely compatible to non-Deepcool A-RGB products
Specifications
Product
Dimension |
Remote
Control90x27x9 mm Receiver55x17x8 mm |
Net
Weight |
50
g |
Port
Type |
SATA
5Vx1, 3-pin(+5V-D-G)x1 |
Extension
Port |
2-pin |
Length
of HUB Strip Cable |
SATA
5Vx1400 mm 3-pin(+5V-D-G)x1170 mm |
Mounting
Method |
Magnet |
