IMG 1 of 1
No Longer Available

Part Number:
485020
(?) Brand:
Manuf No:
DK-04FX
DK04FX
Shipping Weight:
40 KG (Includes product packaging)
Estimate Shipping

Enter email address to be notified when this item is available again

Specifications

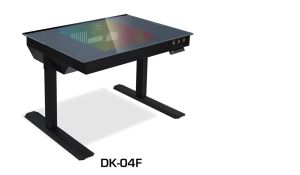

ModelDK-04F
Dimensions(D) 1000mm X (H) 689mm~1175mm (adjustable) X (W) 740mm
switchable glass: (D) 1000mm X (W) 740mm X (T) 8mm
Colorblack
Materialtabletop: switchable glass
exterior: aluminum
interior and legs: iron
Motherboard
compatibility
MINI-ITX/M-ATX/ATX/E-ATX
Removable MB tray1
Expansion slots8
VGA length390mm (maximum)
PSUATX
PSU clearance240mm (maximum)
CPU cooler height185mm (maximum)
Hard drive3.5" HDD X 9 or 3.5" HDD X 6 + 2.5" SSD X 3
Removable drive tray3
I/O Portsfan control buttons X 5
RGB control buttons X 5
power/reset/G (glass effects control)
USB 3.1 (TYPE-C) X 1/USB 3.0 X 4/HD audio
desk height control: ? ? ? ? ? ?M
Fan controllerFAN: press FAN to sync with the motherboard
I/II/III/IIII: fan speed control
RGB controllerRGB:
1. press for 3 secs to switch on/off the RGB
2. press RGB to sync with the motherboard
+ + : light mode control (7 modes)
+ +: light color control
Power Glass controller
reset
POWER
G: glass control (on: transparent; off: opaque)
reset
Desk height control
buttons
?: ascend ?: descend
1 2 3 4 M : 4 free settings allow users to customize and set their preferred sitting/standing heights; press M to memorize the setting.
Radiator supportfront: 480mm/420mm X 1
rear left: 280mm/240mm X 1
Fan supportfront: 140mm X 3 or 120mm X 4
rear left: 140mm/120mm X 2
rear right: 140mm/120mm X 1
Removable
fan/rad bracket
1 X 480mm/420mm
Pump bracketPre-installed in the middle left
LEDs strip3 (LEDs: 50)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base
