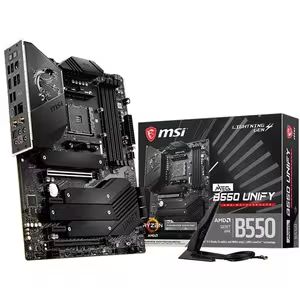

MSI MEG B550 Unify Motherboard
Overview
- Supports AMD Ryzen 5000 & 3000 Series desktop processors (not
compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000
G-Series desktop processors
- Supports DDR4 Memory, Dual Channel 5100(OC) MHz+
- Quadruple M.2 Connectors: Maximum onboard 4x M.2 slots, support the latest
Gen 4 solution with up to 64GB/s bandwidth for maximum transfer
speed.
- Extreme Power Design: Direct 14+2 phases with 90A Power Stage and dual CPU
power connectors to unleash your true power.
- Premium Thermal Solution: Aluminum Cover with additional choke thermal pad
rated for 7W/mk and PCB with 2oz thickened copper are built for high
performance system and non-stop gaming experience.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network
solution for professional and multimedia use. Delivers a secure, stable and
fast network connection.
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2
double-side Shield Frozr, AMD Turbo USB 3.2 GEN 2.
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key
to flash any BIOS within seconds. Restore the BIOS to the default settings
without any additional actions.
- Pre-installed I/O Shield: Better EMI protection and more convenience for
installation.
MASTER THE GAME
The MEG series seeks to transcend current gaming products, the flagship model
designed to push the limits of what an extreme gaming series can be. Combining
the strengths of our existing arsenal with new innovative technology; this
results in significant improvements in operational and gaming efficiency. With
the MEG series, take complete control of performance and personalization with
the ultimate gaming series for enthusiasts who want it all.
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance
motherboards. Our R&D and engineering teams have reviewed countless designs,
evaluated a wide selection of high quality components, and developed products
for reliability even under extreme conditions.
THERMAL SOLUTION FOR MORE CORES AND HIGHER
PERFORMANCE
With more cores processors, thermal and power design is more important to
make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced
circuit design ensures even high-end CPU to run in full speed with MSI
motherboards.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the
latest technology to overwhelm any challenge at hand no matter whether youre a
gamer, prosumer, or PC enthusiast.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers.
Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn
any gaming experience into an immerse one.
Specifications
|
SOCKET |
AMD
Socket AM4 |
|
CPU
(MAX SUPPORT) |
RYZEN
9 |
|
CHIPSET |
AMD
B550 Chipset |
|
DDR4
MEMORY |
4
DIMMs, Dual Channel DDR4-5100(OC) MHz+ |
|
MEMORY
CHANNEL |
Dual |
|
DIMM
SLOTS |
4 |
|
MAX
MEMORY (GB) |
128 |
|
PCI-E
X16 |
2 |
|
PCI-E
X1 |
2 |
|
SATAIII |
6 |
|
M.2
SLOT |
4 |
|
RAID |
0/1/10 |
|
LAN |
Realtek
8125B-CG 2.5G LAN |
|
WIFI
& BLUETOOTH |
Intel
Wi-Fi 6 AX200 |
|
USB
3.2 PORTS (FRONT) |
1(Gen
2, Type C), 2(Gen 1, Type A) |
|
USB
3.2 PORTS (REAR) |
1(Gen
2, Type C), 3(Gen 2, Type A) |
|
USB
2.0 PORTS (FRONT) |
4 |
|
USB
2.0 PORTS (REAR) |
4 |
|
AUDIO
PORTS (REAR) |
5+
Optical S/PDIF (Realtek ALC1220P Codec) |
|
HDMI |
1 |
|
DIRECTX |
12 |
|
FORM
FACTOR |
ATX |
|
CROSSFIRE |
Y |
|
OPERATING
SYSTEM |
Support
for Windows 10
64-bit |
