Aten Dual Rail LCD Console (PS/2-USB, VGA)
Overview

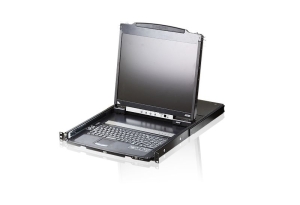

The CL5800 is a LCD KVM console featuring an integrated 19" LED-backlit LCD
panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding
housing.
The CL5800's LCD and keyboard/touch pad modules slide independently of each
other. To maximize space in your data center, the keyboard/touch pad module
slides back to "hide away" when not in use, while the thin profile LCD monitor
rotates back - flush against the rack - allowing convenient monitoring of
computer activity.
For added convenience, ports for an external PS/2 or USB keyboard and mouse
as well as a monitor are provided on the rear panel.
Exclusive LED illumination light - designed by ATEN to illuminate the
keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with a 19" LED-backlit LCD monitor in a dual rail
housing with top and bottom clearance for smooth operation in a 1U high system
rack
- Standard rack mount kit included
- Supports an external console* with either PS/2 or USB
connectors
- Dual interface - Supports computers and KVM switches with PS/2 or USB
keyboards and mice
- Additional hot-pluggable USB mouse port on front panel (also functions as
USB peripheral port)
- Embedded power supply
- High video resolution:
- Up to 1280 x 1024 @75Hz
- Supports DDC, DDC2, DDC2B
- DDC emulation of the LCD monitor
- Video settings of attached computers are automatically adjusted for
optimal output to the LCD monitor
- Standard 105-key keyboard; Sun keyboard emulation
- Dual rail design allows LCD monitor and keyboard/touch pad modules to
operate independently
- Firmware upgradeable
- Supports Microsoft Intellimouse (5 keys)
- Supports Logitech and Microsoft wireless mice
- Optional rack mount kits available including easy installation
options
- Console lock - enables the console drawer to remain securely locked away
in position when not in use
|
Specifications |
|
|
Function |
CL5800N |
|
Computer
Connections |
|
Direct |
1 |
|
Console
Selection |
Hotkey |
|
Connectors |
|
KVM
Ports |
1
x SPHD Female (Yellow) |
|
Firmware
Upgrade |
1
x RJ-11 Female |
|
Power |
1
x IEC 60320/C14 |
|
External
Console Ports |
1
x HDB-15 Female (Blue) |
|
2
x USB Type A Female |
|
1
x 6-pin Mini-DIN Female (Purple) |
|
1
x 6-pin Mini-DIN Female (Green) |
|
External
Mouse / Peripheral |
1
x USB Type A Female (Front) |
|
Switches |
|
Reset |
1
x Semi-recessed Pushbutton |
|
Firmware
Upgrade |
1
x Slide Switch |
|
Power |
1
x Rocker Switch |
|
LCD
Control |
4
x Pushbutton |
|
LCD
Power |
1
x LED Pushbutton |
|
LEDs |
|
Power |
1
x KVM Console (Dark Green) |
|
1
x LCD (Orange) |
|
Lock |
1
x Num Lock (Green) |
|
1
x Caps Lock (Green) |
|
1
x Scroll Lock (Green) |
|
LED
Illumination Light |
1
x LED Illumination Light |
|
Panel
Spec |
|
LCD
Module |
19"
TFT-LCD |
|
Resolution |
1280
x 1024 @ 75 Hz |
|
Response
time |
5
ms |
|
Viewing
Angle |
170
(H), 160 (V) |
|
Pixel
Pitch |
0.294
mm x 0.294 mm |
|
Support
Color |
16.7M
colors |
|
Contrast
Ratio |
1000:01:00 |
|
Luminance |
250
cd/m |
|
Video |
|
Input
Video Resolution |
up
to 1920 x 1200 @ 60Hz; |
|
1280
x 1024 @ 75 Hz, DDC2B |
|
Emulation |
|
Keyboard
/ Mouse |
PS/2,
USB |
|
Maximum
Input Power Rating |
100-240V
AC; 5060Hz; 1A |
|
Power
Consumption |
AC110V:22.2W:115BTU |
|
AC220V:22.9W:118BTU |
|
Environmental |
|
Operating
Temperature |
050C |
|
Storage
Temperature |
-2060C |
|
Humidity |
080%
RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Rail
Type |
Dual
Rail |
|
Weight |
14.27
kg ( 31.43 lb ) |
|
Dimensions
(L x W x H) |
48.00
x 68.04 x 4.40 cm |
|
(18.9
x 26.79 x 1.73 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
