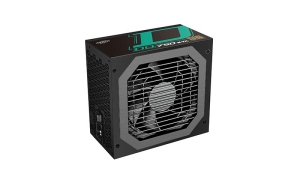

Deepcool DQ750-M-V2L Power Supply Unit



Overview

80 PLUS Gold Certified

Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.

Top-notch Design

Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

Details Discovered

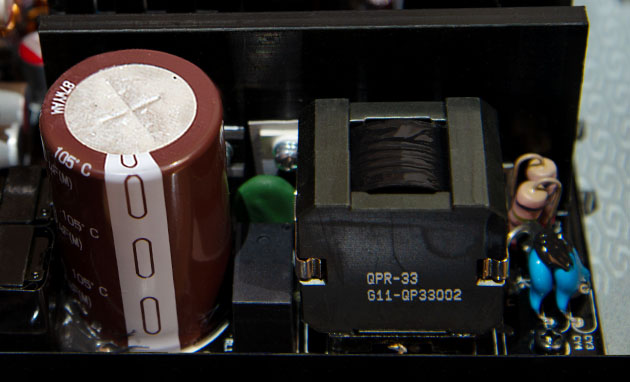

High grade Japanese 105 PFC Boost Capacitor

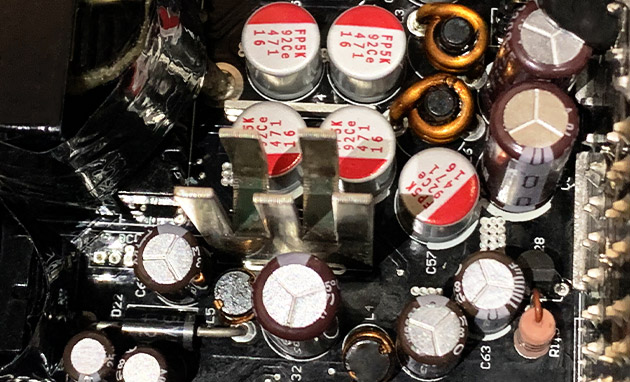

100% Japanese Capacitors

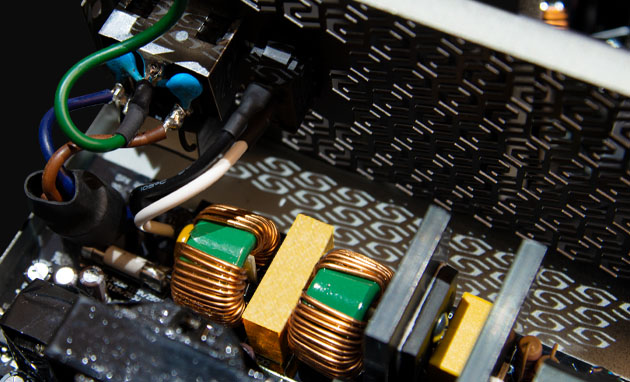

Excellent 1 and 2-stage EMI filter circuit

Highly efficient Active PFC

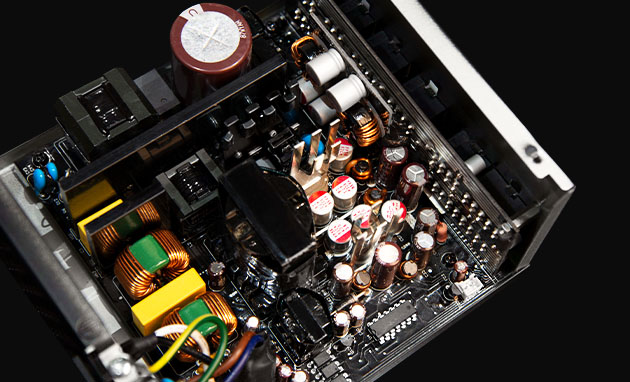

Excellent manufacturing process

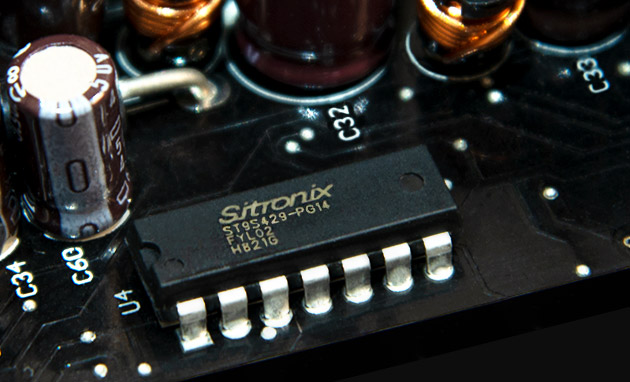

Highly reliable supervisor IC for protections

Fully Modular

Easy cable management with flat cables keep your system clean and tidy. The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.

Features

  • 80 PLUS GOLD certified - Up to 91.2% efficiency
  • 100% High quality Japanese capacitors
  • Full bridge PFC + LLC Resonant converter
  • Fully modular with flat cable design
  • CircuitShield OVP / UVP / SCP / OPP / OTP

Specifications

Model

DQ750-M-V2L

Type

ATX 12V V2.4

Certifications

80PLUS GOLD

Dimension

150x160x86mm (W x L x H)

Output Capacity

750W

Input Voltage

100-240V

Input Current

10.0A

Input Frequency Range

47-63Hz

Fan Size

120mm

PFC

Active

Power Good Signal

100-500ms

Hold Up Time

>16ms (80%  Loading)

Efficiency

>90% Under Typical Load (50%  Loading)

Standby Efficiency

ErP Lot 3 2014

Protection

OVP/UVP/OCP/SCP/OPP/OTP

Operation Temperature

0-40C

Regulatory

CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs

MTBF

100,000 Hours

EAN

6933412798927

P/N

DP-GD-DQ750-M-V2L
