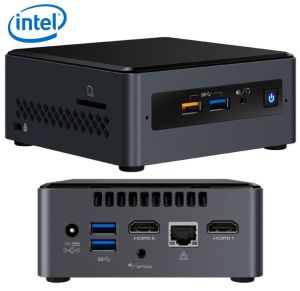

BOXNUC7PJYHN-P | Intel NUC Kit - NUC7PJYHN

Essentials

Product Collection

Intel NUC Kit with Intel Pentium Processors

Code Name

Products formerly JUNE CANYON

Status

Launched

Launch Date

Q2'21

Supported Operating Systems

Windows 10, 64-bit*

Board Number

NUC7JYBN

Board Form Factor

UCFF (4" x 4")

Socket

Soldered-down BGA

Internal Drive Form Factor

2.5" Drive

# of Internal Drives Supported

1

Lithography

14 nm

TDP

10 W

DC Input Voltage Supported

12-19 VDC

Processor Included

Intel Pentium Silver J5005 Processor (4M Cache, up to 2.80 GHz)

Intel vPro Platform Eligibility

No

# of Cores

4

# of Threads

4

Processor Base Frequency

1.50 GHz

Warranty Period

3 yrs

Supplemental Information

Description

Other features: Includes SDXC card slot, no audio codec.

Memory & Storage

Max Memory Size (dependent on memory type)

8 GB

Memory Types

DDR4-2400 1.2V SO-DIMM

Max # of Memory Channels

3

Max Memory Bandwidth

38.4 GB/s

Max # of DIMMs

2

ECC Memory Supported

No

Processor Graphics

Integrated Graphics

Yes

Graphics Output

2x HDMI 2.0a

# of Displays Supported

2

Expansion Options

Removable Memory Card Slot

SDXC with UHS-I support

I/O Specifications

# of USB Ports

6

USB Configuration

2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers

USB Revision

2.0, 3.0

USB 2.0 Configuration (External + Internal)

0 + 2

USB 3.0 Configuration (External + Internal)

2B 2F + 0

Total # of SATA Ports

1

Max # of SATA 6.0 Gb/s Ports

1

Audio (back channel + front channel)

7.1 digital

Integrated LAN

Realtek 8111H-CG

Integrated Wireless

Intel Wireless-AC 9462 + Bluetooth 5.0

Integrated Bluetooth

Yes

Consumer Infrared Rx Sensor

Yes

Additional Headers

CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL

Package Specifications

Chassis Dimensions

115 x 111 x 51mm

Advanced Technologies

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel vPro Platform Eligibility

No

TPM

No

Intel Platform Trust Technology (Intel PTT)

Yes

Security & Reliability

Intel AES New Instructions

Yes
