All stock codes associated to this product
MLXD24MA18P2R1, MLX-D24M-A18P2-R1, II347650, 884102082672

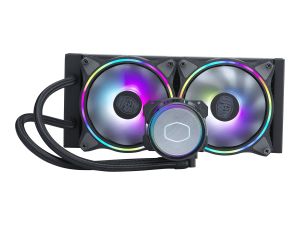

Coolermaster MasterLiquid ML240 Illusion CPU Cooler -
Black
Overview
- Translucent Dome
- Optimized Dual Chamber Pump
- Expanded Dissipation Surface Area
- MasterFan MF120 Halo
- MasterPlus+ Software
SEE IT TO BELIEVE IT
The MasterLiquid ML-Illusion series redefines lighting visuals with all new
design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs
integrated into the all new translucent pump, the color options are
spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting
features are more than even visual enthusiasts can handle. The Illusion is not
only elegant, but extremely capable as well, featuring the 3rd generation Dual
Chamber Pump for excellent cooling performance.
TRANSLUCENT DOME
Stunning lighting visuals with translucent water chamber dome and rotatable
logo. Compatible with software customization
NEW 3RD GEN DUAL CHAMBER PUMP
Experience a quieter cooling performance with an improved design on the
internal impeller and housing to enhance the cooling performance and efficiency
while lowering the noise level.
EXPANDED DISSIPATION SURFACE AREA
Widened radiator water channels for increased cooling surface
area.
MASTERFAN MF120 HALO
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully
Customizable with MasterPlus+ software to ensure the most vibrant display of
color
NEW ADDRESSABLE GEN 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master's
MasterPlus+ software Customizing each individual LED in color, effect,
brightness, and more - all from an intuitive, convenient interface
Specifications
|
PRODUCT
NUMBER |
MLX-D24M-A18P2-R1 |
|
EXTERIOR
COLOR |
Black |
|
CPU
SOCKET |
LGA2066,
LGA2011-v3, LGA2011, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM4,
AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
|
RADIATOR
MATERIAL |
Aluminum |
|
RADIATOR
DIMENSIONS |
277
x 119.6 x 27.2 mm / 10.9 x 4.7 x 1.1 inch |
|
PUMP
DIMENSIONS |
81.4
x 76 x 57.8 mm / 3.2 x 3 x 2.3 inch |
|
PUMP
MTTF |
70,000
Hours |
|
PUMP
NOISE LEVEL |
<
10 dBA |
|
PUMP
CONNECTOR |
3-Pin |
|
PUMP
RATED VOLTAGE |
12
VDC |
|
PUMP
POWER CONSUMPTION |
2.36
W |
|
FAN
DIMENSIONS (L X W X H) |
120
x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
|
FAN
QUANTITY |
2
PCS |
|
FAN
LED TYPE |
Addressable
Gen 2 RGB |
|
FAN
SPEED |
650-1800
RPM 10% |
|
FAN
AIRFLOW |
47.2
(Max) |
|
FAN
NOISE LEVEL |
6
- 30 dBA |
|
FAN
PRESSURE |
1.60
mmHO (Max) |
|
FAN
LIFE EXPECTANCY |
160,000
Hours |
|
FAN
POWER CONNECTOR |
4-Pin
(PWM) |
|
FAN
RATED VOLTAGE |
12VDC |
|
FAN
RATED CURRENT |
0.25A |
|
RAM
CLEARANCE |
N/A |
|
WARRANTY |
3
years |
|
SERIES |
MasterLiquid |
|
COOLER
TYPE |
Liquid
Cooler |
|
RADIATOR
SIZE |
240 |
