All stock codes associated to this product
S251BRU33, 2910126, II67940
Startech Rugged Hard Drive Enclosure - USB 3.0 to 2.5in SATA 6Gbps
HDD or SSD - UASP - Black
Overview
This rugged drive enclosure redefines data protection for on-the-go
professionals. The military-grade construction protects your sensitive data from
harsh field conditions. It makes sure youre equipped for unexpected challenges
with a ruggedized water, dust, vibration and shock resistant
enclosure.
Industry recognized protection against water and dust, with an IP54
rating

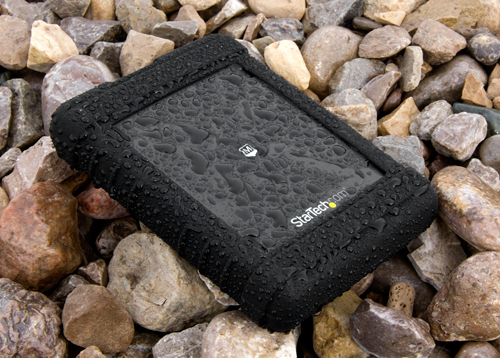

Rugged enclosure sitting outdoors on a rock bed in the rain
Keep your data safe and secure even through sudden downpours or dust storms.
The robust enclosure provides superior water and dust resistance with an IP54
rating.
Drop tested for 4 meters (13 feet)
The rugged drive enclosure is enveloped in a silicone protective sleeve, and
engineered to help protect your drive from accidental and unexpected shock,
vibrations, and drops. Its Military MIL-STD-810G rated and test-proven to
withstand drops of up to 4 meters (13 feet). It was drop tested using a
solid-state drive in the enclosure.

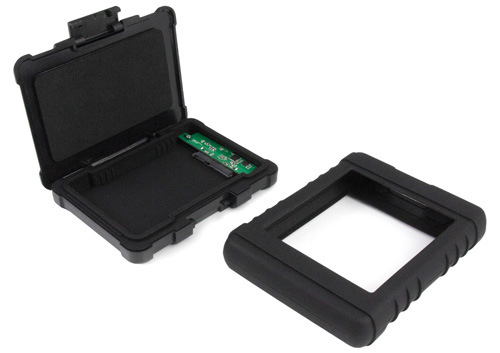

Data protection inside and out
Wherever you go, the rugged drive enclosure delivers reliable data
protection, inside and out. The tough-wearing exterior casing provides
shock-resistance, while the flexible silicone sleeve hugs the entire perimeter
to ensure an extra measure of protection, absorbing the impact of accidental
bumps, rough baggage handling or drops. Inside, an extra layer of silicone
provides added drive stability.
Install your drive with ease, with a tool-less
design
Its easy to turn your 2.5in SATA III (6Gbps) solid-state drive or hard drive
into external storage. Simply remove the silicone sleeve, open the latch to
insert your 2.5" drive into the rugged enclosure, and plug the included USB
cable into the computer or hub USB port. There are no screws or tools
needed.
70% faster than traditional USB 3.0, with
UASP
Save time in the field, by storing and transferring content quickly. Enhanced
with UASP (USB Attached SCSI Protocol), this rugged drive enclosure performs
with a 70% faster read speed and 40% faster write speed over conventional USB
3.0, when paired with a UASP-enabled host controller.
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In
testing UASP performs with a 70% faster read speed and 40% faster write speed
over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required
processor resources.
Testing results were obtained using an Intel Ivy Bridge system, a UASP
enabled StarTech.com enclosure, and a SATA III (6Gbps) solid state
drive.
The S251BRU33 is backed by a StarTech.com 2-year warranty and free lifetime
technical support.
Specifications
|
Compatibility |
OS
independent; No software or drivers required |
|
Warranty
Information |
|
|
Warranty |
2
Years |
|
1
- Connector A |
SATA
Data & Power Combo (7+15 pin) |
|
1
- Connector B |
USB
3.0 Micro-B (10 pin, SuperSpeed) |
|
Connector(s) |
|
|
1
- Drive Connectors |
SATA
Data & Power Combo (7+15 pin) |
|
1
- Host Connectors |
USB
3.0 Micro-B (10 pin, SuperSpeed) |
|
Environmental |
|
|
Operating
Temperature |
-40C
to 85C (-40F to 185F) |
|
Storage
Temperature |
-40C
to 85C (-40F to 185F) |
|
Humidity |
20%
~ 95% RH |
|
Hardware |
|
|
Interface |
USB
3.0 |
|
Bus
Type |
USB
3.0 |
|
Industry
Standards |
MIL-STD-810G,
Method 503.5 (Thermal Shock) |
|
MIL-STD-810G,
Method 514.6 (Vibration) |
|
MIL-STD-810G,
Method 516.6 (Shock) |
|
MIL-STD-810G,
Method 507.5 (Humidity) |
|
MIL-STD-810G,
Method 509.5 (Salt Spray) |
|
MIL-STD-810G,
Method 510.5, Procedure I (Sand and Dust) |
|
MIL-STD-810G,
Method 508.6 (Fungus) |
|
Number
of Drives |
1 |
|
Drive
Size |
2.5in |
|
Compatible
Drive Types |
SATA |
|
Drive
Installation |
Fixed |
|
Number
of 2.5 inch bays |
1 |
|
Supported
Drive Height(s) |
7mm |
|
9.5mm |
|
Chipset
ID |
ASMedia
- ASM1153E |
|
Indicators |
|
|
1
- LED Indicators |
Diagnostic
LED (Drive Power and Activity) |
|
Packaging
Information |
|
|
Package
Height |
2.2
in [57 mm] |
|
Package
Length |
7.2
in [18.3 cm] |
|
Shipping
(Package) Weight |
14.2
oz [402 g] |
|
Package
Width |
5.5
in [13.9 cm] |
|
Performance |
|
|
Maximum
Data Transfer Rate |
5
Gbps |
|
Type
and Rate |
USB
3.0 - 5 Gbit/s |
|
UASP
Support |
Yes |
|
TRIM
Support |
Yes |
|
4Kn
Support |
Yes |
|
Type
and Rate |
SATA
III (6 Gbps) |
|
Max
Drive Capacity |
Tested
up to 2TB at 7200 RPM |
|
Hot
Swap Capability |
Yes |
|
Physical
Characteristics |
|
|
Color |
Black |
|
Cable
Length |
4.1
in [10.3 cm] |
|
Product
Length |
5.6
in [14.3 cm] |
|
Product
Width |
4.4
in [11.2 cm] |
|
Product
Height |
1.1
in [29 mm] |
|
Weight
of Product |
9.4
oz [265 g] |
|
Power |
|
|
Power
Source |
USB-Powered |
|
Software |
|
|
OS
Compatibility |
OS
independent; No software or drivers required |
|
Special
Notes / Requirements |
|
|
Note |
Windows
7 and earlier Windows versions do not support TRIM with USB to SATA
devices. |
|
What's
in the Box |
|
|
1
- Included in Package |
USB
3.0 rugged 2.5in enclosure |
|
USB
3.0 cable |
|
Foam
pad for 7mm drives |
|
Instruction
manual |
