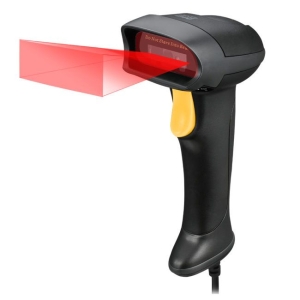

Adesso NuScan 2500TU Spill Resistant Antimicrobial 2D Barcode
Scanner
Overview
The Adesso NuScan 2500TU is compatible with a wide range of 1D and 2D barcode
symbologies. The NuScan 2500TU is completely plug and play, making it extremely
reliable. This makes it ideal in many different applications. The scanner is
also made with antimicrobial substances which helps keep away germs and viruses.
The spillproof feature also ensures that fluids from accidental spills wont stay
inside the device. With extra protective design such as the drop protection, the
device is less likely to become damaged from accidental drops. Last but not
least, compatible with major 2D barcodes(PDF 417, QR Codes, Micro QR Codes, and
Data Matrix), and with 1D barcodes like UPC-A, Code 39, Code 128, and more), the
NuScan 2500TU is great for your scanning needs.
2D Scanning Engine
The 2D scanning engine offers decoding capability for 2D barcodes like
PDF417, QR Code, and Data Matrix as well as common 1D barcodes such as Code 128,
EAN8/13, ISSN, ISBN, UPC-A/E, Code 25 (ITF/Matrix/Industrial/Standard), ITF
6/14, Code 39, Code 39 Full ASCII, Codabar, Code 93, Code 11, Plessy, MSI
Plessy, GS1 DataBars (Omnidirectional, Stacked Omnidirectional, Expanded,
Expanded Stacked, Stacked, Limited, Truncated).
Antimicrobial
The scanner is made with antimicrobial substances to keep away germs and
viruses. With regular cleaning, the scanner will undoubtedly maintain your
environmental hygiene.
Spill Resistant
The scanners spill resistant design helps to prevent fluids from staying
inside, which would otherwise cause damage to the scanner.
Superior Scanning Performance
Equipped with its CMOS sensor the device has a motion tolerance of 5 inches
per second, offering fast and accurate scanning results.
Drop Protection
With its drop protection design, the NuScan 2500TU less likely to become
damaged due to accidental drops.
Long Scanning Range
The 2D CMOS decoding engine is able to scan barcodes up to 12 inches scan
depth.
.jpg)
2D Common Uses
.jpg)
1D Common Uses
Specifications
|
Mechanical |
|
|
Dimensions
(L x W x H) |
6.75
(L) x 3.7 (W) x 2.7 (H) in. (172 x 94 x 68 mm) |
|
Weight |
0.38
lbs (174g cable excluded) |
|
Cable
Length |
5
(1.5meters) |
|
Electrical |
|
|
Power
Input voltage |
3.3
5% VDC |
|
Working
Current |
132
13mA (at maximum) |
|
Light
Source |
650
10 nm visible red LED |
|
Performance |
|
|
Interface |
USB |
|
Sensor |
CMOS
Sensor |
|
Minimum
Bar Width (1D) |
5
mil/0.127 mm @ PCS 90%, Code 39 |
|
Minimum
Bar Width (2D) |
10
mil/0.254 mm @ PCS 80%, Data Matrix. |
|
Depth
of Field |
0-12
inches (@20mil EAN-13, PC 100%) |
|
Motion
Tolerance |
5
inches per second (IPS) |
|
Scan
Angle |
Roll
360, Pitch 45, Yaw 40 |
|
Print
Contrast |
PCS
30% EAN13 @10mil |
|
Alert
Operation |
LED
light indicator and beeper |
|
Environmental |
|
|
Operating
Temperature |
-20C
to 50C (-4F to 122F) |
|
Storage
Temperature |
-40C
to 70C (-40F to 158F) |
|
Operating Humidity
|
20%
~ 95% (non-condensing) |
|
Storage
Humidity |
5%
to 95% (non-condensing) |
|
Shock
Resistance |
Withstanding
1.5m freefall drops |
|
Regulatory |
FCC,
CE RoHS |
System Requirements
- Windows2000 / XP / Vista / 7 / 8 / 10
- Mac OS X
- Interface: USB
Includes
- Adesso NuScan 2500TU Spill Resistant Antimicrobial 2D Barcode
Scanner
- Quick Start Guide
