Adesso NuScan 4100B Bluetooth Antimicrobial Waterproof CCD

Adesso NuScan 4100B Bluetooth Antimicrobial Waterproof CCD Barcode Scanner - Black

Overview

The NuScan 4100 is a industrial, waterproof, antimicrobial, highly portable barcode scanner designed to simplify your job and increase productivity. Offering a wide scanning range from multiple symbologies from up to 30 ft away the NuScan 4100 makes an excellent choice for delivering intuitive and rapid scanning regardless of the environment!

Bluetooth Wireless Technology with Charging Cradle Take your Nuscan 4100 within a 30 foot range of your Android, or Windows computer and scan barcodes freely without the hassle of tangled cords. After hours of scanning use, place the scanner on the cradle for charging convenience and never worry about replacing batteries.

Antimicrobial The Nuscan 4100 is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs between washings.

Waterproof IP67 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IPX67 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a 3 ft depth.

Superior CCD Sensor with Scanning Performance at 200 Scans Per Second Its CCD sensor can scan the majority of 1D symbologies at a comfortable distance of up to 12 away.The 200 scans per second rate offers fast and accurate scanning results for faster productivity and reliability. The CCD sensor allows a wider and longer scan field of up to 12 away capable of scanning under a light level of 100,000 lux.

Drop Protection With the scanners CCD sensor engine and durable silicone plastic material, it makes the Nuscan 4100 less likely to become damaged due to accidental drops from as high as 20ft off the ground.

Charging Cradle Take your Nuscan 4100 within a 30 foot range of your Android, or Windows computer and scan barcodes freely without the hassle of tangled cords. After hours of scanning use, place the scanner on the cradle for charging convenience and never worry about replacing batteries.

Specifications

Operational

• Light Source: 630 nm visible red LED
• Microprocessor: 32 bit
• Depth of Field: 0 12 inches (UPC/EAN 100%, PCS=90%)
• Scan Angle: 42
• Scan Rate: 200 scans per second
• Minimum Bar Width: 0.1 mm Code 39, PCS=90%)
• Print Contrast: Min. 25% @ UPC/EAN 100%
• Indicators (LED): Blue LED successful scan / Red scanning beam
• Alert Operation: Programmable tone & beep time
• Communication: Bluetooth 3.0 Compliant
• Scanning Rage (Open Area): 10 m / 30 ft

Electrical / Power Specifications

• Input Voltage: 3.3 4.2 VDC 0.5V
• Battery Type: Polymer Rechargeable Battery
• Charge Time: 2~2.5 hours
• Scans Per Charge: 25,000 scans when fully charged

Regulatory

• EMC : CE & FCC DOC compliance, VCCI, BSMI
• Operating Current: 140 mA10mA

Physical

• Dimensions: 7" x 4" x 2.75" inches (178 x 100 x 70 mm)
• Weight: 0.60 lb (260 g; cable excluded)
• Cable: 6 ft (2m)

Environmental

• Operating Temperature: 0C ~ 50C (32F ~ 122F)
• Storage Temperature: -40C ~ 70C (-40F ~ 70F)
• Humidity: 5% ~ 95% RH (non-condensing)
• Shock: Designed to withstand an impact force of 2000g & drops of up to 20 ft

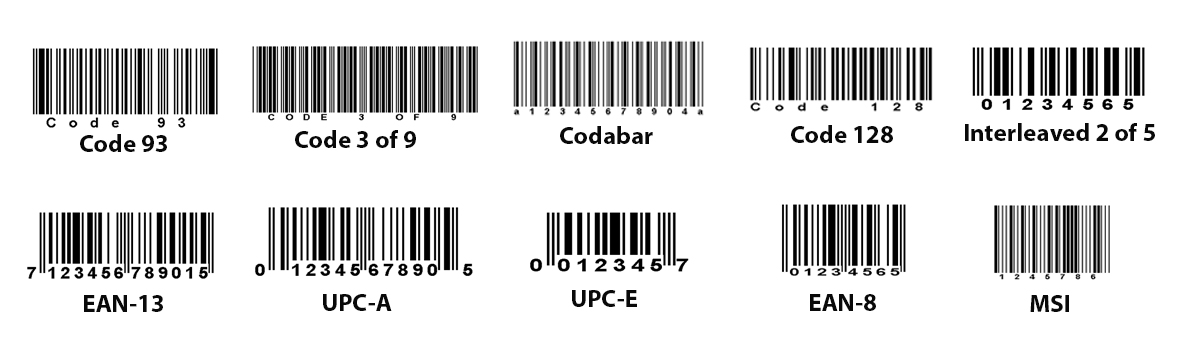

Supported Symbologies

• UPC Version A & E
• EAN-8, EAN-13
• JAN-8, JAN-13
• Code 39
• Code 32
• Codabar
• Interleave 2 of 5 (ITF 2/5)
• Code 128 & EAN-128
• Code 93
• MSI/Plessey
• Industrial 2 of 5

System Requirements

• Windows2000 / XP / Vista / 7 / 8 / 10
• Andriod
• Bluetooth receiver or enabled device
• USB port for Charging Cradle

Includes:

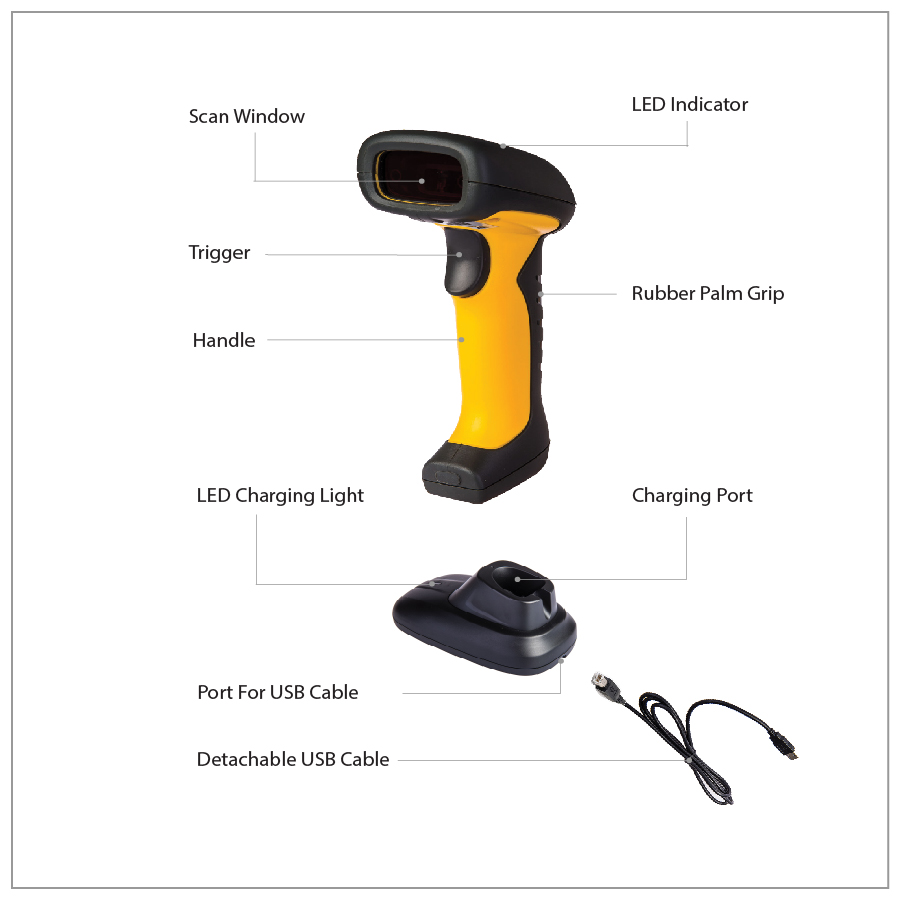

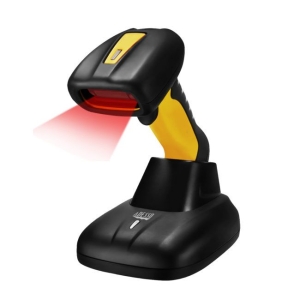

• Adesso NuScan 4100B Bluetooth Antimicrobial Waterproof CCD Barcode Scanner with Charging Cradle
• Quick Start Guide
