All stock codes associated to this product
DP2HD4K60S, 3493573

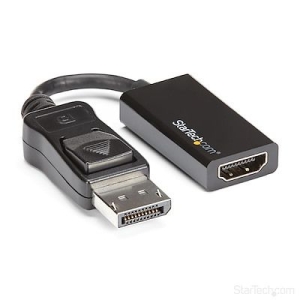

Startech DisplayPort to HDMI Adapter - 4K 60Hz Active DP 1.4 to HDMI
2.0 Video Converter - DP to HDMI Monitor/TV/Display Cable Adapter Dongle -
Latching DP Connector
Overview
This DisplayPort to HDMI adapter lets you output HDMI video and audio from a
DP device, with support for Ultra HD 4K at 60Hz.
Astonishing picture quality with support for Ultra HD 4K at 60
Hz
The adapter lets you harness the video capabilities that are built into your
DisplayPort connection, to deliver the astonishing quality of UHD to your 4K
60Hz display. This makes it easier for you to multitask while using multiple
monitors to work on resource-demanding applications.
Unlike many 4K DisplayPort to HDMI adapters that only support a 30Hz refresh
rate, this adapter works with HDMI 2.0 displays that can deliver output
resolutions of up to 3840 x 2160p at 60Hz. Support for HDMI 2.0 means this
adapter can support bandwidth up to 18Gbps, making it the ideal solution for
performing high-resolution tasks such as editing 4K video.
The adapter is backward compatible with 1080p displays, which ensures that it
will work with lower resolution displays such as TVs or projectors around your
home or office.
Ultimate portability with a compact, lightweight
design
The compact video adapter is highly portable and lightweight. It's the
perfect accessory for your portable DP devices, fitting easily into your laptop
bag or carrying case.
The portable adapter is a convenient addition when deploying company
computers because it enables your employees to interface with BYOD (Bring Your
Own Device) HDMI applications around the office, such as working at a hot-desk
with an HDMI display or sharing your laptop's screen on a boardroom
projector.
Hassle-free setup with an active adapter that features plug-and-play
installation
To ensure compatibility with any DisplayPort output, the DP adapter offers
active conversion. Active video conversion is required to maintain 4K
resolutions when converting DisplayPort to HDMI. An active DP adapter is ideal
for outputting 1080p resolutions because it will work with graphics cards that
can't output multimode DP++ signals, such as ATI Eyefinity cards.
For a hassle-free setup, the DisplayPort to HDMI adapter allows for
plug-and-play installation without any additional software or
drivers.
Note: To achieve 4K resolution at 60 Hz, a DisplayPort 1.4 output and an HDMI
2.0 display are required.
The DP2HD4K60S is backed by a 3-year StarTech.com warranty and free lifetime
technical support.
Specifications
|
Warranty
Information |
Warranty |
3
Years |
|
Connector(s) |
1
- Connector A |
DisplayPort
(20 pin) |
|
1
- Connector B |
HDMI
(19 pin) |
|
Environmental |
Operating
Temperature |
5C
to 35C (41F to 95F) |
|
Storage
Temperature |
-25C
to 70C (13F to 149F) |
|
Humidity |
-25C
to 85C (77F to 185F) at 80% - 95% |
|
Hardware |
Active
or Passive Adapter |
Active |
|
AV
Input |
DisplayPort
- 1.4 |
|
Ports |
1 |
|
AV
Output |
HDMI
- 2.0 |
|
Audio |
Yes |
|
Industry
Standards |
DPCP
(DisplayPort Content Protection) |
|
HDCP
2.2 (High Definition Content Protection) |
|
DisplayPort
1.4 |
|
HDMI
2.0 |
|
Chipset
ID |
Parade
- PS176 |
|
Packaging
Information |
Package
Height |
0,6
in [14,0 mm] |
|
Shipping
(Package) Weight |
1,2
oz [33,0 g] |
|
Package
Width |
7,9
in [20,0 cm] |
|
Performance |
Audio
Specifications |
HDMI
- 7.1 Channel Audio |
|
Maximum
Cable Distance To Display |
23,0
ft [7 m] |
|
Maximum
Digital Resolutions |
4K
x 2K @ 60 Hz |
|
Supported
Resolutions |
4k
x 2K (Ultra HD) @ 60 Hz |
|
1920x1200 |
|
1920x1080
(1080p) |
|
1280x720
(720p) |
|
Wide
Screen Supported |
Yes |
|
Physical
Characteristics |
Weight
of Product |
0,8
oz [24,0 g] |
|
Color |
Black |
|
Material |
Plastic |
|
Cable
Length |
4,2
in [10,8 cm] |
|
Product
Length |
8,5
in [21,5 cm] |
|
Product
Width |
7,7
in [19,5 cm] |
|
Product
Height |
0,4
in [10,0 mm] |
|
Special
Notes / Requirements |
Note |
This
video adapter is not compatible with cables that use RedMere
technology. |
|
What's
in the Box |
1
- Included in Package |
DisplayPort
to HDMI adapter |
