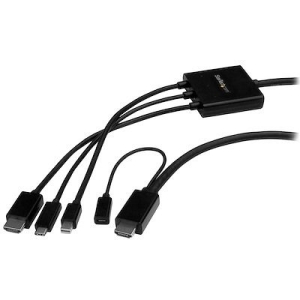

Startech USB-C, HDMI or Mini DisplayPort to HDMI Converter Cable - 2
m (6 ft.)
Overview
This unique adapter cable lets you connect almost any laptop or desktop
computer to an HDMI display or projector. It supports the USB-C, HDMI and Mini
DisplayPort output from your computer, and video resolutions up to Ultra HD
4K.
The adapter is compatible with your DP alt mode computer. DP alt mode means
your computer can pass a DisplayPort video signal through the USB-C
port.
Simple boardroom setup
This adapter cable is ideal for your boardrooms HDMI display or projector.
You can reduce clutter and eliminate the need for multiple adapters on your
boardroom table by providing a single adapter cable that can support a variety
of signals.
One adapter for multiple users
The adapter cable supports multiple input signal types, so youll be able to
accommodate a variety of user needs. Employees and guests can plug in their USB
Type-C, HDMI or mDP laptops and deliver their presentations using your
boardrooms HDMI display, without having to carry their own
adapters.
Astonishing picture quality
This adapter cable ensures you can maintain an astonishing picture quality
with four times the resolution of 1080p. The adapter is also backward compatible
with lower resolution displays and video sources. With support for
high-definition resolutions of 1080p and 720p, you can future-proof your
existing setup for 4K video.
USB-powered
The adapter can be powered through the provided Micro-USB cable by connecting
the cable from the adapter to a USB port on your laptop or the HDMI display. You
can connect your laptop to either input on the adapter cable, and share
presentations.
The CMDPHD2HD is backed by a 3-year StarTech.com warranty and free lifetime
technical support.
Note: Your USB-C equipped device must support video to work with this
adapter.
Specifications
|
Warranty
Information |
Warranty |
3
Years |
|
Connector(s) |
1
- Connector Type(s) |
USB
Micro-B (5 pin) |
|
1
- Connector B |
HDMI
(19 pin) |
|
1
- Connector A |
Mini-DisplayPort
(20 pin) |
|
|
HDMI
(19 pin) |
|
|
USB-C
(24 pin) DisplayPort Alt Mode |
|
Environmental |
Operating
Temperature |
0C
to 60C (32F to 140F) |
|
Storage
Temperature |
-10C
to 80C (14F to 176F) |
|
Humidity |
5%
~ 90% RH |
|
Hardware |
Active
or Passive Adapter |
Passive |
|
AV
Input |
USB-C |
|
|
Mini-DisplayPort |
|
AV
Output |
HDMI |
|
AV
Input |
HDMI |
|
Audio |
Yes |
|
Packaging
Information |
Package
Height |
2.6
in [67.0 mm] |
|
Package
Length |
8.7
in [22.1 cm] |
|
Shipping
(Package) Weight |
16.9
oz [478.0 g] |
|
Package
Width |
4.8
in [12.2 cm] |
|
Performance |
Wide
Screen Supported |
Yes |
|
Physical
Characteristics |
Color |
Black |
|
Cable
Length |
6.6
ft [2 m] |
|
Product
Length |
6.6
ft [2.0 m] |
|
Product
Width |
2.4
in [60.0 mm] |
|
Product
Height |
0.6
in [15.0 mm] |
|
Weight
of Product |
7.8
oz [222.0 g] |
|
Power |
Power
Source |
USB-Powered |
|
Special
Notes / Requirements |
System
and Cable Requirements |
Your
USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to
work with this adapter. |
|
What's
in the Box |
1
- Included in Package |
2m
USB-C, HDMI or mDP to HDMI Converter Cable |
|
|
2m
Micro USB cable |
|
|
instruction
manual |
