All stock codes associated to this product
ARMPIVOTHD, 3587610

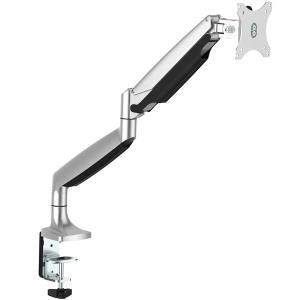

Startech Single Desk-Mount Monitor Arm - Full Motion - Articulating -
Silver
Overview
Free up space while creating a more comfortable and productive work
environment. This desk-mount monitor arm makes it easy to mount your VESA mount
(75x75, 100x100) display above your desk or table and adjust the height with one
touch for ideal viewing. Its sleek silver finish enhances the aesthetics of your
workspace.
Mount your Monitor to Save Valuable Space
This heavy-duty aluminum monitor arm helps you save space, by securely
mounting a computer monitor from 13" to 34" in size and up to 19.9 lb. (9 kg) in
weight. It's ideal for many different office applications, such as healthcare or
financial settings, shared workspaces, or when you wish to show your display to
clients or colleagues.
Easy One-Touch Height Adjustment
The single monitor arm provides one-touch height adjustment, with a
gas-spring cylinder that makes it easy to raise or lower your display. Adjust
the tension according to the weight of your monitor, so you can re-position the
monitor height effortlessly. The monitor mount provides 13.1" (335 mm) of height
adjustment.
Adjust your Monitor Easily
The full-motion articulating arm makes it easy to find the right viewing
angle. Swivel your monitor 180 degrees to share your display. The articulating
arm also supports 180-degree rotation, for landscape or portrait orientation.
For comfortable viewing, tilt your screen +90 to -90 degrees.
Durable Construction and Easy Installation
Made of aluminum, the single monitor mount requires minimal assembly and is
easy to install with the desk clamp or grommet mount. A detachable VESA mount
panel makes it simple to attach or remove your monitor. Built-in cable
management helps keep your cables organized.
The ARMPIVOTHD is backed by a StarTech.com 5-year warranty and free lifetime
technical support.
Specifications
|
Warranty
Information |
Warranty |
5
Years |
|
Hardware |
Articulating |
Yes |
|
Cable
Management |
Yes |
|
#
of Displays Supported |
1 |
|
Mounting
Options |
Desk
& Grommet Clamp |
|
Wallmountable |
No |
|
VESA
Hole Pattern(s) |
75x75
mm |
|
|
100x100
mm |
|
Mounting
Surface Thickness |
Desk
Clamp: Table Thickness 0.39 - 3.34 in. (10 - 85
mm) |
|
Grommet
Clamp: Table Thickness 0.39 - 3.14 in. (10 - 80
mm) |
|
Grommet
Mount Hole Size: 0.41 - 1.96 in. (10.5 - 50
mm) |
|
Packaging
Information |
Package
Height |
4,4
in [11,3 cm] |
|
Package
Length |
19,5
in [49,5 cm] |
|
Shipping
(Package) Weight |
9,9
lb [4,5 kg] |
|
Package
Width |
12,6
in [32,0 cm] |
|
Performance |
Weight
Capacity (Per Display) |
19,9
lb [9 kg] |
|
Minimum
Display Size |
13" |
|
Maximum
Display Size |
34" |
|
Fits
Curved Display |
Yes |
|
Fits
UltraWide Displays |
Yes |
|
Minimum
Height |
6,7
in [17 cm] |
|
Maximum
Height |
19,9
in [50,5 cm] |
|
Maximum
Arm Extension |
23,8
in [60,5 cm] |
|
Display
Tilt |
+90
/ - 90 |
|
Swivel
/ Pivot |
180 |
|
Display
Rotation |
180 |
|
Physical
Characteristics |
Weight
of Product |
6,8
lb [3,1 kg] |
|
Color |
Silver |
|
Material |
Aluminum |
|
Product
Length |
3,8
in [96,0 mm] |
|
Product
Width |
11,2
in [28,4 cm] |
|
Product
Height |
20,8
in [52,9 cm] |
|
Special
Notes / Requirements |
Note |
This
mount supports monitors up to 34, including flat screen, curved and
ultrawide displays, with a max weight of 19.9 lb. (9 kg). If you choose to
use an ultrawide display in portrait position, the mount supports
ultrawide displays with a max width of 35" (88.9
cm). |
|
What's
in the Box |
1
- Included in Package |
spring
arm |
|
|
VESA
monitor mount |
|
|
grommet
base plate |
|
|
grommet
plate |
|
|
L
bracket |
|
|
desk
clamp |
|
5
- Included in Package |
clamp
screws |
|
1
- Included in Package |
grommet
knob |
|
2
- Included in Package |
rubber
pads |
|
1
- Included in Package |
hex
key holder |
|
|
4
mm hex key |
|
|
5
mm hex key |
|
|
6
mm hex key |
|
4
- Included in Package |
M4x12
mm thumbscrews |
|
|
M5x12
mm screws |
|
1
- Included in Package |
grommet
screw |
|
4
- Included in Package |
washers |
|
|
spacers |
|
1
- Included in Package |
instruction
manual |
