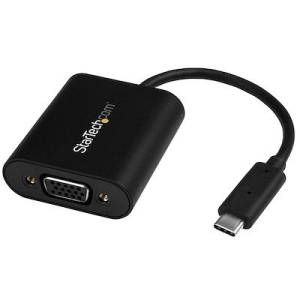

Startech USB-C to VGA Adapter - 1920x1200
Overview
This is no ordinary video adapter. Yes, it enables you to connect the USB-C
port on your computer to a VGA display or projector, but it also features a
unique Presentation Mode switch. When you turn on this switch, the adapter
prevents your computer from launching its screen saver, going to sleep or
entering power save mode. The adapter ensures that your screen will always stay
on, making it the perfect USB-C video adapter for any presentation or
meeting.
Keep your audience engaged with your
presentation
When you deliver a presentation, your goal is to engage with your audience,
not your computer. But, if you don't move your mouse soon enough, or change your
power settings, your screen goes black due to inactivity while you're addressing
the audience. This can be a major distraction when you're trying to focus on the
message you're communicating.
This adapter prevents screen disruptions with Presentation Mode, a unique
feature that automatically initiates occasional cursor movement to prevent your
computers power settings from interrupting your presentation. Its perfect for
sharing websites, drawings, spreadsheets, PDFs or slide shows during your
meeting.
Turn Presentation Mode on or off
You can turn Presentation Mode on or off, depending on your application. Turn
it on when you're in the boardroom and want your screen to stay on, and turn it
off when youre using the adapter at your workspace or office desk, to enable
your computer's original power settings to take effect. Using the toggle switch
is easy, and saves you the hassle of constantly making adjustments in your
operating system settings.
Hassle-free setup and operation on Mac and PC
To ensure easy operation and installation, this unique adapter is natively
supported on Windows and Mac computers. Its easy to connect the adapter using
the versatile USB Type-C port on your computer. The reversible USB-C connector
means you will always plug it in correctly on your first try, saving you the
hassle and distraction of repeatedly attempting to connect your laptop to a
display or projector.
Crystal-clear picture quality
The adapter supports video resolutions up to 1920x1200 or 1080p. Youll be
surprised at the picture quality the adapter provides, even when you connect it
to a legacy VGA projector or television. The adapter harnesses the video
capabilities that are built into your USB Type-C connection to deliver every
detail in stunning high-definition.
The CDP2VGASA is backed by a 3-year StarTech.com warranty and free lifetime
technical support.
Specifications
|
Warranty
Information |
Warranty |
3
Years |
|
Connector(s) |
1
- Connector A |
USB-C
(24 pin) DisplayPort Alt Mode |
|
1
- Connector B |
VGA
(15 pin, High Density D-Sub) |
|
Environmental |
Operating
Temperature |
5C
to 35C (41F to 95F) |
|
Storage
Temperature |
5C
to 35C (41F to 95F) |
|
Humidity |
25%
to 85% RH Non-Condensing |
|
Hardware |
AV
Input |
USB-C |
|
Ports |
1 |
|
AV
Output |
VGA |
|
Packaging
Information |
Package
Height |
0.8
in [20 mm] |
|
Package
Length |
9.3
in [23.6 cm] |
|
Shipping
(Package) Weight |
2.4
oz [67 g] |
|
Package
Width |
3.2
in [82 mm] |
|
Performance |
Audio
Specifications |
VGA
- No Audio Support |
|
Maximum
Analog Resolutions |
2048
x 1280, 1920 x 1200 @ 60hz |
|
Supported
Resolutions |
1024
x 768 |
|
1280
x 720 |
|
1920
x 1080 |
|
1920
x 1200 |
|
2048
x 1280 |
|
Wide
Screen Supported |
Yes |
|
Physical
Characteristics |
Weight
of Product |
1.0
oz [29 g] |
|
Color |
Black |
|
Accent
Color |
Black |
|
Cable
Length |
3.7
in [95 mm] |
|
Product
Length |
7.3
in [18.6 cm] |
|
Product
Width |
1.7
in [43 mm] |
|
Product
Height |
0.6
in [15 mm] |
|
Special
Notes / Requirements |
System
and Cable Requirements |
Your
USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to
work with this adapter. |
|
What's
in the Box |
1
- Included in Package |
USB-C
to VGA video adapter |
|
|
quick-start
guide |
