All stock codes associated to this product
960-001343(RALLYMINI), 960001343(RALLYMINI), 960001343, 960-001343, 5230210

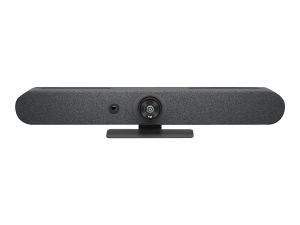

Logitech Rally Bar Mini - Graphite
Overview
SIMPLE TO USE
Start your meeting with just one touch, seamlessly connecting Rally Bar Mini
to your preconfigured room solution.
LOOKS TRUE-TO-LIFE
Upgrade your meeting experience with razor-sharp video, outstanding color,
and full room coverage.
STAYS FOCUSED
Using AI, human perception, and motorized pan and tilt, Rally Bar Mini adapts
to meeting dynamics and keeps the camera on the action.
SOUNDS AWESOME
Rally Bar Minis advanced audio engineering delivers rich, natural sound and
makes sure every voice is clearly heard.
EXPAND THE CONVERSATION
Easily accommodate any small room or huddle space, starting with a 4.6 m mic
pickup range (varies by environment) and the option to add up to 2 Rally mic
pods.
SUPER SMART
Keep the focus on meeting participants with AI Viewfinder, which uses scene
awareness to optimize RightSight auto-framing and camera control.
SIMPLE TO MANAGE
Monitor and manage your meeting room devices from one single platform with
Logitech Sync. Plus, get business insights into how your rooms are being
used.
DEVICE MANAGEMENT TECHNOLOGY PARTNERS
Our integration with partner solutions and dashboards means you can easily
manage your devices in other platforms.
YOUR SUSTAINABILITY ALLY
Our commitment to creating a more sustainable world starts with our 1.5C
Climate Pledge, 100% renewable electricity goal, and a portfolio of video
collaboration solutions that help reduce your carbon footprint.
WELCOME TO THE FAMILY
Explore Logitechs beautifully simple, next generation of small, medium, and
large room solutions that can be deployed in PC or appliance mode.
Specifications
|
DIMENSIONS |
Height:
91.4 mm |
|
Width:
719 mm |
|
Depth:
101 mm |
|
Lens
Depth: 18.5 mm |
|
Weight:
4.03 kgs |
|
Certifications
& Compatibility |
Certifications:
Zoom Certified, Certified for Microsoft Teams as a USB device. Contact the
manufacturer for additional information on pending and granted
certifications. |
|
Compatibility:
Plug and play USB connectivity with virtually any video conferencing
application |
|
Appliance
mode: Supports compatible video conferencing software in appliance mode
(no PC required), including Zoom Rooms
Appliances |
|
Certification
pending for Microsoft Teams Rooms on Android and additional video
conferencing platforms. |
|
GENERAL
SPECIFICATIONS |
Built-in
Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI
Viewfinder, cable management & retention system, table stand, Logitech
CollabOS platform |
|
Enclosure:
All-in-one enclosure with integrated table stand and patented speaker
suspension system to eliminate vibration-induced camera shake and audio
interference |
|
Device
Management: Logitech Sync |
|
Displays
Supported: 2 |
|
Display
Resolution: 1080p |
|
Network
Protocol Support: IPv4, IPv6 |
|
Proxy
Support: IP based Proxy, FQDN based Proxy, Proxy using PAC
file |
|
Camera |
Resolution:
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps |
|
Pan:
Motorized 25 |
|
Tilt:
Motorized 15 |
|
Zoom:
4X HD digital zoom |
|
Diagonal
Field of View: 120 |
|
Horizontal
Field of View: 113 |
|
Vertical
Field of View: 80.7 |
|
Total
Room Coverage (field of view + pan and tilt): 163 horizontal x 110
vertical |
|
Woofer
Speaker |
Driver:
70 mm |
|
Sensitivity:
92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at
meter |
|
Rated
Power: 8W |
|
THD:
1kHz <2% at 1W |
|
Speaker
Sampling Rate: 48KHz |
|
Impedance:
4 Ohms |
|
Midrange
Speakers |
Drivers:
2 x 43 mm |
|
Sensitivity:
84 dB SPL @ 1W/1M |
|
Rated
Power: 4W |
|
THD:
1kHz <2% at 1W |
|
Speaker
Sampling Rate: 48KHz |
|
Impedance:
4 Ohms |
|
Microphones |
Frequency
response: 90Hz 16kHz |
|
Sensitivity:
>-36dBFS +/-1 dB @ 1Pa |
|
Microphone
data rate output: 48 kHz |
|
Pickup
Range: 4.5 m |
|
Beamforming
Elements: Six omnidirectional digital MEMS microphones forming five
adaptive acoustic broadside beams |
|
Audio
processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity
Detector) |
|
Noise
suppression: AI based de-noising algorithm |
|
Add-on
Mics: Supports up to 2 additional Rally Mic
Pods |
|
RightSense
Technologies |
RightLight:
Renders natural skin tones for each
participant |
|
RightSight:
Maintains persistent room awareness and detects human figures to
auto-frame participants |
|
RightSound:
Distinguishes speech from other sounds to auto-level voices while
suppressing background noise and echo |
|
Interfaces |
HDMI
Out: 2 |
|
HDMI
In: 1 |
|
USB:
3x Type A, 1x Type C |
|
Network:
10/100/1G Ethernet |
|
WiFi:
802.11a/b/g/n/ac |
|
External
Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally
Mic Pod Hub, and Rally Mic Pod Extension
Cable) |
|
Remote
Control: Bluetooth Low Energy |
|
Power
& Cables |
Power
supply: Auto-sensing |
|
Operating
Voltage/Power: 100-240V, 19V, 4.74A |
|
Power
Supply Dimensions: 127 mm x 51 mm x 30 mm |
|
DC
Cable: 1.5 m |
|
AC
Cable: 1 m |
|
HDMI
1.4 Cable: 2 m |
|
USB
A to USB C 3.0 Cable: 2.2 m |
|
Environmental |
Operating
Temperature: 0 to 40C |
|
Storage
Temperature: -40 to 70C |
|
Humidity:
10 to 95% |
|
BTU/hr:
57 idle, 64 in meeting |
|
Security |
Full
Disk Encryption: AES-128 |
|
Data
Encryption: Symmetric Keys, PKI |
|
Device
Identity: Protected by device attestation |
|
Device
Access: Authenticated using API |
|
Key
Protection: Arm TrustZone, RPMP |
|
PACKAGE
CONTENTS |
Rally
Bar Mini |
|
Power
supply |
|
AC
power cord |
|
HDMI
cable |
|
USB
cable |
|
Remote
control Lens caps for main lens and AI
Viewfinder |
|
User
documentation |
