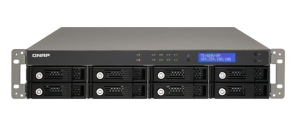

QNAP TS-809U-RP
Overview
QNAP TS-809U-RP is the new generation 2U rackmount model of the worldwide
award-winning Turbo NAS Series, providing superior performance for massive data
sharing, powerful all-in-one business server features, advanced RAID data
protection, built-in iSCSI target service, 256-bit volume-based encryption, and
rock-solid hot-swappable hard drive design for business.
The TS-809U-RP is featured with Intel Core 2 Duo 2.8GHz CPU and 2GB DDRII
memory. It supports RAID 0/ 1/ 5/ 10/ 6/ 5+Spare, JBOD, Online RAID Capacity
Expansion, and Online RAID Level Migration.
Brand new user Interface available
The TS-809U-RP can serve as a NAS and an iSCSI target server. The built-in
iSCSI target feature provides an affordable IP-SAN (Storage Area Network)
alternative for business. You can set up the NAS to expand the storage capacity
for existing application servers, such as database server and mail server in an
economic way. Moreover, the "Virtual Space Allocation" (Thin Provisioning)
feature is provided which allows you to flexibly allocate the capacity of iSCSI
LUN (Logical Unit Number) at the beginning regardless of the physical volume
capacity.
Secure Data Protection by 256-bit Volume-based
Encryption
The TS-809U-RP's dominant "volume-based encryption" feature secures the
server data by 256-bit encryption. Even if the hard drives were stolen, there is
no need to fear that the confidential data would be leaked since the data can
only be accessed by an authorized password.
*Note: Data encryption functions may not be available in accordance to
legislative restrictions of some countries.
Versatile Applications for Business and
Corporation
The TS-809U-RP supports file sharing across Linux, UNIX, Mac, and Windows
platforms. Versatile business are supported, e.g. file server, FTP server with
encryption, and printer server, PHP/MySQL supported web server, and encrypted
remote replication, Windows AD (Active Directory) SSH login and web page SSL
login.
Easy Setup and Low-cost Maintenance
The handy LCD display on the NAS provides a speedy and easy approach to
initialize the NAS and set up the RAID configuration without using any computer.
The system information and settings are also displayed for easy management. The
schedule power on/off feature is available on the NAS for you to flexibly manage
the NAS server's up time according to the working hours. Also, Wake on LAN is
supported for convenient remote wakeup of the NAS in the local
network.
High Performance NAS for Business
Benefits of Dual Gigabit LAN Deployment
Failover
The dual LAN ports can be configured as failover which allows the NAS server
to sustain the failure of one network port to provide continuous
services.
Load Balancing
The two LAN ports of the NAS can be configured as load balancing mode for
bandwidth aggregation to boost the file transfer speed (works with managed
Ethernet switch with 802.3ad configured).
Multi-IP Setting
The NAS can be deployed with two IP settings for sharing among different
workgroups in two different subnets.
Supports access of multiple IP from different LAN areas
High Reliability, Disaster-proof NAS for Business
DOM Architecture with Embedded Fail-safe Dual OS
All the OS and applications are embedded on the DOM. The NAS allows system
booting without accessing the physical disk sectors and that avoids unsuccessful
system startup caused by bad block sectors or file errors on the hard drives.
Two operating systems are built on the DOM for system booting alternatively upon
every system startup. When one fails, the other one will be used to boot up
instead, and the failed OS is recoverable from the other healthy
OS.
Advanced RAID Management with Hot-swap Design
The NAS offers advanced RAID 0, 1, 5,10, 6, 5 + Spare, Single, and JBOD disk
configurations. It also supports hot-swap design that a failed drive can be
replaced by hot swapping without turning off the server. Besides, the
best-in-class RAID on the NAS brings users a higher level of data security by
allowing one more hard drive failure than other NAS of the same
level.
Online RAID Capacity Expansion
The storage capacity of a RAID configuration can be expanded by replacing the
hard drives with larger ones. All the data will be kept and seamlessly moved to
the newly installed hard drives. There is no need to turn off the server during
the process.
Online RAID Level Migration
You can upgrade the disk configuration to higher RAID level with the data
retained. There is no need to turn off the server during the
process.
Virtual Disk Drive (VDD) adds flexibility to storage expansion along with
ease of management
The unique "Virtual Disk Drive" adds flexibility to expand the capacity of
NAS. By using the built-in iSCSI initiator, the NAS can connect to other iSCSI
targets on the network and turn them into virtual disks, which become multiple
single volumes on the NAS. Up to 8 virtual disks can be stacked. The NAS serves
as the storage stack chaining master. The user only needs to connect to this
single entry (QNAP NAS) and is able to reach and use all the iSCSI target
storages on the network.
Built-in iSCSI/IP-SAN Target Service
The TS-809U-RP can act as a NAS and iSCSI target server at the same time. It
provides a cost-efficient iSCSI solution to set up an IP-SAN. You can make use
of the built-in iSCSI target service to add up to 8 iSCSI devices. Different
iSCSI Target LUNs (Logical Unit Number) can be defined as storage expansion or
backup destination of the existing application servers, such as database servers
and mail servers.
Furthermore, the "Virtual Space Allocation" (Thin Provisioning) feature is
provided which allows you to flexibly allocate the capacity of iSCSI LUN
(Logical Unit Number) at the beginning stage without the limitation of the
volume space. When the physical storage capacity of the volume is going to be
full, you can easily expand the storage capacity by "online RAID capacity
expansion", or adjust/ remove the current unused volume space according to the
demands.
Specifications
CPU |
Intel
Processor Core 2 Duo 2.8 GHz |
DRAM |
2GB
DDRII RAM |
Flash
Memory |
128MB
DOM |
HDD |
8
x 2.5"/3.5" SATA I/II HDD |
NOTE: |
The
system is shipped without HDD. |
HDD
Tray |
8
x hot-swappable and lockable tray |
LAN
Port |
2
x Gigabit RJ-45 Ethernet port |
LED
Indicators |
Status,
LAN, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6, HDD 7,
HDD8 |
USB |
4
x USB 2.0 port |
Supports
USB printer, pen drive, USB hub, and USB UPS
etc. |
Buttons |
System:
Power button, reset button |
LCD
Panel |
Mono-LCD
display with backlight and buttons for
configuration |
Alarm
Buzzer |
System
warning |
Form
Factor |
2U
rackmount |
Dimensions |
88.9(H)
x 482.6(W) x 531.5(D) mm |
3.5(H)
x 19(W) x 20.93(D) inch |
Weight |
Net
weight: 12.15Kg/ 26.79 lbs |
Gross
weight: 16.7Kg/ 36.82 lbs |
Power
Consumption (W) |
Sleep
mode: 53W |
In
Operation: 101W |
with
8 x500GB HDD installed |
Temperature |
0~40
C / 32~104 F |
Humidity |
0~95%
R.H. |
Power
Supply |
Input:
100-240V AC, 47-63Hz, Output: 300W |
VGA |
Reserved
for maintenance |
Fan |
3
x 8 cm smart cooling
fan |
