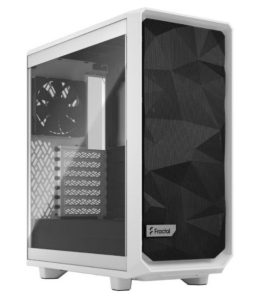

Fractal Design Meshify 2 Compact Clear Tempered Glass
Overview
Meshify 2 Compact is a high-performing case with a bold, stealth-inspired
aesthetic. Its striking exterior features bolt-free, flush tempered glass, a
fully removable top panel granting excellent interior access, and a front USB
3.1 Type-C port.
- Iconic angular mesh front provides filtered airflow with a bold,
stealth-inspired aesthetic
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to
360/280 mm front radiators with GPUs under 305 mm
- Versatile and space-efficient ATX form-factor design offers the
performance and capacity of much larger cases
|
Specifications |
|
|
3.5"/2.5"
Universal drive mounts |
2
(included) |
|
Dedicated
2.5" drive mounts |
4
(2 included) |
|
Expansion
slots |
7 |
|
Front
interface |
1x
USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset
button |
|
Total
fan mounts |
7x
120 or 4x 140 mm and 2x 120 mm |
|
Front
fan |
3x
120 or 2x 140 mm, (2x Dynamic X2 GP-14
included) |
|
Top
fan |
2x
120/140 mm |
|
Rear
fan |
1x
120 mm, (1x Dynamic X2 GP-12 included) |
|
Bottom
fan |
1x
120 mm (requires removal of HDD cage) |
|
Dust
filters |
Top,
front and bottom |
|
Fixed
velcro straps |
Yes |
|
Cable
routing grommets |
Yes |
|
Captive
thumbscrews |
HDD,
SSD and PSU brackets |
|
Left
side panel |
Tempered
glass |
|
Right
side panel |
Steel |
|
Compatibility |
|
|
Motherboard
compatibility |
ATX
/ mATX / Mini-ITX |
|
Power
supply type |
ATX |
|
PSU
max length |
200
mm (165 mm with HDD cage and front fan) |
|
GPU
max length |
341
mm (360 mm without front fan) |
|
CPU
cooler max height |
169
mm |
|
Front
radiator |
Up
to 360/280 mm |
|
Top
radiator |
Up
to 240 mm |
|
Rear
radiator |
120
mm |
|
Bottom
radiator |
120
mm (requires removal of HDD cage) |
|
Cable
routing space |
17-28
mm |
|
Radiator
Support Additional Details |
Maximum
radiator width: 145mm for front mounting. Maximum motherboard component
height for top mounted radiator: 40 mm. For more details, consult the
manual. |
|
Dimensions |
|
|
Case
dimensions (LxWxH) |
424
x 210 x 475 mm |
|
Case
dimensions w/o feet/protrusions/screws |
412
x 210 x 455 mm |
|
Package
dimensions (LxWxH) |
542
x 320 x 554 mm |
|
Net
weight |
7.7
kg |
|
Gross
weight |
9.3
kg |
|
Volume |
39.4
Liters |
|
Other |
|
|
Package
contents |
Meshify
2 Compact Case, User manual, Accessory box |
|
EAN |
7340172702368 |
|
UPC |
843276102364 |
|
JAN |
4537694276849 |
|
Product
code |
FD-C-MES2C-05 |
