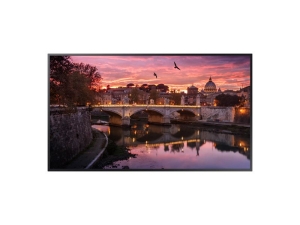

Samsung QB43R - Edge-Lit 4K UHD LED Display for Business (Cisco
Certified Compatible Display)
Overview
Experience exceptional 4K UHD picture quality with Dynamic Crystal Color for
crystal clear, lifelike color.
Samsung's QBR Series provides 4K UHD picture quality with up to a billion
colors for crystal clear, lifelike color and exceptional detail. With an
elegant, slim design and a clean cable management solution, these displays are
easy to install into any type of environment. Plus, Samsung's SMART Signage
Platform 6.0 and embedded MagicINFO Player S6 media player allow for easy
content management and playback, without the need for an external set-back box
or PC.
- Slim, easy-to-install 4K UHD 350 nit display with Dynamic Crystal Color
for crystal clear, lifelike color
- Fully compatible with Cisco WebEx Room Kit products to provide the
ultimate conferencing solution
- Intelligent UHD upscaling enhances your standard and high definition
content to the best possible picture quality
- All-in-one digital signage solution featuring an integrated media player
and System-on-Chip (SoC) technology
Specifications
|
Series
Name |
|
|
Series
Name |
QBR
Series |
|
Display |
|
|
Screen
Size |
43" |
|
Panel
Technology |
Edge
LED BLU |
|
Resolution
|
3840
x 2160 |
|
Brightness |
350
nit |
|
Contrast
Ratio (Typical) |
4000:1 |
|
Viewing
Angle (H/V) |
178/178 |
|
Response
Time |
8ms
(Typ.) |
|
Connectivity |
|
|
Input |
RGB:
DVI-D VIDEO: HDMI 2.0 (2) HDCP: HDCP 2.2 AUDIO: Stereo Mini Jack, DVI/
HDMI/ Audio (Common) USB: USB 2.0 x 2 |
|
Output |
AUDIO:
Stereo Mini Jack |
|
External
Control |
RS232C(in/out)
thru stereo jack, RJ45 |
|
Sensor |
IR |
|
Power |
|
|
Power
Supply |
AC
100 - 240 V~ (+/- 10 %), 50/60 Hz |
|
Power
Consumption (Typical/Max) |
Typical:
67 W/h Max: 100 W/h |
|
Power
Consumption (Standby) |
0.5
W |
|
Environmental
Conditions |
|
|
Operating
Temperature |
0~
40 |
|
Operating
Humidity |
10~80% |
|
Features |
|
|
Key |
UHD
Signage Display, Slim & Light Signage with Built-in MagicInfo S6, SSSP
6.0 |
|
Special |
HARDWARE:
Temperature Sensor, Pivot Display, Clock Battery (168hrs Clock Keeping),
Built in Speaker(10W 2ch), IP5x Rating, Wi-Fi/BT SOFTWARE: Auto Source
Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option,
Plug&Play (Initial Setting) |
|
SMART
Signage Platform |
Yes |
|
Wi-Fi |
Yes |
|
Speaker
Type |
Built
in Speaker (10W + 10W) |
|
Internal
Player |
|
|
Processor |
Coretex
A72 1.7GHz Quad-Core CPU |
|
On-Chip
Cache Memory |
L1
Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache :
2MB |
|
Clock
Speed |
1.7GHz |
|
Main
Memory Interface |
2.5GB
LPDDR4 1.5GHz 64bit |
|
Graphics |
Graphic
Resolution : 1920 x 1080 Output Resolution : 3840 x 2160 (Scale Up From
Graphic Processing Result) |
|
Storage |
8GB
(3.88GB Occupied by O/S, 4.12GB Available) |
|
Multimedia |
Video
Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC,
JPEG, PNG, VP8, VP9 Audio Decoder: AC3 (DD),
MPEG |
|
IO
Ports |
USB
2.0 |
|
Operating
System |
Tizen
4.0 (VDLinux) |
|
Dimensions |
|
|
Without
Stand (W x H x D) |
967.5
x 557.7 x 48.3 mm |
|
Packaging
(W x H x D) |
1095
x 676 x 151 mm |
|
Bezel
Width |
9.2mm(U/L/R),
11.2mm(B) |
|
Weight |
|
|
Product
Weight |
10
kg |
|
Package
Weight |
13.3
kg |
|
Accessories |
|
|
Included
in Box |
Quick
Setup Guide, Warranty Card, Power Cord, Remote Controller,
Batteries |
|
Optional
Wall Mount Kit |
WMN4070SE |
|
Optional
Stand |
STN-L4355F |
|
Specialty |
CML400XK |
|
Green
Management |
|
|
ENERGY
STAR Certified |
Yes |
