Please be aware that due to the large size of many products in this cateogry (Commercial Displays) additional freight may be required after completing your order. This covers various aspects of delivery - tailgates, if you do not have a forklift attract an additional charge. Or it can simply be that our freight system for extremely large products does not cope. Where possible we do absorb these additional fees but it varies order to order as well as upon yur delivery location.
All stock codes associated to this product
LH55QMREBGCXZA, 4805606

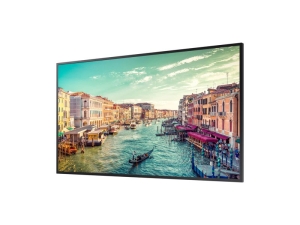

Samsung QM55R - Edge-Lit 4K UHD LED Display for Business (Cisco
Certified Compatible Display)
Overview
Experience exceptional 4K UHD non-glare picture quality with Dynamic Crystal
Color for crystal clear, lifelike color.
Samsung's QMR Series provides 4K UHD non-glare picture quality with up to a
billion colors for crystal clear, lifelike color and exceptional detail. With an
elegant, slim design and a clean cable management solution, these displays are
easy to install into any type of environment. Plus, Samsung's SMART Signage
Platform 6.0 and embedded MagicINFO Player S6 media player allow for easy
content management and playback, without the need for an external set-back box
or PC.
- Slim, easy-to-install 4K UHD non-glare display with Dynamic Crystal Color
for crystal clear, lifelike color
- Fully compatible with Cisco WebEx Room Kit products to provide the
ultimate conferencing solution
- Intelligent UHD upscaling enhances your standard and high definition
content to the best possible picture quality
- All-in-one digital signage solution featuring an integrated media player
and System-on-Chip (SoC) technology
Specifications
|
Series
Name |
|
|
Series
Name |
QMR
Series |
|
Display |
|
|
Screen
Size |
55" |
|
Panel
Technology |
Edge
LED BLU |
|
Resolution
|
3840
x 2160 |
|
Brightness |
500
nit |
|
Contrast
Ratio (Typical) |
4000:1 |
|
Contrast
Ratio (Dynamic) |
MEGA |
|
Viewing
Angle (H/V) |
178/178 |
|
Response
Time |
8ms(Typ.) |
|
Connectivity |
|
|
Input |
RGB:
DVI-D, Display Port 1.2 (1) |
|
VIDEO:
HDMI 2.0 (2) |
|
HDCP:
HDCP2.2 |
|
AUDIO:
Stereo Mini Jack, DVI, HDMI |
|
USB:
USB 2.0 x 2 |
|
Output |
RGB:
HDMI 2.0 (Loop-out) |
|
AUDIO:
Stereo Mini Jack |
|
External
Control |
RS232C(In/Out)
Thru Stereo Jack, RJ45 |
|
Sensor |
IR |
|
Power |
|
|
Power
Supply |
AC
100 - 240 V~ (+/- 10 %), 50/60 Hz |
|
Power
Consumption (Typical/Max) |
Typical:
108 W/h |
|
Max:
143 W/h |
|
Power
Consumption (Standby) |
0.5 |
|
Environmental
Conditions |
|
|
Operating
Temperature |
0~
40 |
|
Operating
Humidity |
10~80% |
|
Features |
|
|
Key |
UHD
Signage Display, Slim & Light Signage with Built-in MagicInfo S6, SSSP
6.0 |
|
Special |
HARDWARE:
Temperature Sensor, Pivot Display, Clock Battery (168hrs Clock Keeping),
Built in Speaker (10W 2ch), Videowall Daisy Chain (HDCP2.2:4EA,
HDCP1.4:7EA), IP5X Rating, Wi-Fi/BT |
|
SOFTWARE:
Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key
Option, Plug&Play (Initial Setting) |
|
SMART
Signage Platform |
Yes |
|
24/7
Operation |
Yes |
|
Wi-Fi |
Yes |
|
Speaker
Type |
Built-in
Speaker (10W + 10W) |
|
Internal
Player |
|
|
Processor |
L1
Instruction Cache : 48KB |
|
L1
Data Cache : 32KB |
|
L2
Cache : 2MB |
|
On-Chip
Cache Memory |
1.7GHz |
|
Clock
Speed |
2.5GB |
|
LPDDR4
1.5GHz 64bit |
|
Main
Memory Interface |
Graphic
Resolution : 1920x1080 |
|
Output
Resolution : 3840x2160 (Scale Up From Graphic Processing
Result) |
|
Graphics |
8GB |
|
(3.88GB
Occupied by O/S, 4.12GB Available) |
|
Storage |
Video
Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC,
JPEG, PNG, VP8, VP9 |
|
Audio
Decoder : AC3 (DD), MPEG |
|
Multimedia |
USB
2.0 |
|
IO
Ports |
Tizen
4.0 (VDLinux) |
|
Dimensions |
|
|
Without
Stand (W x H x D) |
1235.1
x 707.9 x 46.3 mm |
|
Packaging
(W x H x D) |
1402
x 858 x 163 mm |
|
Bezel
Width |
9.2mm(U/L/R),
11.2mm(B) |
|
Weight |
|
|
Product
Weight |
18.1
kg |
|
Package
Weight |
23.6
kg |
|
Accessories |
|
|
Included
in Box |
Quick
Setup Guide, Warranty Card, Power Cord, Remote Controller,
Batteries |
|
Optional
Wall Mount Kit |
WMN4070SE |
|
Optional
Stand |
STN-L4355F |
|
Specialty |
CML400XK |
|
Green
Management |
|
|
ENERGY
STAR Certified |
Yes |
