All stock codes associated to this product
103RGBBLACK, 103RGB-BLACK, 4282199
Inwin 103 Mid-Tower Case - Black
Overview
Sharp Exterior Pinstripe Design
The 103 produces gamer vibes with its pinstripe design and sharp exterior.
Its an opportunity to feel your own style and build a stunning
rig.
Address Your Lighting
The InWin logo radiates with addressable RGB lighting effects. Its controlled
and synced with your motherboard software to customize your PC.
Accelerated Tool-less Glass Design
The 103s tempered glass side panel can be easily removed by pulling the tabs
and lifting up. The tinted glass with pinstripe design enhances your systems
visual appearance, and allows users to admire their builds inside and
out.
Stay Cool!
The 103 supports up to 6 fans and can accommodate radiators at the rear, side
and bottom. This extremely flexible interior structure allows the users to have
optimal cooling performance.
Tactical Thermal Treatment
The top PSU chamber makes the system cleaner and creates an ideal area for
better airflow without interfering with the motherboard and graphics card.
Specifications
|
Model |
103 |
|
Part
Number |
IW-103-Black |
|
Color |
Black |
|
Case
Type |
Mid
Tower |
|
Materials |
SECC,
ABS, PC, Tempered Glass |
|
M/B
Compatibility |
12"
x 10.5" ATX, Micro-ATX, Mini-ITX |
|
Expansion
Slots |
PCI-E
x 7 |
|

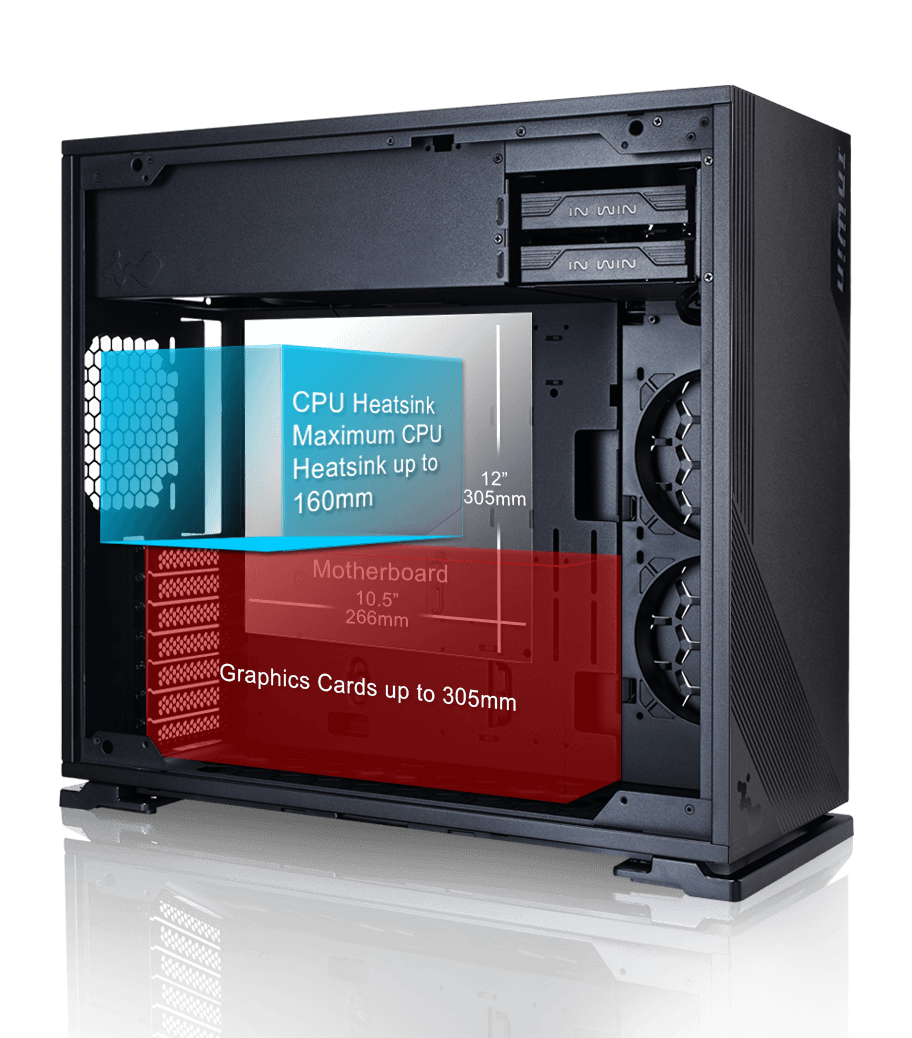

Maximum
Compatibility |
VGA
Card Length: 421mm (Maximum) |
|
VGA
Card Length: 305mm (With Side Radiator) |
|
CPU
Heatsink Height: 160mm |
|
Front
Ports |
2
x USB 3.0 |
|
HD
Audio |
|
Internal
Drive Bays |
2
x 3.5" |
|
2
x 2.5" (Max. up to 4 bays) |
|
Thermal
Solution Compatibility |
1
x 120mm Rear Fan / 120 mm Radiator |
|
2
x 120mm Side Fan / 240mm Radiator |
|
3
x 120mm Bottom Fan / 360mm Radiator |
|
Power
Supply Compatibility |
PSII:
ATX12V |
|
-
Length up to 200mm |
|
Product
Dimensions |
425
x 210 x 473 mm |
|
(H
x W x D) |
16.7"
x 8.3" x 18.6" |
|
Product
Dimensions |
446
x 227 x 480 mm |
|
(H
x W x D) with screw & handle height |
17.6"
x 8.9" x 18.9" |
|
Package
Dimensions |
506
x 282 x 532mm |
|
(H
x W x D) |
19.9"
x 11.1" x 20.9" |
|
Net
Weight |
7.31kg
/ 16.1lb |
|
Gross
Weight |
8.47kg
/ 18.6lb |
