Deepcool TESSERACT BF Case - Black
Overview
TESSERACT series computer case comes with multiple features. The case offers
great compatibility, minimalist designs, and uncompromising cooling performance,
making it a popular choice for many DIY enthusiasts and gamers. Accommodates up
to 6 fans, 310 mm-long graphic card, and various DIY features. What more can you
ask for?

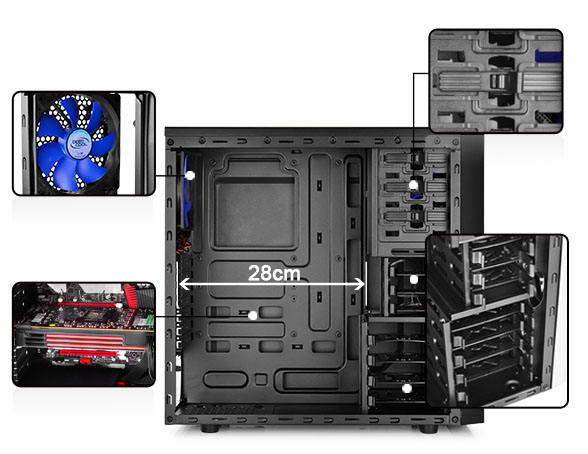

Innovative DIY-friendly Design
- Tool-free mounting for ODD.
- Tool-free mounting for a 2.5-inch HDD/SDD and 3.5-inch HDD.
- 1x pre-installed DC fan (rear).
- Great compatibility with VGA card and CPU cooler.

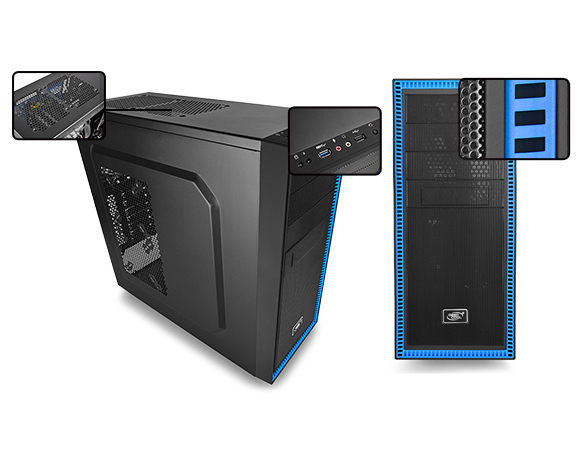

Enhanced top panel
- Integral dust filter.
- USB ports, plugholes, and switches furnished at the top-panel for easy
operations.
- Fully-integrated dust filter in the inner panel.
- Patented air intake channel furnished along the front panel
perimeter.
- High-quality rubber coating

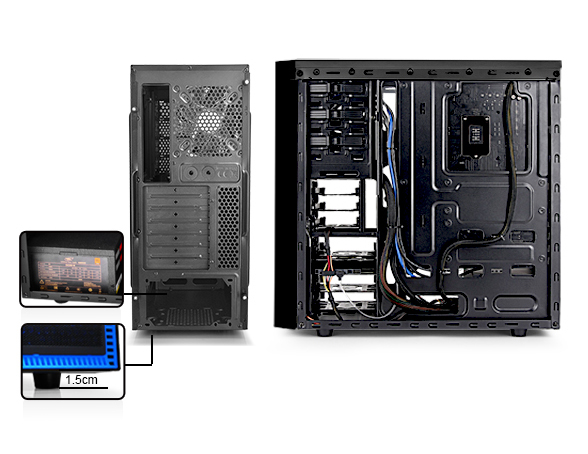

PSU Protection
- Floor-mounted PSU for improved space management.
- Elevated floor designs enhance intake airflow dynamics and cooling
performance of the PSU fan.
- 120 mm and 80 mm mounting holes on rear panel.
Backplate Cable Installation
- Multiple channels for superb cable management.
Features
- 1x pre-installed DC fan (rear).
- Added a dust filter at the top panel.
- one USB 3.0+one USB 2.0 Ports.
- Fully black interiors.
- Patented air intake channel furnished along the front panel
perimeter.
- All-metal mesh design for maximum cooling.
- Accommodates long VGA card installation.
- Slide-in HDD mounting designs for easy installation.
- Tool-free mounting for ODD/HDD.
- High-quality aesthetic rubber coating.
- 2 water cooling grommets at the rear.
- Wide CPU cutout for CPU cooler mounting.
- Floor-mounted PSU for effective cooling and more spacious
interiors
- Improved cable management.
- Support rear-mounting of a 120 mm Liquid Cooler
installation.
Specifications
|
Motherboards |
ATX/MICRO
ATX/MINI-ITX |
|
Materials |
SPCC+PLASTIC+RUBBER
COATING(Panel thickness: 0.7mm) |
|

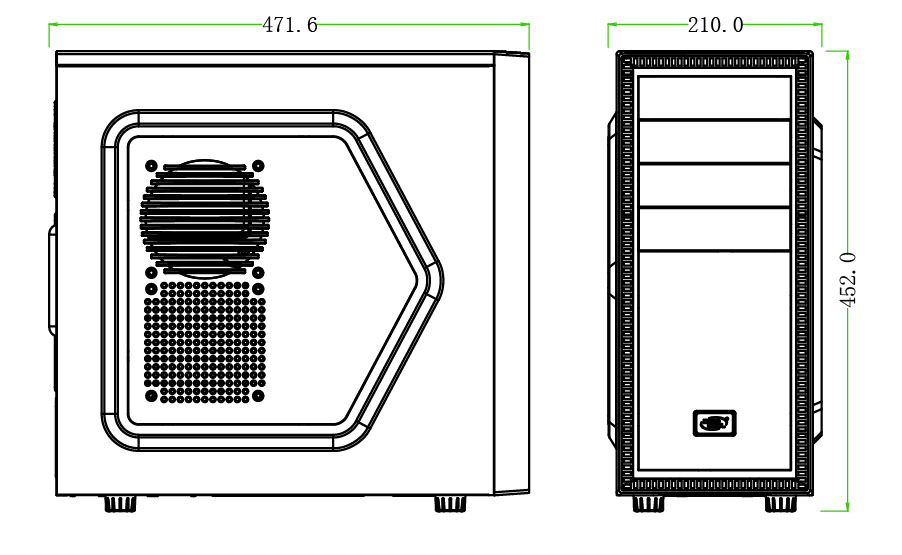

Dimension
(LxWxH) |
472*210*454mm |
|
Net
Weight |
5.1kg |
|
5.25"
Drive Bays |
2
(all tool-free installation) |
|
3.5"
Drive Bays |
4
(all tool-free installation) |
|
2.5"
Drive Bays |
3
(all tool-free installation) |
|
I/O
Panel |
1xUSB3.0/1xUSB2.0/Audiox1/Micx1 |
|
Expansion
Slots |
7 |
|
Cooling
Fans |
Included:
Rear: 1x120mm DC fan; Optional: Front: 1x120mm; Top: 2x120mm; Side:
2x80/90/120mm. |
|
Power
Supply Type |
ATX
PS2 |
|
CPU
Cooler Compatibility |
169mm
height /Liquid Cooler: 120mm at rear |
|
VGA
Compatibility |
310mm |
|
EAN |
6933412712220 |
|
P/N |
DP-CCATX-TSRBFBK |
|
EAN(WH) |
6933412712282 |
|
P/N(WH) |
DP-CCATX-TSRWHBF |
