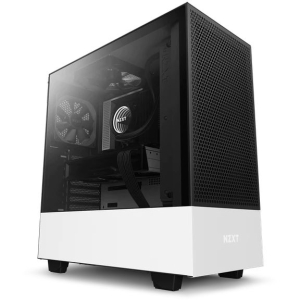

NZXT H510 Flow Compact Mid-tower Case - White
Overview
This compact mid-tower is an ideal case for high-performance builds and
features a perforated front panel for maximized airflow. The H510 is easy to
build in and offers flexibility for a variety of ATX parts.
- An optimized perforated top panel delivers increased airflow to your
system for improved temperatures
- Iconic cable management bar and uninterrupted tempered-glass side
panel
- Cable routing kit with pre-installed channels and straps
- Two Aer F120mm fans and removable filters on all air intakes
- Removable bracket designed for radiators up to 280mm
*Case version fans and specs vary from retail version
Specifications
|
Key
Specs |
|
|
Motherboard
Support |
Mini-ITX, MicroATX,
ATX |
|
Enclosure
Type |
Compact
Mid-Tower |
|
Case
Material |
SGCC Steel, Tempered
Glass |
|
Dimensions |
|
|
Height |
460 mm / 18.11
inches |
|
Width |
210 mm / 8.26
inches |
|
Depth |
428 mm / 16.85
inches |
|
Weight |
6.6 kg / 14.5
lb |
|
Compatibility &
Clearance |
|
|
Max CPU Cooler
Clearance |
165
mm |
|
Max GPU
Clearance |
360
mm |
|
Front Fan &
Radiator Clearance |
60
mm |
|
Cable
Management |
19 - 23
mm |
|
Front I/O
Ports |
|
|
USB 3.2 Gen 1
Type-A |
1 |
|
USB 3.2 Gen 2
Type-C |
1 |
|
Headset Audio
Jack |
1 |
|
Expansion
Slots |
|
|
Standard |
7 |
|
Vertical |
- |
|
Drive
Bays |
|
|
2.5" |
2 +
1 |
|
3.5" |
2 +
1 |
|
Fan
Support |
|
|
Front |
2 x 120mm / 2 x
140mm |
|
Top |
1 x 120mm / 1 x
140mm |
|
Rear |
1 x
120mm |
|
Filters |
All air
intake |
|
Included
Fans |
|
|
Front |
1 x Aer F 120mm (Case
Version) |
|
Top |
- |
|
Rear |
1 x Aer F 120mm (Case
Version) |
|
Radiator
Support |
|
|
Front |
280mm |
|
Rear |
120mm |
|
Fan
Specs |
|
|
Model |
Aer F 120mm (Case
Version) |
|
Speed |
1,200~200RPM |
|
Airflow |
50.42
CFM |
|
Noise |
28
dBA |
|
Bearing |
Rifle
Bearing |
|
Fan
Connector |
3-pin |
