All stock codes associated to this product
DS3622xs+, SY20170, BASYDS3622XS+, BASY-DS3622XS+, 29DS3622XS+, 846504004201, 4711174724208

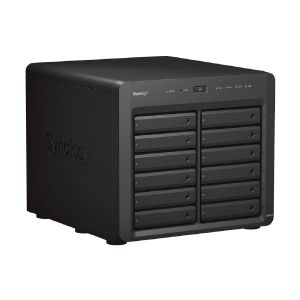

Synology DiskStation DS3622xs+
Overview
High-performance mass storage
The 12-bay Synology DS3622xs+ is a powerhouse NAS capable of fitting into
small and medium business environments with intensive and multi-user workloads.
Its high capacity, scalability, and processing power make it ideal for VM and
container storage, for lightning-fast file sharing, and as a network video
recorder for large surveillance deployments. It comes with powerful storage
management, file syncing, surveillance, and backup software, and is suitable for
editing high-quality video.
Dependable storage for many scenarios
Synology NAS is a versatile storage platform that fits perfectly in file
server, block storage, or application server roles that require high
availability, reliability, and leading-edge storage technology.
Faster performance
Enjoy a smooth experience even with multiple users running demanding
applications. See the numbers that make the DS3622xs+ more efficient.Built to
maximize uptime
The DS3622xs+ is built to keep mission-critical data and services accessible,
so that businesses can continue to perform even when disaster
strikes.
Rise to the challenge
Prepare your DS3622xs+ for the heaviest workloads or upgrade flexibly as your
business continues to grow. Use add-in cards to add bandwidth, fast SSD cache,
or both.
Out-of-the-box data protection
Protect your data with professional backup software for your Synology NAS,
other devices, and applications.
Efficient collaboration and communication
Empower your workforce to collaborate, share files, and communicate from
anywhere.
Certified virtual machine storage
Synology DiskStation Manager (DSM) streamlines provisioning for and
management of virtual machines with full certification for VMware vSphere,
Microsoft Hyper-V, Citrix XenServer, and OpenStack virtualization
environments.
Synology Storage Console for VMware or Windows platforms lets you manage
storage directly from your hypervisor. VMware VAAI integration and Windows ODX
help offload storage operations and speed up data transfer, and a Kubernetes CSI
driver lets you provision and manage volumes directly from the K8s CLI.
Specifications
|
CPU |
CPU
Model |
Intel
Xeon D-1531 |
|
CPU
Quantity |
1 |
|
CPU
Architecture |
64-bit |
|
CPU
Frequency |
6-core
2.2 (base) / 2.7 (turbo) GHz |
|
Hardware
Encryption Engine (AES-NI) |
Yes |
|
Memory |
System
Memory |
16
GB DDR4 ECC SODIMM |
|
Memory
Module Pre-installed |
16
GB (8 GB x 2) |
|
Total
Memory Slots |
4 |
|
Maximum
Memory Capacity |
48
GB (8 GB x 2 + 16 GB x 2) |
|
Notes |
Please
select Synology memory modules for optimum compatibility and reliability.
Synology will not provide complete product warranty or technical support
if non-Synology memory modules are used for memory
expansion. |
|
Synology
reserves the right to replace memory modules with the same or higher
frequency based on supplier's product life cycle status. Rest assured that
the compatibility and stability have been strictly verified with the same
benchmark to ensure identical performance. |
|
Storage |
Drive
Bays |
12 |
|
Maximum
Drive Bays with Expansion Unit |
36
(DX1222 x 2) |
|
Compatible
Drive Type* (See all supported drives) |
3.5"
SATA HDD |
|
2.5"
SATA HDD |
|
2.5"
SATA SSD |
|
Maximum
Single Volume Size* |
200
TB (32 GB memory required) |
|
108
TB |
|
Hot
Swappable Drive |
Yes |
|
Notes |
It
is strongly recommended that you only install drives listed on your
device's compatibility list. Storage pool and volume creation processes
may fail when using unverified drives. Synology is unable to provide
technical support for devices using unsupported
components. |
|
"Compatible
drive type" indicates drives that have been tested to be compatible with
Synology products. This term does not indicate the maximum connection
speed of each drive bay. |
|
Each
internal volume (may consist of multiple drives) is expandable up to 108
TB (with memory less than 32 GB) or 200 TB (with memory equal to or
greater than 32 GB). |
|
External
Ports |
RJ-45
1GbE LAN Port* |
2
(with Link Aggregation / Failover support) |
|
RJ-45
10GbE LAN Port |
2
(with Link Aggregation / Failover support) |
|
Management
LAN Port |
1 |
|
USB
3.2 Gen 1 Port* |
2 |
|
Expansion
Port |
2 |
|
Notes |
This
device's 1GbE LAN ports have a maximum transmission unit (MTU) size of
1,500 bytes. |
|
The
USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers
Forum (USB-IF) in 2019. |
|
PCIe |
PCIe
Expansion |
1
x Gen3 x8 slot (x8 link) |
|
File
System |
Internal
Drives |
Btrfs |
|
EXT4 |
|
External
Drives |
Btrfs |
|
EXT4 |
|
EXT3 |
|
FAT |
|
NTFS |
|
HFS+ |
|
exFAT |
|
Notes |
exFAT
Access can be installed for free from Package Center in DSM 7.0. In DSM
6.2 or earlier versions, exFAT Access needs to be purchased in Package
Center. |
|
Appearance |
Size
(Height x Width x Depth) |
270
mm x 300 mm x 340 mm |
|
Weight |
9.8
kg |
|
Others |
System
Fan |
120
mm x 120 mm x 2 pcs |
|
Fan
Speed Mode |
Full-Speed
Mode |
|
Cool
Mode |
|
Quiet
Mode |
|
Easy
Replacement System Fan |
Yes |
|
Power
Recovery |
Yes |
|
Noise
Level* |
25
dB(A) |
|
Scheduled
Power On / Off |
Yes |
|
Wake
on LAN / WAN |
Yes |
|
Power
Supply Unit / Adapter |
550
W |
|
AC
Input Power Voltage |
100
V to 240 V AC |
|
Power
Frequency |
50/60
Hz, Single Phase |
|
Power
Consumption* |
94.42
W (Access) |
|
54.33
W (HDD Hibernation) |
|
British
Thermal Unit |
322.39
BTU/hr (Access) |
|
185.51
BTU/hr (HDD Hibernation) |
|
Notes |
Power
consumption is measured when it is fully loaded with Western Digital 1TB
WD10EFRX hard drive(s). |
|
Noise
Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard
drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set
up 1 meter away from the Synology NAS at the front and rear. Background
noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75C; Humidity:
58.2-61.8% |
|
Temperature |
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Storage
Temperature |
-20C
to 60C (-5F to 140F) |
|
Relative
Humidity |
5%
to 95% RH |
|
Certification |
FCC |
|
|
CE |
|
|
BSMI |
|
|
VCCI |
|
|
RCM |
|
|
UKCA |
|
|
EAC |
|
|
KC |
|
|
UL |
|
|
Warranty |
5
Years |
|
Notes |
The
warranty period starts from the purchase date as stated on your purchase
receipt. (Learn more) |
|
Environment |
RoHS
Compliant |
