Appearance |
|
Dimensions |
Double-sided
80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x
0.14") |
|
Weight |
10
g (0.35 oz) |
|
Type |

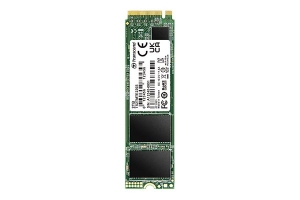

M.2
2280 |
|
Interface |
|
Bus
Interface |
NVMe
PCIe Gen3 x4 |
|
Storage |
|
Flash
Type |
3D
NAND flash |
|
Capacity |
256GB |
|
Operating
Environment |
|
Operating
Temperature |
0C
(32F) ~ 70C (158F) |
|
Operating
Voltage |
3.3V5% |
|
Performance |
|
Sequential
Read/Write (CrystalDiskMark) |
256GB |
|
up
to 3,300/1,250 MB/s |
|
4K
Random Read/Write (IOmeter) |
256GB |
|
up
to 190,000/300,000 IOPS |
|
Terabytes
Written (TBW) |
256GB |
|
550
TBW |
|
Mean
Time Between Failures (MTBF) |
2,000,000
hour(s) |
|
Drive
Writes Per Day (DWPD) |
1.2
(5 yrs) |
|
Note |
Speed
may vary due to host hardware, software, usage, and storage
capacity. |
|
The
workload used to rate DWPD may be different from your actual workload,
which may vary due to host hardware, software, usage, and storage
capacity. |
|
Terabytes
Written (TBW) expresses the endurance under the highest
capacity. |
|
Some
motherboards only provide PCIe x2 connections for the M.2 slot, creating a
bottleneck on even the fastest drives. |
|
Warranty |
|
Certificate |
CE/ |
|
FCC/ |
|
BSMI/ |
|
KC/ |
|
RCM |
|
Warranty |
Five-year
Limited Warranty |
|
Warranty
Policy |
Please
click here for more information about the Transcend Warranty
Policy. |
|
Warranty
does not apply when SSD Scope's lifetime indicator displays 0% within the
warranty coverage. |
|
System
Requirement |
|
Operating
System |
Microsoft
Windows 11 |
|
Microsoft
Windows 7 (additional driver required) |
|
Microsoft
Windows 8 (additional driver required) |
|
Microsoft
Windows 10 |
|
Linux
Kernel 2.6.31 or later |
|
Note |
Systems
for use with the PCIe M.2 SSD must have an M.2 connector with only an M
key. B-key connectors are not compatible. Improper insertion may lead to
damage. Please click here for more
information. |
|
Technology |
|
S.M.A.R.T. |
Yes |
|
Advanced
Garbage Collection |
Yes |
|
RAID
Engine |
Yes |
|
LDPC
Coding |
Yes |
|
DRAM
Cache |
Yes |
