SST-RL06BR-GP | SilverStone RL06 Case - NO PSU, Black with Red Trim

Part shop - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Cases -> Desktop -> SilverStone

SilverStone RL06 Case - NO PSU, Black with Red Trim
120mm Fan, 3.5"/2.5" Drive Bays, Tempered Glass Side Panel, USB3.0(4), Expansion Slots(7), Audio, MIC, ATX PS2, Micro-ATX, ATX

No Longer Available

Part Number:

509772

(?) Brand:

SilverStone Web Site

Manuf No:

SST-RL06BR-GP
SSTRL06BRGP

Shipping Weight:

6 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

SSTRL06BRGP, SST-RL06BR-GP, II35246

Silverstone RL06 Case (black with red trim + LED fans + tempered glass window

Overview

Stunning exterior styling with fine details
Super clean internal look with PSU and drive bay cover
Quick access filters for easy cleaning
Motherboard back plate opening for quick CPU cooler assembly
All black painted interior for stylish look
Supports graphics cards up to 13.7" (348mm)
Full tempered-glass side panel (G & GP versions only)

Specifications

Model No.	SST-RL06BR-GP (black with red trim + LED fans + tempered glass window)
Material	Plastic panel, steel body, tempered glass side panel (G & GP versions only)*
Motherboard	ATX (up to 12" x 10.2"), Micro-ATX
Drive bay	External	None
		--
	3.5" Internal	3.5" x 3 (compatible with 2.5")
	2.5" Internal	2.5 (5 ~ 15mm) x 2
Cooling system	Front	120mm LED fan x 3 (PRO & GP versions only) or 140mm fan slot x 2
	Rear	120mm fan x 1
	Side	--
	Top	120 / 140mm fan slot x 2
	Bottom	--
	Internal	--
Radiator support	Front	120mm / 140mm / 240mm x 1
	Rear	120mm x 1
	Top	120mm / 240mm x 1 (1<30mm)**
	Bottom	N/A
Expansion slot	7
Front I/O port	USB 2.0 x 2
	USB 3.0 x 2
	Audio x 1
	MIC x 1
Power supply	Standard PS2(ATX)
Expansion card	Support graphics card up to 13.7" (348mm), width restriction - 6" (152mm)
Limitation of CPU cooler	160mm
	162mm (PRO & GP)
Limitation of PSU	200mm
Net weight	6 kg (standard version)
	6.3 kg (PRO version)
	6.87 kg (G version)
	7.17 kg (GP version)

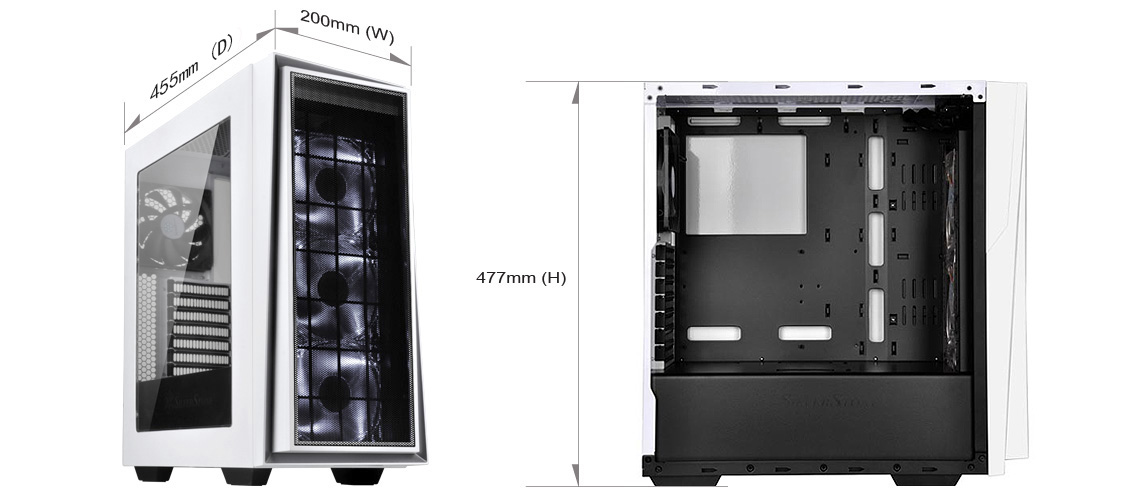

Dimension	200mm (W) x 477mm (H) x 455mm (D), 43.4 Liters
	7.87" (W) x 18.78" (H) x 17.91" (D), 43.4 Liters

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.
