All stock codes associated to this product
LAN2MPX, II41846

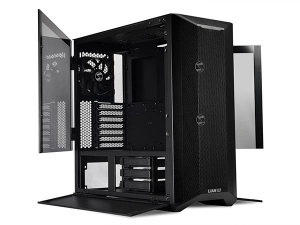

Lian Li Lancool-II-Mesh-Performance
Overview
LANCOOL II MESH Performance features a mesh front panel and mesh bottom left
shroud panel, honeycomb vent design and built-in PWM fans, ensuring bountiful
airflow delivered to your components while the system runs at peak
performance.
With the mesh front, LANCOOL II MESH making great airflow in the chasis,
Packing three PWM fans, two front 140mm fans and one rear 120mm fan effectively
cooling the component in users PC build and able to control by the botton on the
I/O port. 9 drive mounting space and supports 384mm maximum GPU length and 176mm
maximum hight clearence.Sollution for the cable management with double tempered
glass to view the interior.
Specifications
|
Model |
LANCOOL
II MESH PERFORMANCE |
|
Dimensions |
(D)
478mm x (W) 229mm x (H) 494mm |
|
Motherboard |
E-ATX(width:
under 280mm)/ATX/M-ATX/ITX |
|
PSU |
210mm |
|
Color |
black |
|
Materials |
Steel |
|
4.0mm
tempered glass (both sides) |
|
Fan
Support |
Front:
2 x 140mm or 3 x 120mm |
|
Top:
2 x 120mm or 2 x 140mm |
|
Top
of PSU chamber: 2 x 120mm |
|
Radiator |
Front
(multi-way fan/radiator bracket): 1 x 360/280/240mmTop: 1 x 240mm (aligned
to the left) |
|
VGA
Length |
384mm |
|
CPU
Clearance |
176mm |
|
Drive |
Behind
MB Tray: 2 x 2.5 SSDBehind the right flip panel: 2 x
2.5SSD |
|
Hard
Drive Cage: 3 x 3.5 HDD/2.5 SSD |
|
Above
PSU Chamber: 2 x 2.5 SSD |
|
Slot |
7 |
|
I/O
Ports |
1
x Fan speed control button1 x TRRS AUDIO |
|
2
x USB 3.0 |
|
1
x USB 3.1 TYPEC |
|
Dust
Filters |
1
x Top (magnetic), 1 x Bottom (tray) |
|
Incl
Fans |
2
x 140mm PWM Fan (front) |
|
Rated
Speed:600 200 (30% Duty)-1200RPM 10% |
|
Air
Flow:60.56CFM |
|
Noise:25.8dB(A)1x
120mm PWM fan (rear) |
|
Rated
Speed:600 200 (30% Duty)-1500RPM 10% |
|
Air
Flow:54.6CFM |
|
Noise:26.1dB(A) |
