Noctua NH-L9I-17XX Low Profile CPU Cooler
Overview
The NH-L9i-17xx is the latest, LGA1700-specific revision of Noctuas
award-winningNH-L9ilow-profile CPU cooler for
Intel-LGA17xx based HTPCs and Small Form Factor (SFF) systems. At a height of
only 37mm, the NH-L9i is ideal for extremely slim cases and, due to its small
footprint, it provides 100% RAM and PCIe compatibility as well as easy access to
near-socket connectors even on tightly packed mini-ITX motherboards. The
custom-designed SecuFirm2 mounting system for the LGA1700 (LGA17xx family)
socket makes installation a breeze and, thanks to the highly
optimisedNF-A9x1492mm fan that supports fully
automatic speed control via PWM, the NH-L9i-17xx runs remarkably quietly. Topped
off with Noctuas renownedNT-H1thermal compound, the
NH-L9i-17xx combines everything users have come to expect from Noctuas larger
coolers into a super-compact, premium-quality package for ITX and HTPC builds
with Intel LGA17xx family CPUs.
Specifications
|
Cooler
Specification |
|
|
Socket
compatibility |
Intel
LGA1700 |
|

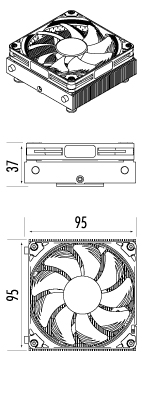

Height
(without fan) |
23
mm |
|
Width
(without fan) |
95
mm |
|
Depth
(without fan) |
95
mm |
|
Weight
(without fan) |
355
g |
|
Height
(with fan) |
37
mm |
|
Width
(with fan) |
95
mm |
|
Depth
(with fan) |
95
mm |
|
Weight
(with fan) |
430
g |
|
Material |
Copper
(base and heat-pipes), aluminium (cooling fins), soldered joints &
nickel plating |
|
NSPR |
59 |
|
Fan
compatibility |
92x92x14mm,
92x92x25mm |
|
Scope
of delivery |
NF-A9x14
PWM premium fan |
|
NA-RC7
Low-Noise Adaptor (L.N.A) |
|
NT-H1
high-grade thermal compound |
|
SecuFirm2
mounting kit |
|
Screws
for 92x92x25mm fans |
|
Noctua
Metal Case-Badge |
|
Warranty |
6
Years |
|
FAN
Specification |
|
|
Model |
Noctua
NF-A9x14 HS-PWM |
|
Bearing |
SSO2 |
|
Max.
rotational speed (+/- 10%) |
2500
RPM |
|
Max.
rotational speed with L.N.A. (+/- 10%) |
1800
RPM |
|
Min.
rotational speed @ 20% PWM (+/-20%) |
600
RPM |
|
Max.
airflow |
57,5 m/h |
|
Max.
airflow with L.N.A. |
40,8 m/h |
|
Max.
acoustical noise |
23,6
dB(A) |
|
Max.
acoustical noise with L.N.A. |
14,8
dB(A) |
|
Input
power |
2,52
W |
|
Voltage
range |
12
V |
|
MTTF |
>
150.000 h |
