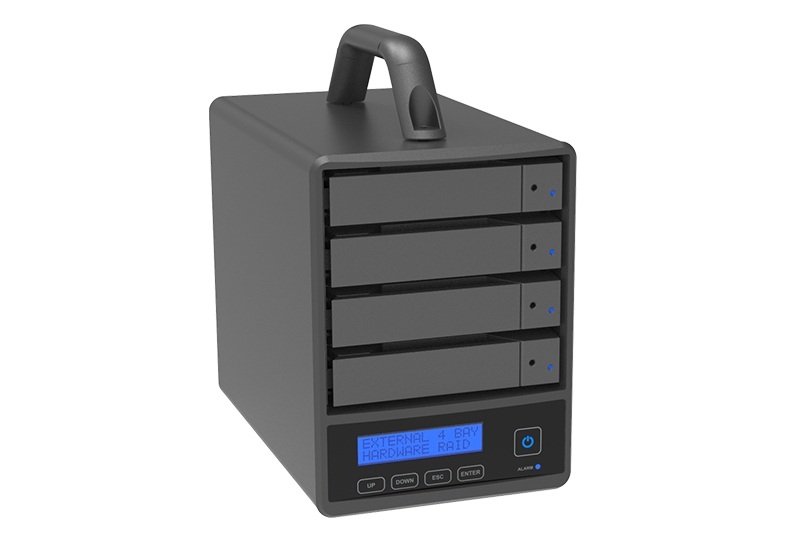

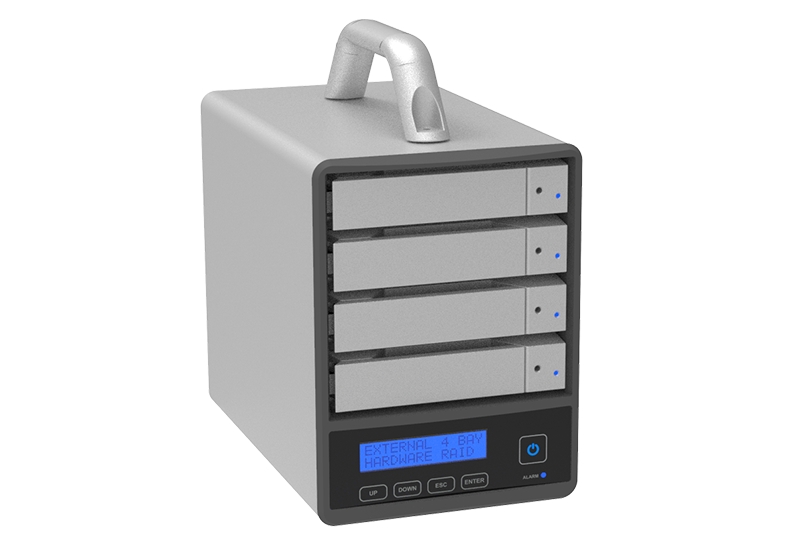

Stardom SR4-SBA31+ SOHORAID System Diskless, Silver

Features

1. All new design with LCM and Touch Button hardware RAID solution

Touch button make SR4-SBA31+ is not only a more safety product but also has the elegant outlook

2. The best data storage solution for monitor expansion and charging

Support 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A ) Power Delivery Charging for notebook and mobile phone

DP 1.1a DisplayPort connect DVIHDMIVGA display devices

3. SR4-SBA31+ is with three RAID modes based on needs, RAID 5 is for Real-Time Recover

Support RAID 0/5/JBOD modes

4. Support USB 3.2 Type-C, Type-A, and eSATA interface, suitable for MAC or PC

Provide USB 3.2 Type-C to C cable and Type-C to A cable, and eSATA cable.

Transmission speed can be up to 3Gbps.

5. Support both of 3.5" HDD and 2.5" HDD &SSD

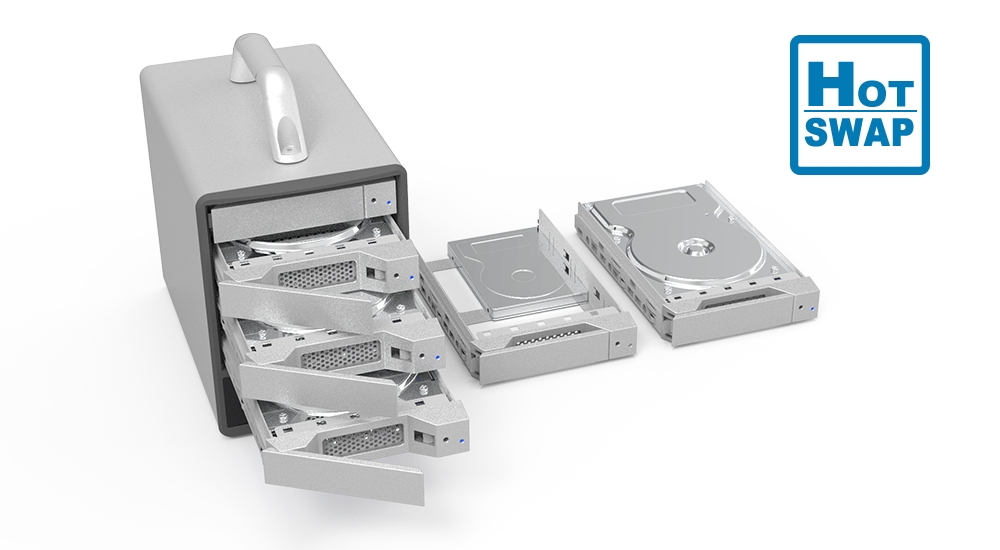

Plug and play and Hot-Swappable Drive

6. Low noise fan design with fast heat dissipation.

7. Designed with Aluminum Construction for High Quality and Fast Heat Dissipation.

Note: For DisplayPort (DP 1.1a) and USB Power Delivery (PD) functions, It needs to be used with a USB Type-C to C cable, and the host must support these functions.

All new design with LCM and Touch Button hardware RAID solution

The SR4-SBA31+ is an all in one hardware RAID solution that embeds the JMB394 RAID controller chipset that require no extra cards. It is economical and efficient RAID storage, that can be easily connected to a computer, completed the installation and switched the RAID mode levels based on needs.

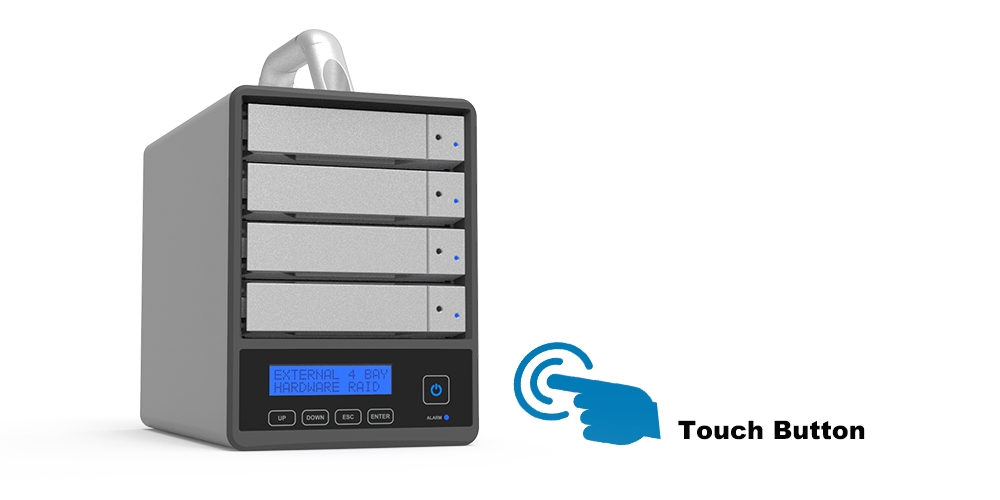

The benefit of Touch Button

The newly exterior of SR4-SBA31+ is designed with the touch button for power and setting function for the user friendly. Firstly User just need to turn on the power switch on the backplane and can touch power on and off the device for ease use at all the times.

It also has the special design on the power-off mode to avoid the users accidentally touch the power and the device shut down immediately. All features make SR4-SB31+ is not only a more safety product but also has the elegant outlook.

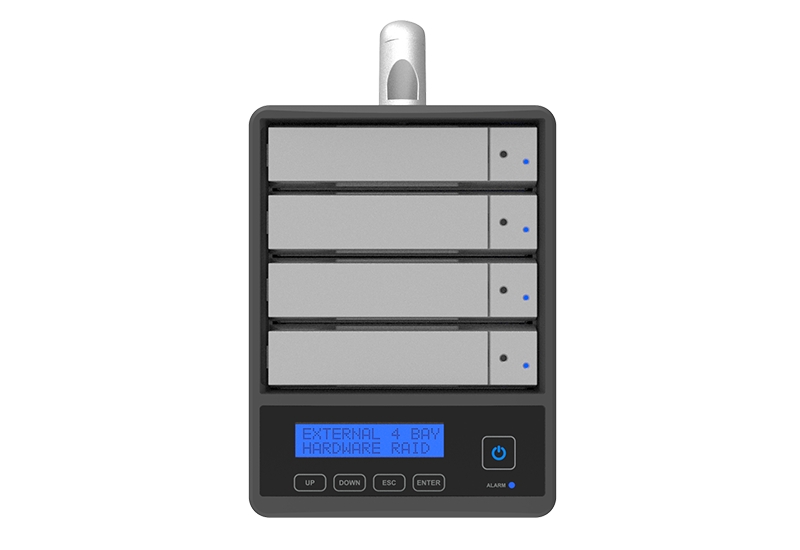

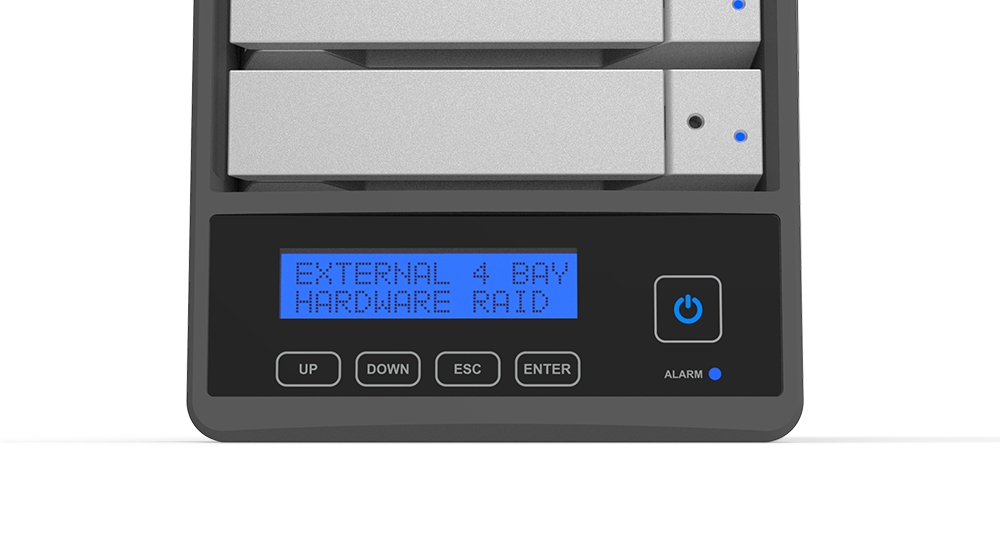

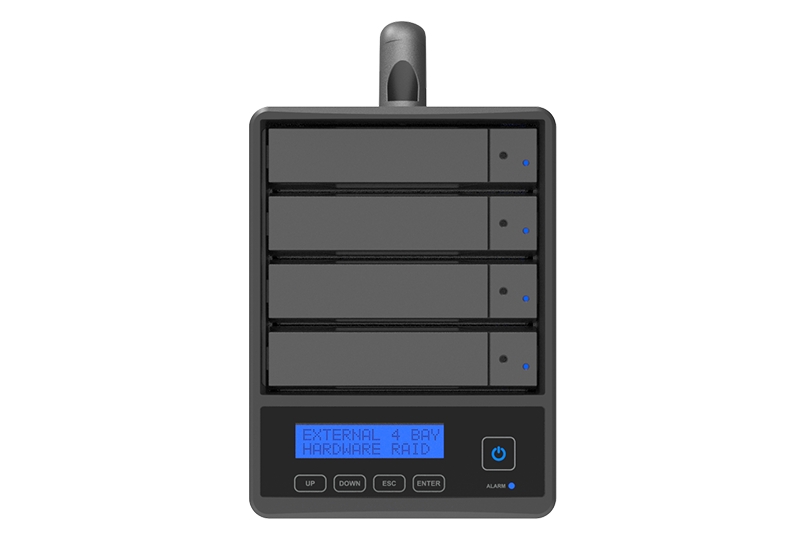

User-friendly LCM display

Equipped with clear readable LCM display and LED indicators for system monitoring during operation, so users can easily grasp the status of the system at all times. Moreover, it comes with visual and audio alarms whenever failure occurs.

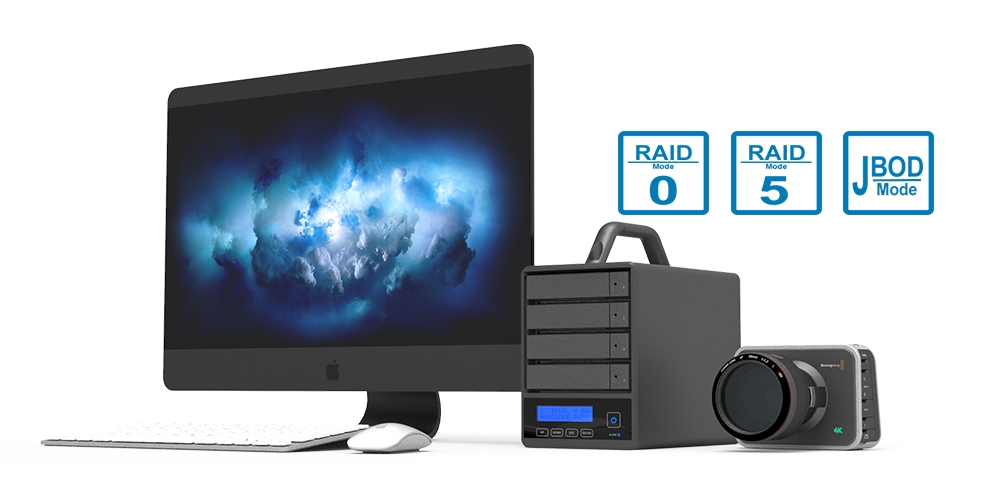

SR4-SBA31+ is with three RAID modes based on needs, RAID 5 is for Real-Time Recover

The SR4-SBA31+ is a four drive storage system with JBOD / RAID 0 / RAID 5 storage option for storing contents in large scales. Industrially designed with aluminum exterior, that is tough and durable for hard drive protection of the highest grade.

SR4-SBA31+ enables you to back up your documents, family photos, event movies, downloaded files, or other digital assets reliably and efficiently. If a hard drive happens to fail, simply swap out the defective drive and replace with a new one. You can keep working on your projects and SR4-SBA31+ will automatically rebuild the data in the background.

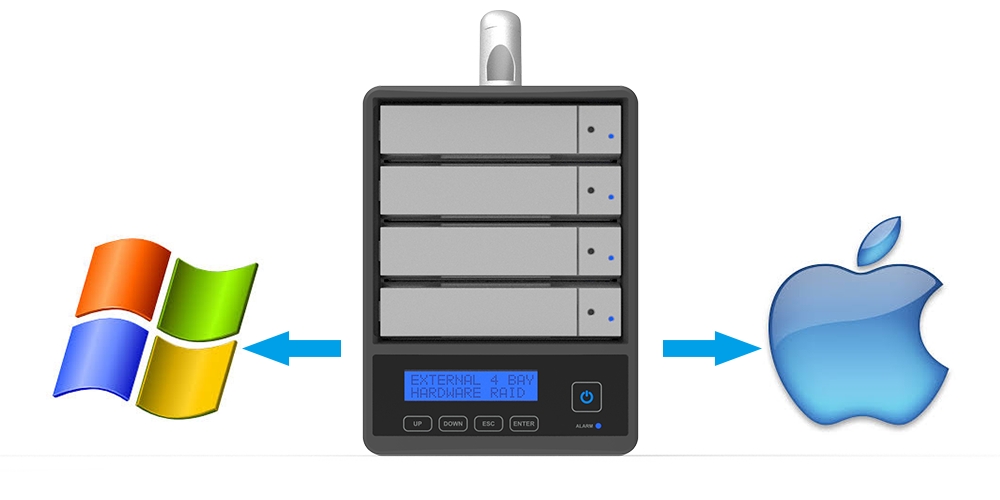

For Mac &PC

With high-speed 3G e-SATA, USB 3.2 Type-C to C and Type-C to A cable, the SR4-SBA31+ can be used in both Mac &PC environments providing great convenience and flexibility.

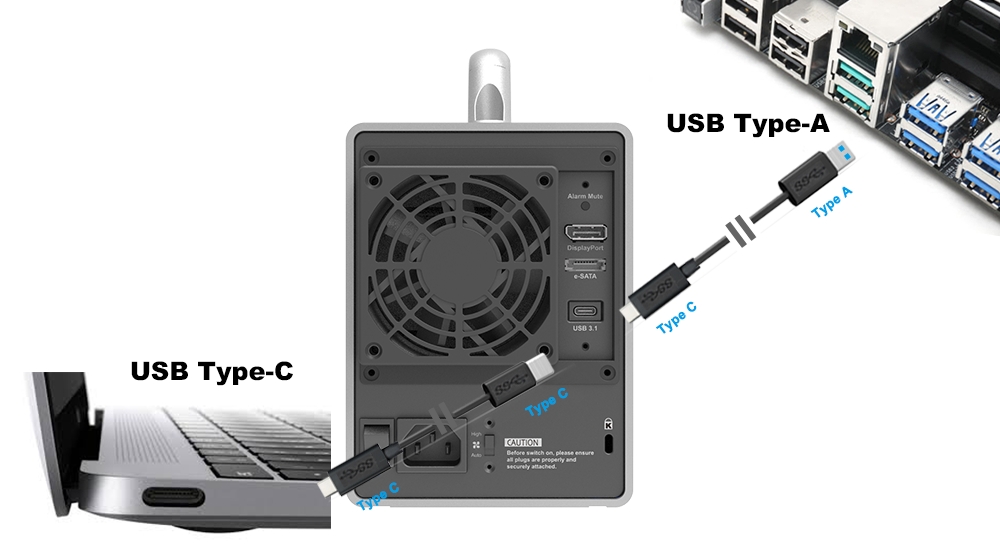

Provide Type-C to C cable and Type-C to A cable

SR4-SBA31+ is equipped with RAID 0/5/JBOD modes, users can use the Type-C to C cable or the Type-C to A cable to connect to any host PC or notebook with USB Type-C or USB Type-A, and the transmission performance can be up to 3Gbps . Whether it is used for searching files, editing photos or watching the 4K high resolution videos, SR4-SBA31+ will bring you the extremely enjoyment of video and audio quality.

Support both of 3.5" HDD and 2.5" HDD &SSD

SR4-SBA31+ is a 4-bay chassis provides you the big storage capacity and supports any kind of disk capability of 3.5" and 2.5" SATA/SSD HDD products. It is designed with strong aluminum extrusion and chassis provides an excellent protection for your storage disks that you could fully rely on it for professional creative or mobility heavy works.

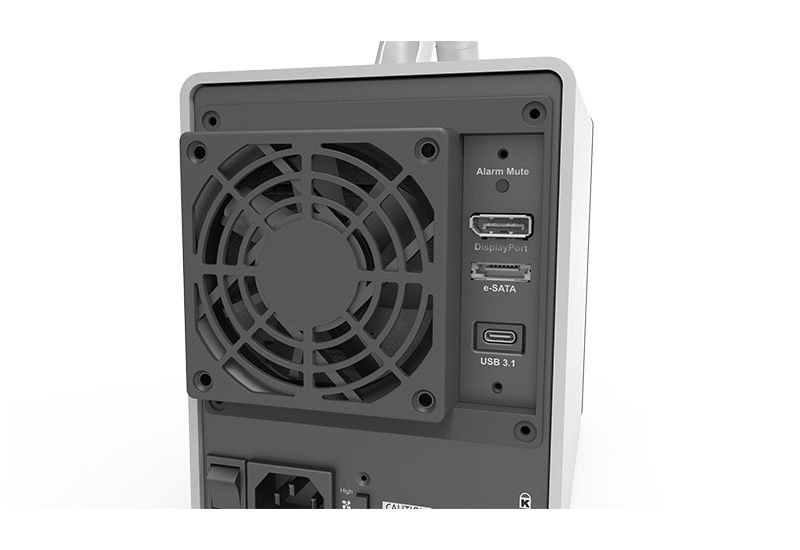

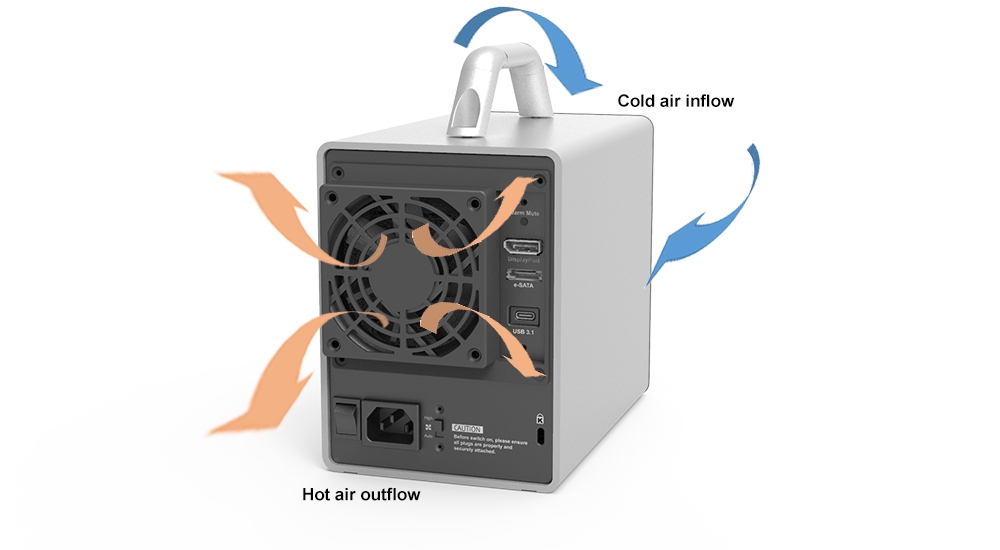

Low noise fan design with fast heat dissipation

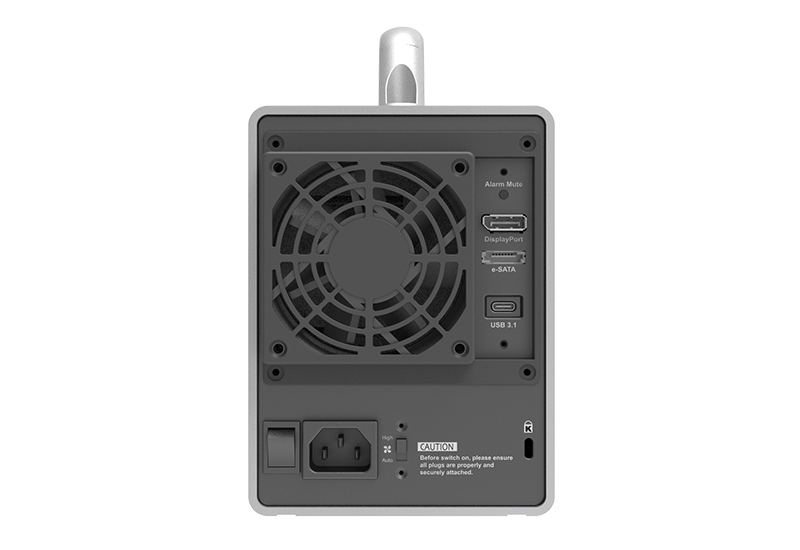

The new SR4-SBA31+ has a built-in low-noise fan, to allows the device to quickly dissipate heat without affecting the transmission perofrmance. You could manually adjust fan switch on the rear.

In addition, if the fan fails or the device temperature is too high, the buzzer will beep and let the user know that the device has failed. The user can turn off or turn on the buzzer through the mute adjustment switch on the back panel.

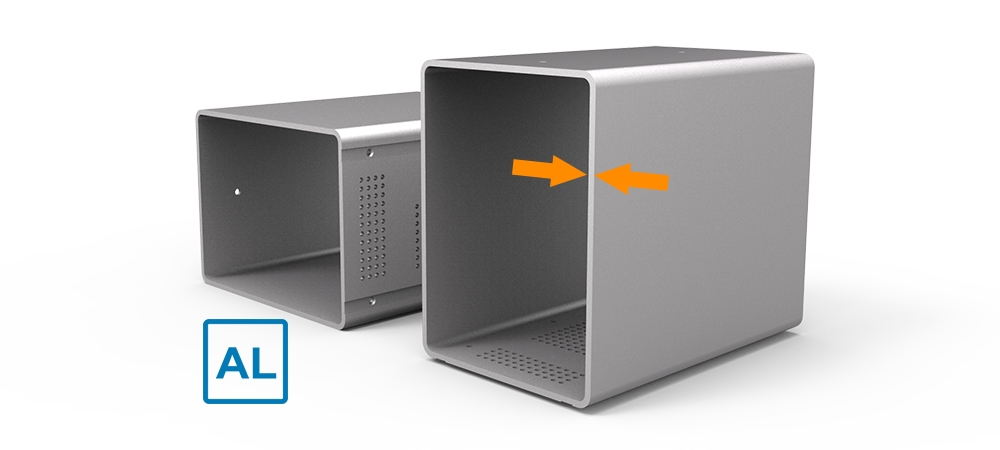

Tough and durable shielding body

The SR4-SBA31+ has a seamless 4.0 mm thick all-aluminum housing that is rugged enough to withstand the most demanding of use. With aluminum body, the system dissipates heat faster for a greater stability and performance that also extends the lives of the drives.

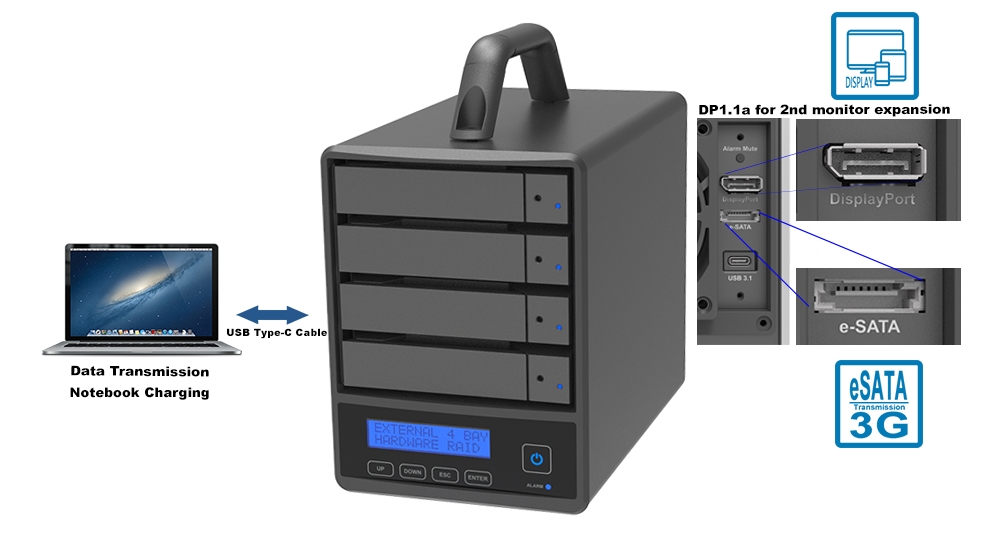

The best data storage solution for monitor expansion and charging

The SR4-SBA31+ supports USB 3.2 Protocol which gives you an up to 3Gbps data transfer rate. You could easily use it for storage data and editing your huge photo galleries directly from your notebook or mibile phone from its easy and friendly to use features.

The Type-C connector provides 24W (12V/2A) / 18W (9V/2A) / 15W ( 5V/3A ) USB Power Delivery (PD) that can charging the notebook and mobile phone when data been accessing. SR4-SBA31+ also provides one DP 1.1a DisplayPort for 2nd monitor expansion.

Note: For DisplayPort (DP 1.1a) and USB Power Delivery (PD) functions, It needs to be used with a USB Type-C to C cable, and the host must support these functions.

Raid 5 Mode, use with Server to backup the important data

You can also use the Type-C to C cable or the Type-C to A cable to connect to a Server device with a Type-C or Type-A interface. Using RAID 5 mode, the SR4-SBA31+ can be easily expand to be a personal storage center. Users do not need to worry about the hard drive damaged to lost the important data, and can achieve comprehensive data backup.

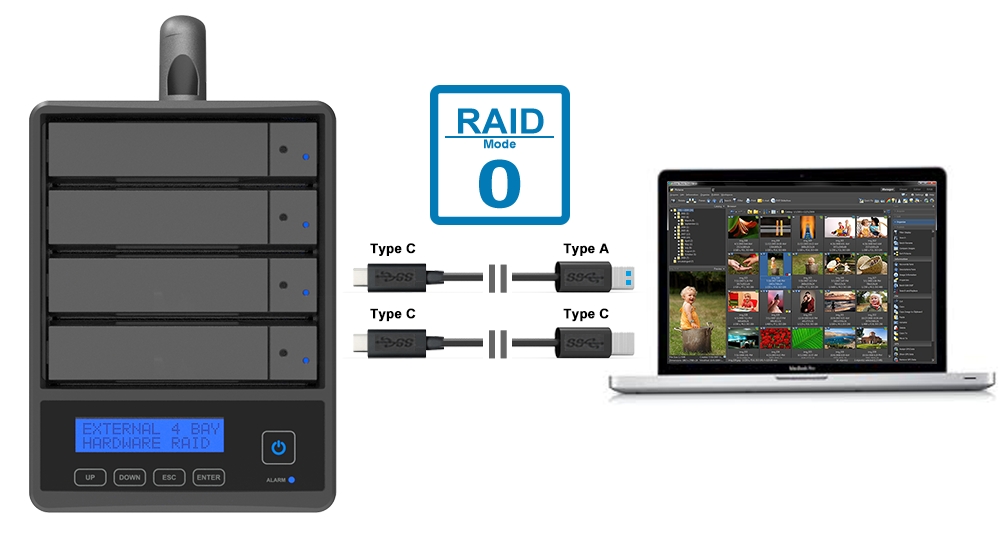

RAID 0 mode, complete various photo editing quickly

SR4-SBA31+ has an ultra-fast Type-C to C cable and Type-C to A cable. Users can connect SR4-SBA31+ to any host device that has USB Type-C to C interface or USB Type-C to A interface. Using RAID 0 mode, the SR4-SBA31+ can be created an entire photography studio to import or backup thousands of RAW images at any time, and help users to complete various photo editing quickly.

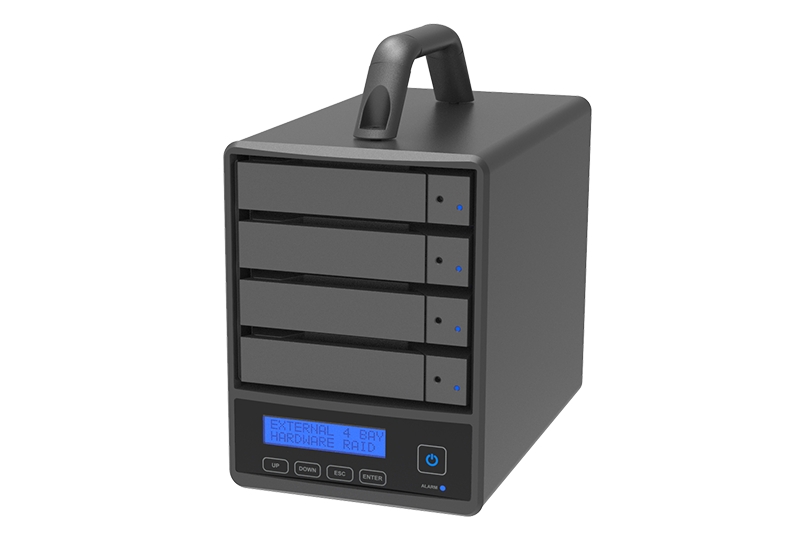

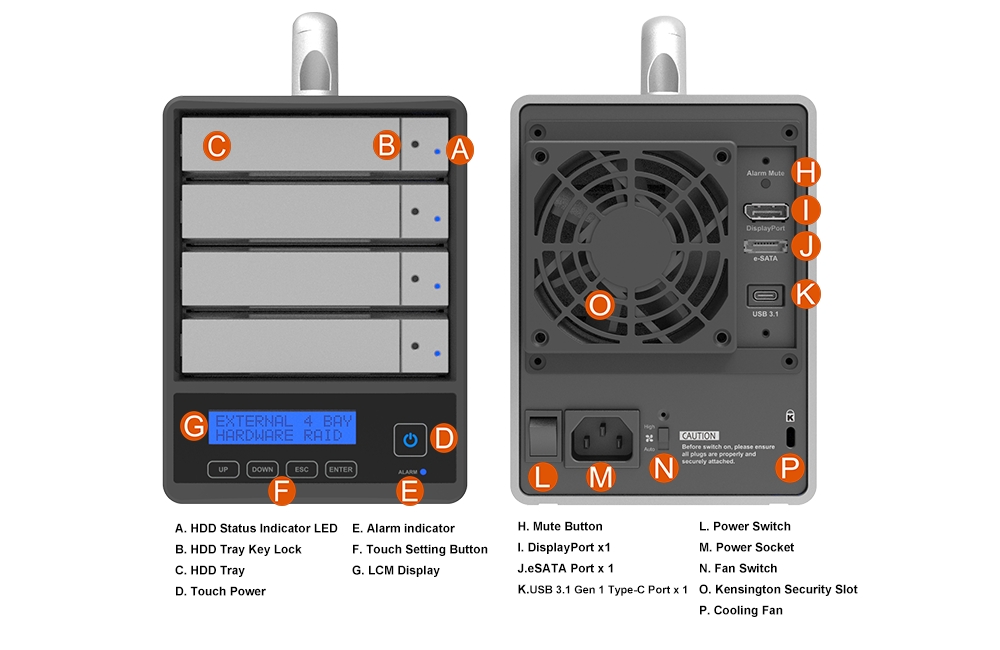

Product View

Specification
