All stock codes associated to this product
CA1C200M1WN00, CA-1C2-00M1WN-00
Thermaltake Versa H25 Window Mid-Tower Chassis
Overview
Thermaltake new Versa H25 Window mid-tower chassis is ideal for home-computer
builders and gamers, creating enough space for high-end hardware and expansion.
The ample ventilation options, cleanable air filter, and a perforated mesh bezel
help to keep the entire system cool and dust-free. Versa H25 Window combines a
manageable frame size with extensive options to customize users computer or
gaming system.
Enthusiast Design
Designed for gamers, perforated top panel build for easy heat dissipation and
rapid air intake for maximum ventilation. The heighten foot-stands at the bottom

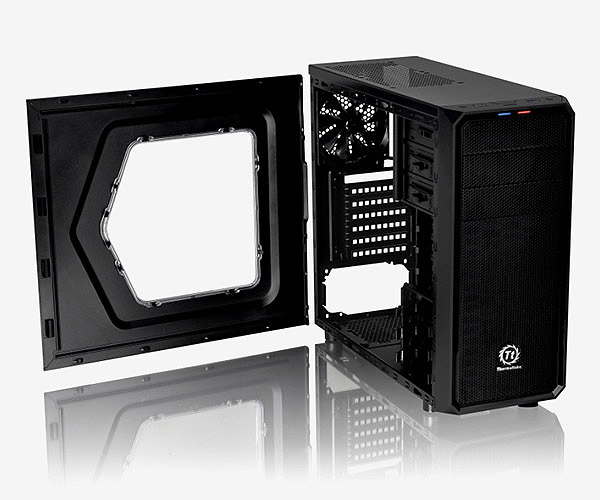

help to enhance airflow. Featuring a transparent side window to offer a direct
view of inner system.

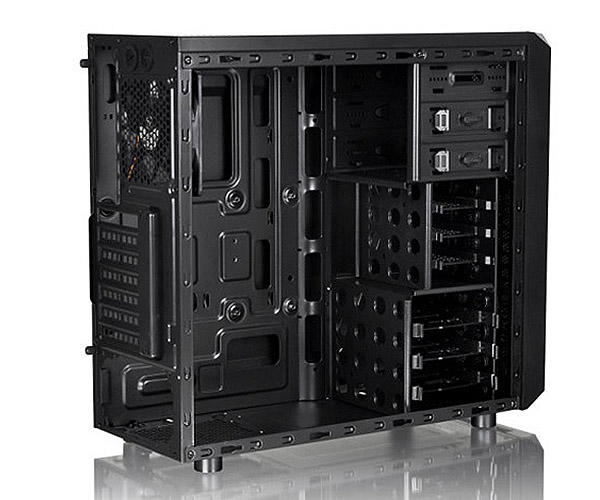

Tool-free Installation
Innovative 5.25 & 3.5 tool-free drive bay design minimized the hassles of
installing/removing. Trio drive bay concept 2 + 3 + 3, a perfect ratio for
accessory and storage devices. Also, tool-free mount fan can be clipped on the
dust filter.

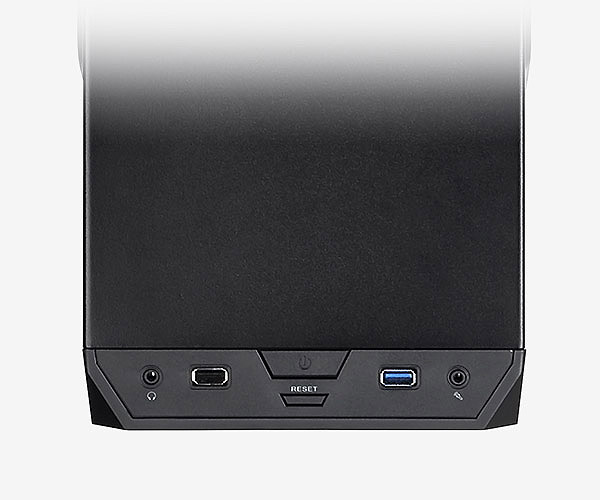

Handy I/O Ports
The perforated top-front panel has implemented one data transfer SuperSpeed
USB 3.0 port along with one standard USB 2.0 port, a HD microphone and headset
jacks, to grand direct access when needed.
Optimized Ventilation
A preinstalled 120mm rear turbo fan along with optional 2 x 120mm intake fans
and 2 x 120mm exhaust fans as well as a removable front fan mounting dust filter
and bottom PSU filter to optimize system ventilation. Cable management design
takes cooling performance to another step.

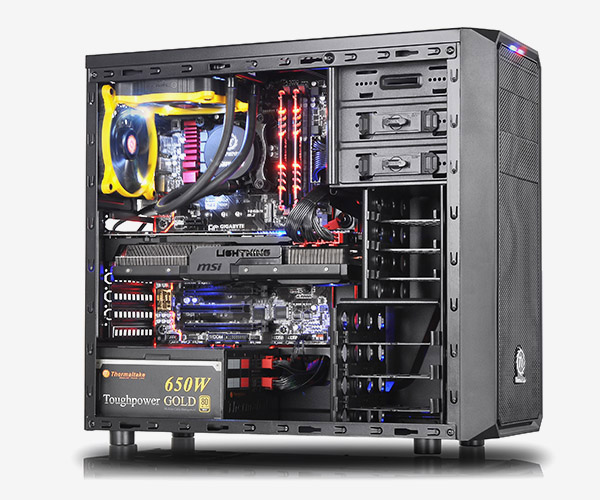

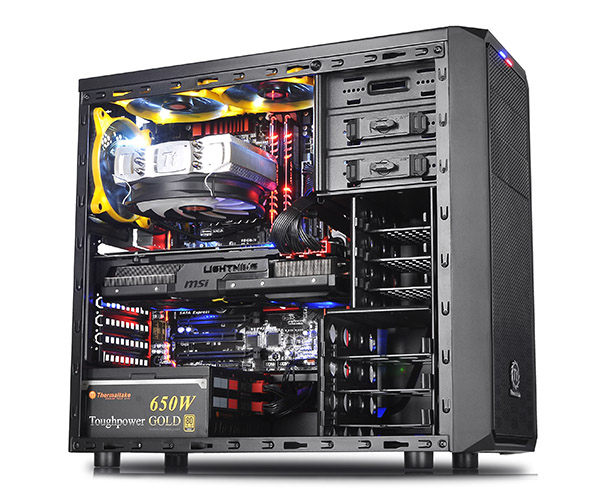

High-end Complete System on the Go
Enables user to build a complete high-end solution including a 120mm radiator
liquid cooling system with long graphic card. Versa H25 protects users hardware
and increase CPUs overclocking potential. Most importantly, to delivers
outstanding cooling efficiency in the entire case.
Specifications
Model |
Versa
H25- Window |
P/N |
CA-1C2-00M1WN-00 |
Case
Type |
Mid
Tower |
Dimension
(H x W x D) |
429
x 209 x 478mm |
(16.9
x 8.2 x 18.8 inch) |
Net
Weight |
4.2
kg / 9.3 lb |
Side
Panel |
Transparent
Window |
Color |
Exterior
& Interior : Black |
Material |
SPCC |
Cooling
System |
Front
(intake) :(optional) |
120
x 120 x 25 mm x 2 |
Rear
(exhaust) : |
120
x 120 x 25 mm Turbo fan |
(1000rpm,
16dBA) |
Top
(exhaust) :(optional) |
120
x 120 x 25 mm x 2 |
Drive
Bays |
-Accessible:
2 x 5.25"" |
Hidden:
3 x 3.5"" or 2.5"", 3 x 2.5"" |
Expansion
Slots |
7 |
Motherboards |
9.6"
x 9.6" (Micro ATX), |
12"
x 9.6" (ATX) |
I/O
Port |
USB
3.0 x 1,USB 2.0 x 1, HD Audio x 1 |
PSU |
Standard
PS2 PSU (optional) |
LCS
Upgradable |
Supports
1/2", 3/8", 1/4" water tube |
Radiator
Support |
Rear:
1 x 120mm |
Other |
CPU
cooler height limitation: 155mm |
VGA
length limitation: 315mm |
