All stock codes associated to this product
SV211HDUA, 2514069

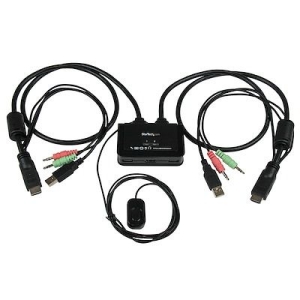

Startech 2 Port USB HDMI Cable KVM Switch with Audio and Remote
Switch - USB Powered
Overview
- Supports HD resolutions (1080p - 1920x1200)
- Switch PCs via push-button, hot-keys or switching software
- Space-saving design, minimal footprint
- Integrated KVM cables and remote switch
- Switching software supports PC and Mac platforms
- USB Powered - No external power adapter required
- Independent audio/mic switching for uninterrupted audio
- Analog (3.5mm) and HDMI audio supported
- Supports hot-plugging
- Remote switch on 1.5m (5ft.) cable
The SV211HDUA 2-Port HDMI Cable KVM Switch with Audio and Remote Switching
Control lets you control two HDMI, USB equipped PCs with a single monitor,
keyboard, mouse and audio peripheral set.
To help organize your desk without sacrificing work space, this compact HDMI
USB KVM features integrated cables that can be connected directly to your
system, while leaving a minimal footprint. The switch features a remote
push-button on a 1.5 meter (5ft) integrated cable that can be placed in an
easily accessible location, as well as keyboard hot-keys, and PC or Mac
compatible software for switching between systems. To eliminate the need for a
bulky external power adapter and wall outlet, the HDMI KVM switch is
USB-powered.
This KVM with HDMI video capability offers support for 1080p HD resolutions
(up to 1920x1200) for the ability to drive a large HDMI display for applications
that require high graphical output.
Specifications
|
Compatibility |
Windows
2000, XP, Vista, 7, 8, 8.1, 10 |
|
Windows
Server 2003, 2008 R2, 2012, 2016, 2019 |
|
Mac
OS 10.6 to 10.12 |
|
Specifications |
|
|
Warranty
Information |
|
|
Warranty |
2
Years |
|
Connector(s) |
|
|
Console
Interface(s) |
1
- HDMI (19 pin) |
|
2
- 3.5 mm Mini-Jack (3 Position) |
|
2
- USB 2.0 Type-A (4 pin, 480Mbps) |
|
Host
Connectors |
1
- HDMI (19 pin) |
|
1
- USB 2.0 Type-A (4 pin, 480Mbps) |
|
2
- 3.5 mm Mini-Jack (3 Position) |
|
Environmental |
|
|
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Storage
Temperature |
-20C
to 60C (4F to 140F) |
|
Humidity |
0~90%
RH Non-Condensing |
|
Hardware |
|
|
Audio |
Yes |
|
KVM
Ports |
2 |
|
PC
Interface |
USB |
|
PC
Video Type |
HDMI |
|
Number
of Monitors Supported |
1 |
|
Rack-Mountable |
No |
|
Cables
Included |
Yes |
|
Industry
Standards |
HDCP |
|
Daisy-Chain |
No |
|
Indicators |
|
|
LED
Indicators |
1
- PC Selection indictor |
|
Packaging
Information |
|
|
Package
Height |
6.2
cm [2.4 in] |
|
Package
Length |
25.0
cm [9.8 in] |
|
Shipping
(Package) Weight |
0.5
kg [1.0 lb] |
|
Package
Width |
16.1
cm [6.3 in] |
|
Performance |
|
|
On-Screen
Display |
No |
|
IP
Control |
No |
|
Hot-Key
Selection |
Yes |
|
Audio
Specifications |
Port
Selection Support |
|
Push
Button, Hotkeys, and Software |
|
Physical
Characteristics |
|
|
Weight
of Product |
350.0
g [12.4 oz] |
|
Color |
Black |
|
Material |
Plastic |
|
Cable
Length |
850
mm [33.5 in] |
|
Product
Length |
8.8
cm [3.5 in] |
|
Product
Width |
6.6
cm [2.6 in] |
|
Product
Height |
2.3
cm [0.9 in] |
|
Power |
|
|
Power
Source |
USB-Powered |
|
Software |
|
|
OS
Compatibility |
Windows
2000, XP, Vista, 7, 8, 8.1, 10 |
|
Windows
Server 2003, 2008 R2, 2012, 2016, 2019 |
|
Mac
OS 10.6 to 10.12 |
|
Special
Notes / Requirements |
|
|
Note |
OS
Compatibility refers to KVM software only - the KVM itself can be used
without software on any platform |
|
What's
in the Box |
|
|
Included
in Package |
1
- KVM Switch |
|
1
- Software CD |
|
1
- Instruction Manual |
