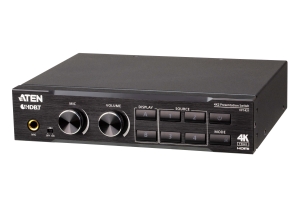

Video
Input |
|
Interfaces |
2
x HDMI Type A female (Black) |
|
1
x VGA (HDB-15) Female (Blue) |
|
1
x HDBaseT (RJ-45) Female (Silver) with selectable
PoH |
|
Max.
Distance |
HDMI:
4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at
15m |
|
VGA:
1080p@60Hz at 15m |
|
HDBaseT:
4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60Hz
at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910
Cat6) |
|
Video
Output |
|
Interfaces |
1
x HDMI Type A female (Black) |
|
1
x HDBaseT (RJ-45) Female (Silver) with selectable
PoH |
|
Max.
Distance |
HDMI:
4K@60Hz (4:4:4) at 5m; 4K@30Hz at 10m; 1080p@60Hz at
15m |
|
HDBaseT:
4K@30Hz at 35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60Hz
at 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910
Cat6) |
|
Video |
|
Max.
Resolution |
HDMI:
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
|
VGA:
Up to 1080p@60Hz |
|
HDBaseT:
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) ; Up to 4096 x 2160 / 3840
x 2160 @ 30Hz (4:4:4) |
|
Compliance |
HDMI
(3D, Deep Color, 4K); 4K HDR |
|
HDCP
2.2 Compatible; Consumer Electronics Control
(CEC) |
|
Audio |
|
Input |
Stereo
Audio (HDMI/HDBT): 1 x mini stereo Jack female
(Green) |
|
Stereo
Audio (VGA): 1 x mini stereo Jack female
(Green) |
|
Microphone:
1 x 6.3mm Jack connector (with selectable phantom
power) |
|
Output |
Line
Out (Unbalanced): 1 x Captive Screw Connector,
3-pole |
|
Optical
Audio: 1 x Toslink (Black) |
|
Control |
|
RS-232 |
1
x Captive Screw Connector, 3-pole |
|
IR |
1
x Mini Stereo Jack Female (Black) |
|
Ethernet |
1
x RJ-45 Female (Silver) |
|
Contact
In |
1
x Captive Screw Connector, 5-pole |
|
LED
Out |
1
x Captive Screw Connector, 5-pole |
|
LED
out power: +5 VDC, 0.2 A |
|
IR
Channel |
HDBaseT
In : 1 x Mini Stereo Jack Female (Black) |
|
HDBaseT
Out : 1 x Mini Stereo Jack Female (Black) |
|
RS-232
Channel |
HDBaseT
In : 1 x Captive Screw Connector, 3-pole |
|
HDBaseT
Out : 1 x Captive Screw Connector, 3-pole |
|
Switches |
|
Power |
1
x Pushbutton (LED: Green / Orange) |
|
1
x Slide Switch (+48V Phantom Power) |
|
1
x Slide Switch (PoH) |
|
Video
Input Port Selection |
4
x Pushbutton (LED: Green) |
|
Video
Output Port Selection |
2
x Pushbutton (LED: Orange) |
|
Selection |
Mic:
1 x Knob |
|
Volume:
1 x Knob |
|
Mode
/ Unlock: 1 x Pushbutton |
|
EDID
Settings |
EDID
Mode: ATEN Default / Display A / Remix |
|
Connectors |
|
Power |
1
x DC Jack (Black) |
|
Power
Consumption |
DC12V:14.93W:110BTU |
|
Environmental |
|
Operating
Temperature |
0-40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
1.16
kg ( 2.56 lb ) |
|
Dimensions
(L x W x H) |
20.00
x 17.01 x 4.40 cm |
|
(7.87
x 6.7 x 1.73 in.) |
|
Carton
Lot |
3
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
