All stock codes associated to this product
VE781030AT, VE781030-AT

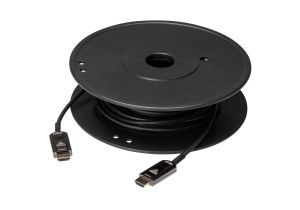

Aten VE781030 30M True 4K HDMI Active Optical Cable (True
4K@30m)
Overview
ATEN VE781030 True 4K HDMI Active Optical Cable utilizes AOC technology that
enables conversion between input signals and optical signals for optimum high
bandwidth data transmissions. The EMI-resistant optical cables come in 30m with
full support of True 4K resolutions. It is fully compliant with HDCP 2.2
standards and meets HDMI specifications including 3D, deep color, and data rates
up to 18 Gbps. Supported Dolby True HD and DTS-HD Master Audio, the optical
cables guarantee lossless audio signal transmissions. The VE781030 optical cable
is an ideal solution for extending the reach of your digital signage in a wide
range of settings, such as traffic stations, shopping centers, and hospital
facilities.
- Supports resolution up to True 4K (4096 x 2160 @ 60Hz
4:4:4)
- HDMI (3D, Deep Color, True 4K, HDR, ARC); HDCP 2.2
compliant
- Extends True 4K signals up to 30m
- Reduced EMI and RFI for lower noise interference
- High data transfer rate of 18 Gbps
- Supports multi audio channel Dolby TrueHD and DTS-HD Master
Audio
- Robust cable pulling strength (Max.10 kg) and compression load resistance
(Max.50 kg)
- Plug-and-play
Specifications
|
Cable
Length |
30M
/ 98.4ft |
|
Cable
Type |
Hybrid
type with optical fiber (OM3) and copper wire |
|
Video
Input |
|
Interfaces |
1
x HDMI 19-pin Type-A Male |
|
Video
Output |
|
Interfaces |
1
x HDMI 19-pin Type-A Male |
|
Video |
|
Max.
Data Rate |
18
Gbps (6 Gbps per Channel) |
|
Max.
Pixel Clock |
600
MHz (Max.) |
|
Max.
Resolutions / Distance |
Up
to 4096 x 2160 / 3840 x 2160 @60Hz (4:4:4) /
30M |
|
*Color
sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 |
|
*Color
Depth: 30 / 36 / 48 bit |
|
Compliance |
HDMI
(3D, Deep Color, 4K, HDR, ARC) |
|
HDCP
2.2 |
|
Communication |
|
Signals |
TMDS
/ HDCP 2.2 / EDID / CEC |
|
Audio |
|
Input |
PCM
8-channel, Dolby Digital True HD, DTS-HD Master
Audio |
|
Output |
PCM
8-channel, Dolby Digital True HD, DTS-HD Master
Audio |
|
Conductor |
|
Construction |
7
x Tinned Copper wire strand |
|
4
x OM3 Optical Fiber (50/125um) |
|
Notification |
Bend
Radius: 20mm (Min.) |
|
Compression
Load Resistance: Max. 50kg (500N) |
|
Cable
Filler: Kevlar |
|
Cable
Marking: ATEN INTERNATIONAL --- HIGH SPEED HDMI HYBRID ACTIVE OPTICAL
CABLE 4K@60Hz 18Gbps -- PVC CE EU RoHS EC
ZONE/DEVICE |
|
*
NO external power required |
|
Certifications |
|
Certifications |
Safety
and Emission: CE / FCC / RoHS / REACH / UL
VW-1 |
|
EMC
Class-A / Class-B |
|
Power
Consumption |
DC5.0V:0.25W:0.05ABTU |
|
Jacketed |
|
Material |
PVC
(85P) |
|
Color:
Black |
|
Environmental |
|
Operating
Temperature |
0C
to 50C (32
to 122) |
|
Storage
Temperature |
-20C
to 70C (-4
to 158) |
|
Humidity |
0
- 85% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Connector
Case: Zinc Alloy |
|
Weight |
0.90
kg ( 1.98 lb ) |
|
Cable
Outer Dimension |
4.5mm
( 0.2mm) |
|
Carton
Lot |
5
pcs |
