All stock codes associated to this product
VE801T-AT-U, VE801TATU, KVA-VE801T

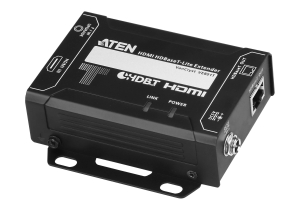

Aten VE801T HDMI HDBaseT-Lite Transmitter (4K@40m) (HDBaseT Class
B)
Overview
The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to
extend signals up to 70m from the source using one Cat 5e/6/6a cable. It
supports HDMI features that include 3D, Deep Color and 4K image resolutions,
plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T
all-in-one design provides an easy method for mounting the device in any
location. The side panel provides slip-resistant grooves that help prevent
accidental drops when installing the unit. The grooves also enhance the ability
to see the LED status lights. The VE801T is perfect for digital entertainment
centers or any installation that requires superior HDMI video quality to be
extended at great distances.
* Compatible HDBaseT Receiver Units: VE801R
- Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6
cable
- HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
- Superior video quality up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN
2L-2910 Cat 6 cable)
- HDBaseT Anti-jamming resists signal interference during high-quality video
transmission using HDBaseT technology
- Plug-and-play
- Rack-mountable
Specifications
|
Video
Input |
|
Interfaces |
1
x HDMI Type A Female (Black) |
|
Impedance |
100 |
|
Max.
Distance |
3
m |
|
Video |
|
Max.
Data Rate |
10.2Gbps
(3.4Gbps per lane) |
|
Max.
Pixel Clock |
340
MHz |
|
Compliance |
HDMI
(3D, Deep Color, 4K) |
|
HDCP
Compatible |
|
Consumer
Electronics Control (CEC) |
|
Max.
Resolutions / Distance |
Up
to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910
Cat6); |
|
1080p@60m
(Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) |
|
*4K
supported: |
|
4096
x 2160 / 3840 x 2160 @ 60Hz (4:2:0); |
|
4096
x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
|
Audio |
|
Input |
1
x HDMI Type A Female (Black) |
|
Connectors |
|
Power |
1
x DC Jack (Black) with locking |
|
Unit
To Unit |
1
x RJ-45 Female |
|
Power
Consumption |
DC5V:1.86W:9BTU |
|
Environmental |
|
Operating
Temperature |
0
- 50C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0%
- 80% RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.24
kg ( 0.53 lb ) |
|
Dimensions
(L x W x H) with bracket |
9.86
x 8.70 x 3.00 cm |
|
(3.88
x 3.43 x 1.18 in.) |
|
Dimensions
(L x W x H) without bracket |
9.42
x 6.60 x 2.90 cm |
|
(3.71
x 2.6 x 1.14 in.) |
