Interfaces |
|

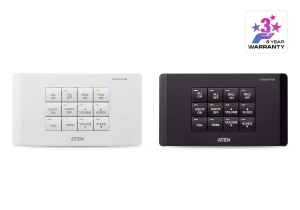

Keypad
Layout |
6~12
buttons customizable in 125 keypad layouts |
|
Serial |
2
x Bi-directional RS-232 Port |
|
(2
x 3-Pole Terminal Block Connector); |
|
Baud
Rate: 300 to 115200 (default: 9600); |
|
Data
Bit: 8 (default) or 7; |
|
Stop
Bit: 1 (default) or 2; |
|
Parity:
None (default), even or odd |
|
Relay |
2
x Relay Channel (2 x 2-Pole Terminal Block
Connector); |
|
Normally
open, isolated Relays; |
|
Contact
Rating: Max 24 VDC, 1A |
|
I/O |
1
x Digital Input Channel |
|
(1
x 2-Pole Terminal Block Connector); |
|
VDC
Mode |
|
Input
Voltage Range: 0 to 5 VDC; |
|
Programmable
Range: 1 to 5 VDC; |
|
Dry
Contact Mode |
|
Pull-up
2k ohms to + 5 VDC |
|
Ethernet |
1
x RJ-45 Female, 10/100Base-T |
|
Supported
Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
|
DHCP-enabled.
The following default IP settings will be used if no IP is assigned within
30 seconds: |
|
IP:
192.168.0.60 |
|
Subnet
Mask: 255.255.255.0 |
|
Switches |
|
Controller
ID |
1
x 16-segment Switch |
|
Reset
Button |
1
x Semi-recessed Pushbutton |
|
Power
Consumption |
DC5V:1.15W:5BTU |
|
POE:1.44W:7BTU |
|
Environmental |
|
Operating
Temperature |
0 50C |
|
Storage
Temperature |
20 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Plastic |
|
Weight |
0.19
kg ( 0.42 lb ) |
|
Dimensions
(L x W x H) |
8.32
x 14.76 x 4.80 cm |
|
(3.28
x 5.81 x 1.89 in.) |
|
License |
|
Max.
No. Allowed |
10
licenses |
|
Note |
Each
time a mobile device connects to an ATEN Control Pad for remote control,
one license on the Control Pad will be occupied. To purchase and add
additional licenses to your ATEN Control Pad, contact your local sales
representative for more information. |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
