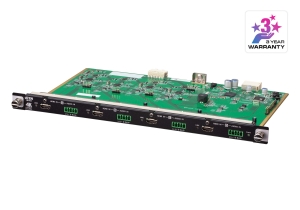

Aten VM7824 4-Port True 4K HDMI Input Board
Overview
The VM7824 is a True 4K HDMI input board that works with an ATEN Modular
Matrix Switch to offer an easy way to route 4 HDMI audio/video sources to 4
displays with True 4K high-definition images support. In addition to the HDMI
interface that carries digital A/V signal, the VM7824 also provides 4 stereo
audio input ports that enable stereo audio embedding.
All of ATENs VM series input/output boards support hot-swappable installation
that gives system integrators great flexibility and efficiency for maintenance.
The VM series input/output boards along with ATEN Modular Matrix Switches offer
ideal solutions that perfectly meet your demands for multi-interface video
applications.
- Compatible with the VM Modular Matrix Switches; mix and match with modular
I/O boards of any type for optimum flexibility
- True 4K Resolutions handles uncompressed video resolutions up to 3840 x
2160 / 4096 x 2160 @ 60Hz (4:4:4)*
- True 4K EDID Expert selects optimum EDID settings for smooth power-up,
high-quality display, and use of the best resolution across different
screens
- Audio-enabled, HDMI audio can be extracted and stereo audio can be
embedded
- Cable Quality Tester examines the HDMI cable quality
- HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
- Consumer Electronics Control (CEC) support
*Note: True 4K resolutions are only supported when the VM7824 and VM8824 are
used with the VM3250.
Specifications
|
Video
Input |
|
Interfaces |
4
x HDMI Type A Female (Black) |
|
Impedance |
100
|
|
Max.
Distance |
Up
to 5.0m |
|
Video |
|
Max.
Data Rate |
18.0
Gbps (6.0 Gbps Per Lane) |
|
Max.
Pixel Clock |
600
MHz |
|
Compliance |
HDMI
(3D, Deep Color, 4K) |
|
HDCP
2.2 Compatible |
|
Consumer
Electronics Control (CEC) |
|
Max.
Resolution |
4096x2160/3840x2160@60Hz
(4:4:4) |
|
Audio |
|
Input |
4
x Captive Screw Connector, 5 Pole (Green) |
|
*Audio
signal type: stereo, balanced/unbalanced. |
|
Power
Consumption |
DC12:8.95W:42BTU |
|
Environmental |
|
Operating
Temperature |
0
- 40C |
|
Storage
Temperature |
-20
- 60C |
|
Humidity |
0
- 80% RH, Non-Condensing |
|
Physical
Properties |
|
Housing |
Metal |
|
Weight |
0.55
kg ( 1.21 lb ) |
|
Dimensions
(L x W x H) |
35.20
x 23.80 x 2.33 cm |
|
(13.86
x 9.37 x 0.92 in.) |
|
Carton
Lot |
2
pcs |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
