All stock codes associated to this product
PATA2SATA3, 1606950, 0065030836982
| Ports & interfaces |
|---|
| Connector 1 | 2 x SATA Data 7 pin M/1 x IDE 40 pin F |
| Connector 2 | SP4 M |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Design |
|---|
| Housing material | Plastic |
| Product colour | Black |
| Performance |
|---|
| Housing material | Plastic |
| Product colour | Black |
| Compatible products | 2.5" SATA 3.5" EIDE 3.5" SATA 5.25" SATA 5.25" EIDE |
| Technical details |
|---|
| Housing material | Plastic |
| Compatible products | 2.5" SATA 3.5" EIDE 3.5" SATA 5.25" SATA 5.25" EIDE |
| Weight & dimensions |
|---|
| Weight | 20 g |
| Packaging data |
|---|
| Package width | 173 mm |
| Package depth | 142 mm |
| Package height | 32 mm |
| Package weight | 102 g |
| Logistics data |
|---|
| Quantity per box | 40 pc(s) |
| Other features |
|---|
| Dimensions (WxDxH) | 50 x 61 x 11 mm |
| Quantity per box | 40 pc(s) |

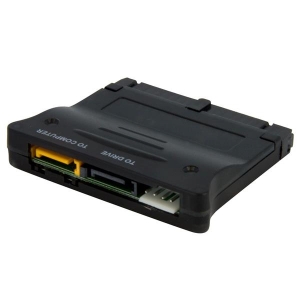

Bi-directional adapter converts IDE to SATA or SATA to IDE
The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.
A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.
In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.
The StarTech.com Advantage
- A single, versatile adapter can be used to connect an IDE device to a SATA motherboard or vice-versa without any drivers or software installation
- Supports not only hard drives, but CD/DVD optical drives as well
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
