All stock codes associated to this product
450FBLCLC15, 4564288, 0065030882439
| Features |
|---|
| Fibre optic type | OM4 |
| Cable length | 15 m |
| Connector 1 | LC |
| Connector 2 | LC |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 100 Gbit/s |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Wavelengths supported | 850 nm |
| Harmonized System (HS) code | 85447000 |
| Product colour | Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Technical details |
|---|
| Harmonized System (HS) code | 85447000 |
| Sustainability certificates | REACH, RoHS |
| Doesn't contain | Halogen |
| Operational conditions |
|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions |
|---|
| Cable length | 15 m |
| Weight | 180 g |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 32 mm |
| Package weight | 205 g |
| Packaging data |
|---|
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 32 mm |
| Package weight | 205 g |
| Quantity per pack | 1 pc(s) |
| Logistics data |
|---|
| Quantity per pack | 1 pc(s) |

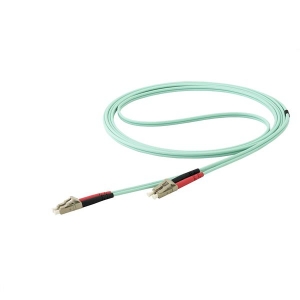

This LC to LC Multimode Duplex Fiber Optic Patch cable offers reliable connections for 40GBase-SR4, 100GBase-SR10, SFP+ and QSFP+ transceivers in your 40 and 100 Gigabit networks.
Built for Performance With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.
Maximum Compatibility This fiber-optic patch cord is backward compatible with your existing 50/125 equipment, ensuring a reliable connection with legacy LANs.
High Quality Construction Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration. Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability. 450FBLCLC15 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
