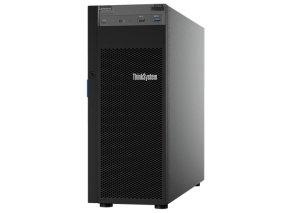

7Y45A01NAU | Lenovo ThinkSystem ST250 server 3.6 GHz 16 GB Tower (4U)

Processor
Tjunction	100  Â°C
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	80 W
Tcase	73  Â°C
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Stepping	U0
Scalability	1S
Processor threads	12
Processor package size	37.5 x 37.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Processor code	SR3WR
Processor cache type	Smart Cache
PCI Express configurations	1x16,2x8,1x8+2x4
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory channels supported by processor	Dual
Memory bandwidth supported by processor (max)	41.6 GB/s
Maximum number of PCI Express lanes	16
Maximum internal memory supported by processor	128 GB
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
ECC supported by processor	Yes
Bus type	DMI3
Processor cache	8 MB
Processor frequency	3.6 GHz
Processor family	Intel Xeon E
Processor model	E-2144G
Processor cores	6
Number of processors installed	1
Processor boost frequency	4.5 GHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory slots	4
Memory layout (slots x size)	1 x 16 GB
Memory clock speed	2666 MHz
Storage
RAID support	Yes
RAID levels	0,1,5,10,50
Supported HDD sizes	2.5,3.5,5.25"
Number of SSDs supported	1
Hot-swap	Yes
Supported SSD sizes	M.2
Graphics
On-board graphics card OpenGL version	4.5
On-board graphics card model	Intel UHD Graphics P630
On-board graphics card ID	0x3E96
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card base frequency	350 MHz
Number of displays supported (on-board graphics)	3
Maximum on-board graphics card memory	128 GB
Discrete graphics card	No
On-board graphics card family	Intel Â® UHD Graphics
On-board graphics card	Yes
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	1
VGA (D-Sub) ports quantity	1
Serial ports quantity	1
S/PDIF out port	No
S/PDIF in port	No
InfiniBand	No
FireWire 800	No
Ethernet LAN (RJ-45) ports	3
Dual Link DVI	No
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x4 (Gen 3.x) slots	1
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express slots version	3.0
Design
Chassis type	Tower (4U)
Rack mounting	Yes
Product colour	Black
Performance
Performance management	XClarity Enterprise
Operating system installed	No
Compatible operating systems	- Microsoft, SUSE, Red Hat, VMware vSphere - Microsoft Windows Client OS — Win10
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Management platform	XClarity Standard
Software
Operating system installed	No
Compatible operating systems	- Microsoft, SUSE, Red Hat, VMware vSphere - Microsoft Windows Client OS — Win10
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Â® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Â® Turbo Boost Technology	2.0
Intel TSX-NI version	1.00
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Secure Key Technology version	1.00
Intel Â® Secure Key	Yes
Intel Â® Quick Sync Video Technology	Yes
Intel Â® InTru™ 3D Technology	Yes
Intel Â® Hyper Threading Technology (Intel Â® HT Technology)	Yes
Intel Enhanced Halt State	Yes
Intel Â® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel Clear Video Technology	Yes
Intel Â® Clear Video HD Technology (Intel Â® CVT HD)	Yes
Intel Â® AES New Instructions (Intel Â® AES-NI)	Yes
Intel 64	Yes
Processor ARK ID	191043
Enhanced Intel SpeedStep Technology	Yes
CPU configuration (max)	1
Power
Redundant power supply (RPS) support	Yes
Number of redundant power supplies installed	1
Power supply	550 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	175 mm
Weight	23.6 kg
Height	430 mm
Depth	566 mm
Other features
CPU configuration (max)	1

---

Enterprise capacity The Lenovo ThinkSystem ST250 is a fully-featured, single-socket, easily-managed rackable tower server for the small-to-medium-sized business (SMB) or remote office/ branch office (ROBO) environment. The ST250 harnesses enterprise-level server power with the next-generation Intel Â® Xeon Â® E-2100 processors in tandem with a wide range of storage options and seamless integration with Lenovo’s XClarity management system. From web serving, system management, and near-side data backup, the ST250 supports several workloads. Intel SGX provides security for blockchain applications.
Enterprise flexibility and manageability The ThinkSystem ST250 features a highly flexible design that deploys server performance where it's needed and adapts as requirements change over time. Expand storage configurations with up to 16x 2.5-inch hot-swappable HDDs/SSDs and an internal M.2 module, while protecting data with various RAID options. Increase performance and connectivity with GPU support, multiple PCIe slots, and lightning-quick TruDDR4 memory. Lenovo XClarity software provides easy-to-use systems management and dramatically reduces provisioning time, while an array of XClarity integrators allow utilization of XClarity through external IT applications to streamline IT management and contain costs.
Designed for ROBO use The ThinkSystem ST250 is engineered for the remote office / branch office environment. A compact footprint and office-quiet cooling system satisfy on-premises use. Power supply redundancy options with dual-redundant AC power at 550W result in critical asset dependability. These components increase server uptime, workplace productivity, and asset security; the ideal solution for an environment without a dedicated on-site IT support system.
