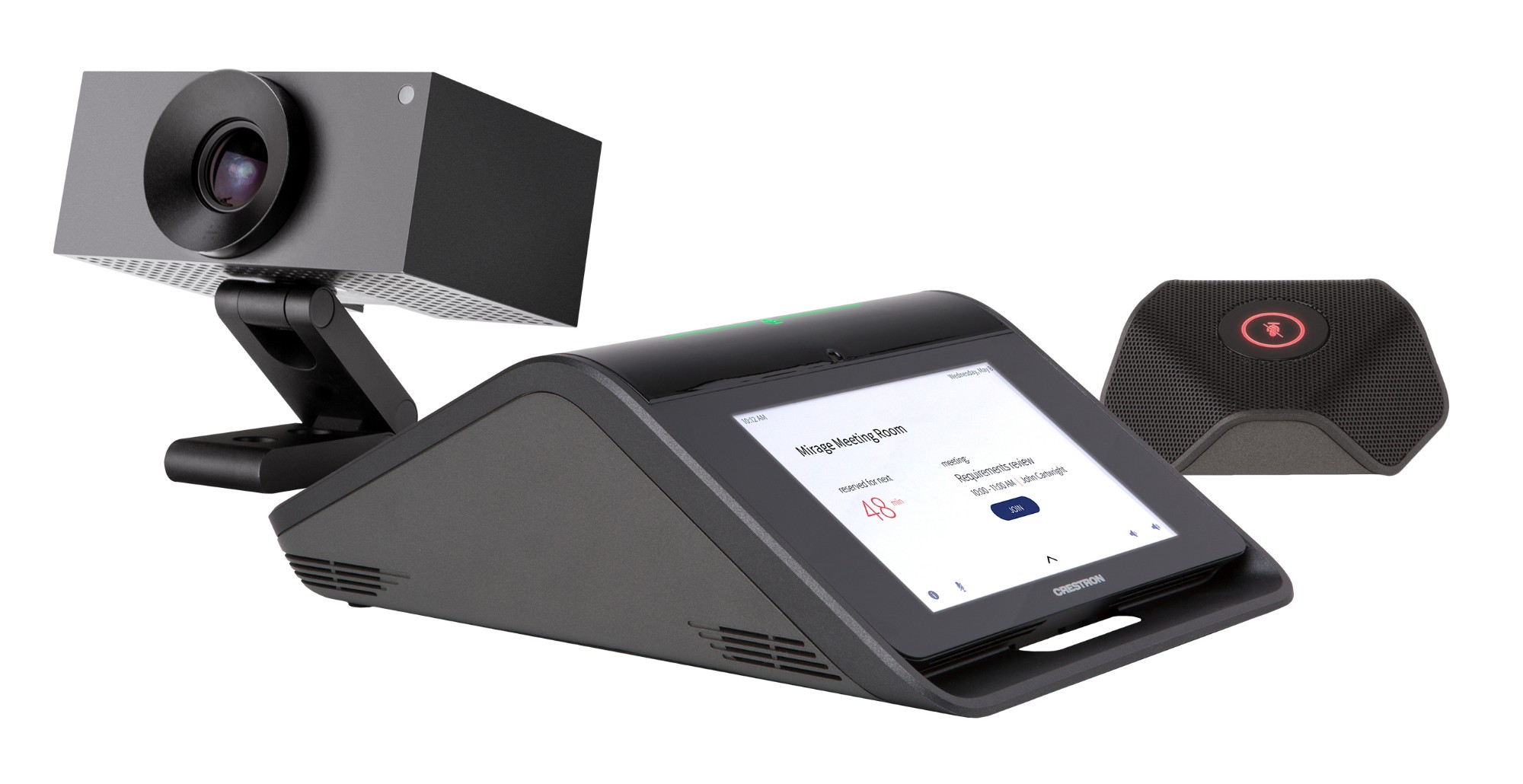

Crestron UC-M70-U video conferencing system 20.3 MP Ethernet LAN Group video conferencing system

Manufacturer: CRESTRON
Category: Telecom & Navigation
Sub-Category: Video Conferencing Systems
SKU: UC-M70-U
EAN: 8592978429164

Description

The Crestron Flex UC‑M70‑U provides a complete conferencing and collaboration solution for open‑platform UC applications. It supports a single video display, and features the Crestron Flex tabletop conferencing device (CCS‑UC‑1‑AV), AI collaboration camera (UC-CAM-L1), mic pod (CCS-UCA-MIC), cables, and power supply. Intuitive User Interface with Impressive Audio The Crestron Flex Tabletop Conference device (CCS-UC-1-AV) provides a superior conferencing and collaboration experience with its large 7 in. HD display, integrated 360° quad microphone array, and an AEC-enabled USB speakerphone that supports full-duplex wideband audio performance. High-Definition Video Conferencing The included AI collaboration camera (UC-CAM-L1) features a wide-angle 103° diagonal field of view to capture an entire conference room in Full HD 1080p video resolution. High precision aspherical optics, 20.30 MP CMOS sensor, and advanced video processing ensure a clear video image free from light or noise artifacts. Genius Framing digital autozoom intelligently detects the people in the room and frames them for an optimal view. Voice Calling & Audio Conferencing The CCS-UC-1-AV is a full-featured VoIP conferencing speakerphone that’s fully compatible with major SIP-compliant phone systems. Its advanced design provides highly intelligible, full-duplex communication for every participant around a conference table. Dialing and answering calls is easy and intuitive using the large HD color touch screen. Corporate directory access (LDAP) enables one-touch dialing from the customer’s centrally managed directory. The CCS-UC-1-AV can pair with a mobile phone using Bluetooth connectivity to make or join phone calls, or to use as a speaker and/or microphone for an application running on a smartphone. When used for calls, controls for the Bluetooth enabled phone appear on the touch screen, enabling instant connectivity with the press of a button. The CCS-UC-1-AV functions like any USB Audio class device, allowing you to connect a laptop computer via USB to improve audio performance for any softphone, multimedia, or audio conferencing application running on the laptop. BYOD Multimedia Presentation Connect a display device to the CCS-UC-1-AV's HDMI output port to enable high-definition video presentation from all types of BYOD sources. Connect an AV source to the HDMI input port to present full-motion HD video content on the room display. Sources with DisplayPort or USB Type-C outputs can also be connected using an optional Crestron video cable system (CBL-MULTI-6 or CBL-MULTI-12, sold separately). Use the built-in AirMedia technology for wireless presentation of content from a laptop, smartphone, or tablet device via the room’s Wi-Fi wireless network.

Specifications

Performance
Product typeGroup video conferencing system
Product colourBlack
Number of cameras1
Technical details
Product typeGroup video conferencing system
Product colourBlack
Number of cameras1
Harmonized System (HS) code85176990
Video
HD typeFull HD
Megapixel (approx.)20.3 MP
Maximum frame rate30 fps
Audio
RMS rated power7 W
Frequency range90 - 22000 Hz
Number of speakers1
Network
Ethernet LANYes
Ethernet LAN data rates100 Mbit/s
Supported network protocolsDHCP, TCP/IP, UDP/IP, CIP, SSL, TLS, SSH, SFTP, SRTP
Networking standardsIEEE 802.1x, IEEE 802.3at
Camera
Image sensor size1"
Horizontal field of view92°
Effective sensor resolution20.3 MP
Megapixel (approx.)20.3 MP
Sensor typeCMOS
Aperture range (F-F)2.9 - 2.9
Vertical field of view65°
Diagonal field of view103°
Display
DisplayTFT
Display diagonal17.8 cm (7")
Display resolution1280 x 800 pixels
TouchscreenYes
Touchscreen typeCapacitive
Features
TelepresenceNo
Logistics data
Harmonized System (HS) code85176990
Weight & dimensions
Camera dimensions (WxDxH)122 x 89 x 53 mm
Camera weight600 g
Packaging content
Cables includedHDMI, USB
