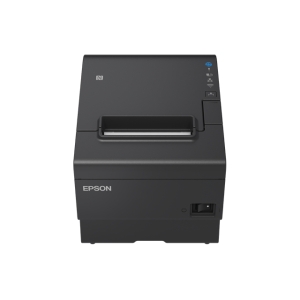

C31CJ57632 | Epson TM-T88VII-632 180 x 180 DPI Wired Thermal POS printer

Printing
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Performance
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Maximum resolution	180 x 180 DPI
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Paper handling
Media thickness	48 - 80 mm
Supported paper width	80 mm
Printing media thickness	48 - 80  Âµm
Maximum roll diameter	8.3 cm
Ports & interfaces
Connectivity technology	Wired
USB port	Yes
USB connector	USB Type-A / USB Type-B
Serial interface	Yes
Optional connectivity	Wireless LAN
Near Field Communication (NFC)	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Print technology
Type	POS printer
Print technology	Thermal
Print speed	500 mm/sec
Print quality
Maximum resolution	180 x 180 DPI
Technical details
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Product colour	Black
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Buffer size	4 KB
Autocutter durability	3 million cuts
Features
Media thickness	48 - 80 mm
Mean cycles between failures (MCBF)	70000000
Mean time between failures (MTBF)	360000 h
Product colour	Black
Certification	CE
Built-in barcodes	AZTECCODE, Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1-128, PDF417, UPC-A, UPC-E
Autocutter durability	3 million cuts
Sound pressure level (printing)	52 dB
Print head life	200 km
Sound pressure level (standby)	52 dB
Wall mountable	Yes
Mounting position	Horizontal/Vertical
Paper save function	Yes
Design
Product colour	Black
Memory
Buffer size	4 KB
Endurance
Mean time between failures (MTBF)	360000 h
Power
AC input voltage	24 V
Power source type	DC
Power consumption (printing)	27.6 W
Operational conditions
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 45  Â°C
Operating relative humidity (H-H)	10 - 90%
Certificates
Certification	CE
Weight & dimensions
Width	145 mm
Depth	195 mm
Height	148 mm
Weight	1.6 kg
Other features
Mean cycles between failures (MCBF)	70000000
Buffer size	4 KB
Print head life	200 km

---

The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience. These Epson point of sale printers can connect to multiple devices simultaneously. Using multiple interfaces, the printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers. The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters or tills. Ideal for retailers and hospitality businesses looking to tap into the benefits of web and tablet POS services while maintaining compatibility with existing applications, the TM-T88VII series offers an ideal solution for customer-facing businesses of all sizes, and some of the most advanced features on the market.
