All stock codes associated to this product
C31CJ52010, 5730152

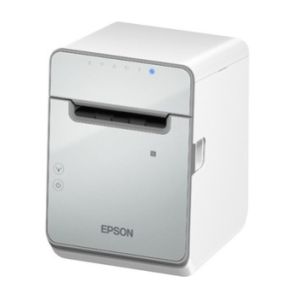

Epson TM-L100 Desktop, Mobile Direct Thermal Printer - Monochrome - Wall Mount - Label/Receipt Print - Ethernet - USB - USB Host - Serial - With Cutter - Black - 80 mm (3.15") Print Width - 170 mm/s Mono - 203 x 203 dpi - For Android, iOS, PC
Liner-free media support, advanced tabletfriendly connectivity and online ordering | Extensive liner-free media support -Epson Tested Media supports high adhesive strength and is ideal for a wide variety of use cases across hospitality, retail and more
Flexible connectivity -for virtually any environment with built-in USB and Ethernet; plus Serial port
Reliability you can count on- engineered for liner-free labels with long auto cutter and printhead life
Online ordering ready- Server Direct Print lets printer retrieve orders from a Web server and print a label without POS software integration
Advanced paper-saving features- white space reduction and character height reduction help reduce media usage up to 47 percent
Label-taken sensor- accepts multiple jobs but only prints one label at a time; prevents continuous printing and labels adhering to each other
Dynamic printing- simultaneously share between legacy POS terminals, tablets and mobile devices with multiple interfaces with the ability to print from cloud servers
Features- Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
- Save your space with the wall-mount option
- The printer is capable of printing sharp and detailed monochrome documents quickly
- A smart and inexpensive solution to print temporary documents
- Capable of printing labels and receipts virtually from anywhere and everywhere
Power Description
Technical Information
| Application/Usage | Desktop |
| Mobile |
| Barcode Symbology Supported | GS1 DataBar Expanded |
| UPC-A |
| Codabar |
| Code 128 |
| Code 39 |
| Code 93 |
| EAN-13 |
| EAN-8 |
| UPC-E |
| GS1 DataBar Limited |
| GS1 DataBar Omnidirectional |
| GS1 DataBar Truncated |
| GS1-128 |
| ITF |
| JAN-13 |
| JAN-8 |
| PDF417 |
| QR Code |
| Maximum Print Width | 80 mm (3.15") |
| Recommended Use | Label/Receipt Print |
| Print Color Capability | Monochrome |
| Mean Time Between Failures (MTBF) | 41.1 Year |
| Mean Cycles Between Failures (MCBF) | 70000000 |
| Character Sets | JIS X0213 |
| KSC5601 |
| Big5 |
| GB18030-2000 |
| JIS X0208-1990 |
| 18 International |
| 128 x 43 Graphic |
| 845 |
| 95 Alphanumeric |
| Fonts Included | ANK Font A (default): 12 x 24 dots |
| ANK Font B: 9 x 17 dots |
| Special Font B: 9 x 24 dots |
| Special Font A: 12 x 24 dots |
| Kanji Font B: 20 x 24 dots (Japanese); 16 x 16 dots (Korean) |
| Kanji Font A: 24 x 24 dots |
| Maximum Print Resolution (dpi) | 203 x 203 |
Software
| Operating System Supported | Development Kit Epson ePOS™ SDK (iOS®, Android™, JavaScript), OPOS ADK/OPOS ADK for .NET (Windows®), Epson JavaPOS ADK (Windows, Linux®), TM Print Assistant (iOS, Android)
Drivers Epson Advanced Printer Driver 6 for TM-L100 (APD), TM Virtual Port Driver |
Warranty
| Additional Warranty Information | 1-year RTB warranty; optional extended warranty available |
Cutter
| Cutting Method | Automatic |
| Cutter | Yes |
Network &Communication
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
Media Types &Handling
| Maximum Roll Diameter | 102 mm |
| Media Type | Receipt |
| Liner-free Label |
| Label |
| Media Sensor | Label Taken Sensor |
| Paper Near End Sensor |
Physical Characteristics
| Weight (Approximate) | 1.90 kg |
| Form Factor | Wall Mount |
| Height | 207 mm |
| Width | 140 mm |
| Depth | 148.5 mm |
| Product Color | Black |
General Information
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | C31CJ52010 |
| Manufacturer Website Address | https://www.epson.com.au |
| Manufacturer | Epson Corporation |
| Product Model | TM-L100 |
| Product Name | TM-L100 Liner-Free Compatible Thermal Label Printer |
| Brand Name | Epson |
Miscellaneous
| Package Contents | - TM-L100 Liner-Free Compatible Thermal Label Printer
- AC Adapter with AC Cable
- Rubber Feet
- Fixing Tape
- Locking Wire Saddle
- 40 mm Paper Guide
- 58 mm Paper Guide (installed)
- Setup Guide
|
| Platform Supported | iOS |
| Android |
| PC |
| Certifications &Standards | - FCC Class A
- ICES-3 Class A
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Cables Included | AC |
| Power Adapter Included | Yes |
