All stock codes associated to this product
ST122UTPA, 2977640, 0065030811408
| Features |
|---|
| Material | Aluminium |
| Daisy chain | No |
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 150 m |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 |
| Product colour | Black |
| Certification | CE, FCC |
| Ports & interfaces |
|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 2 |
| VGA (D-Sub) output ports | 2 |
| Audio output | 2 x 3.5 mm |
| Audio input | 2 x 3.5 mm |
| DC-in jack | Yes |
| Power |
|---|
| Output current | 0.5 A |
| Power consumption (typical) | 6 W |
| External power adapter | Yes |
| Operating voltage | 12 V |
| Weight & dimensions |
|---|
| Receiver dimensions (WxDxH) | 83 x 60 x 20 mm |
| Receiver weight | 181 g |
| Transmitter dimensions (WxDxH) | 83 x 60 x 20 mm |
| Transmitter weight | 181 g |
| Packaging data |
|---|
| Package weight | 1.2 kg |
| Package dimensions (WxDxH) | 92 x 242 x 188 mm |
| Packaging content |
|---|
| Mounting brackets included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Technical details |
|---|
| Audio support | Yes |
| Sustainability certificates | RoHS |

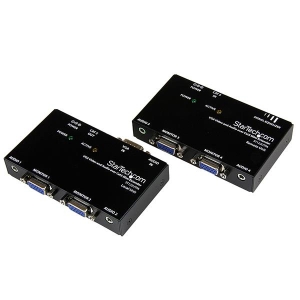

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft. The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage - Cost-effective VGA extension through non-proprietary network cabling - Built-in mounting brackets, for a tidy and professional installation
