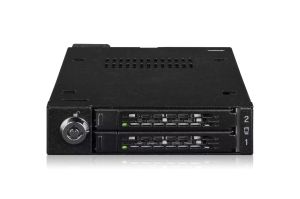

Icydock MB092VK-B ToughArmor Rugged 2 Bay 2.5" U.2/U.3 NVMe SSD PCIe 4.0 Mobile Rack for External 3.5" Drive Bay

IMG 1 of 4
Our Price:
$267.50
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
536627
(?) Brand:
Icydock Web Site
Manuf No:
MB092VK-B
MB092VKB
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/12/2023
Details Files Images & Video
All stock codes associated to this product
MB092VK-B, MB092VKB
  • Note: To utilize an M.2, U.2, or U.3 NVMe SSD in a PCIe 16x or 8x slot, the motherboard or add-on card must support PCIe Bifurcation. This mode divides PCIe lanes into specific configurations like x4, x4, x4, x4 for a 16x slot or x4, x4 for an 8x slot, ensuring the SSD can be read by the system. For compatible hardware, please refer to theFAQ section. If your hardware is not listed there, pleasecontact usfor assistance.
  • The ToughArmor MB092VK-B is a Ruggedized Removable DUAL U.2/U.3 NVMe PCIe 3.0/4.0 Mobile Rack Enclosure, supporting up to 64Gbps data transfer speeds through Slimline SAS (SFF-8654 4i) connection. This drive mobile rack fits an external 3.5 drive bay (floppy bay) space. With the advantage of removable drive trays in the frontal drive bay space, users can effortlessly access enterprise U.2 or U.3 drives without disassembling the computer case.
  • Innovative Removable Drive Design
    U.2 NVMe SSDs are typically designed to be installed internally, which can be tough to access when maintenance is needed. With the MB092VK-B, the U.2 drives are brought to the frontal 3.5 drive bay space where they can be easily accessed, making it a more efficient and straightforward process. In addition, each removable drive tray can support U.2 SSDs from 5mm to 9.5mm in height.-inch and M.2 installed simultaneously.
  • Superior Performance
    To unlock the full performance of 64Gbps under PCIe 4.0 specification, the MB092VK-B uses 2x Slimline SAS (SFF-8654 4i) connectors and is also backward compatible with U.2 NVMe PCIe 3.0 x4 SSD up to 32Gbps.
  • Full Metal Protection
    Ensuring the drive enclosure can be relied upon for many years, the MB092VK-B is constructed out of heavy-duty metal throughout the entire device, including the drive trays, which are capable of holding up in harsh environments, such as military and medical systems that require a flammability rating.
  • Optimal Cooling Efficiency
    The built-in 25mm cooling fan efficiently disperses the heat generated by the U.2 NVMe SSDs through the intelligently-placed ventilation holes around the enclosure. To adjust the fan speed, simply reposition the fan speed jumper in the rear (High, Low, & Off).
  • Exceptional Product Compatibility
    The MB092VK-B is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations. For more information on product compatibility, clickhere.
  • Packed with Features
    The Slimline-SAS and SATA power connectors are compatible with cables with a locking latch design. So once the cables are connected, they will be secure in place.
  • An LED status light built into the tray lets you know when your drive is powered up and in use. The LED will automatically shut off when no drive is installed to save power.
  • For an additional physical layer of security, the included 2-segment key-lock can be used to protect against unwanted access and secure drives in rough environments, such as military applications and in-vehicle PCs.
  • (Optional) M.2 NVMe SSD to U.2 NVMe SSD Adapter
    Converting your M.2 NVMe SSD into U.2 NVMe SSD withEZConvert MB705M2P-Badapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs.
  • (Optional) 3.5" to 5.25" Drive Bay Bracket
    Converting your 5.25" device bay into a 3.5" device bay withFlex-Fit MB343SPdrive bay bracket, it features a solid one-piece design with additional dual 2.5" drive slots for extra drive storage.
  • Need Support for 15mm Thick U.2/U.3 SSDs?
    If your U.2/U.3 NVMe SSD has a height of 15mm, the ToughArmorMB105VP-Bdual bay U.2/U.3 NVMe SSD mobile rack enclosure for 5.25" bays has got you covered. It accommodates two U.2/U.3 NVMe SSDs ranging from 5-15mm in height. Plus, it's equipped with a high-performance 40x20mm cooling fan that can reduce your SSD's operating temperature by up to 5C compared to a fan-less SSD mobile rack enclosure. Perfect for applications or systems demanding high SSD capacity and efficient cooling.
  • Wide Range of Compatibility
    EZ-Slide Micro TrayMB992TRAY-Boffers effortless interchangeability among different ToughArmor models.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ToughArmor MB092VK-B
TAATrade Agreements Act Compliance
ULSafety Standard Certification
UL94Flammability of Plastic Materials
FCCFederal Communications Commission Compliance
Wide TemperatureMIL-STD-810H - Method 501.7 & 502.7
*IEC 60529 (IPX5)Protection against water jets
*The drive mobile rack enclosure needs to have a customized front water-resistant panel added to pass the IEC 60529 (IPX5) certification. Water resistance refers to preventing water or dust from entering the enclosure through the front panel when the product is installed in the chassis, rather than making the entire enclosure water-resistant.

Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at[email protected]
Main Features
Fits 2x 2.5 U.2/U.3 NVMe SSDs from 5-9.5mm height
Installs into standardized external 3.5 device bay (floppy bay)
Uses 2x Slimline SAS (SFF-8654 4i) connector, pinout defined by SFF-9402 Rev 1.1
Supports NVMe 4.0 64Gbps transfer rates per drive bay
Ruggedized full-metal enclosure and drive trays
2-segment key lock for additional physical security
Eagle-hook tray latch securely holds the tray inside the enclosure
EMI Grounding protects SSDs from electrical damage
Active Power Technology (APT) saves power by shutting down when no drives are installed
Industry-leading 5 years limited warranty against all defects
Complimentary support from a professionally trained US-based technical support agent

Specification
Model Number :MB092VK-B
Colors :Black
Support Drive Size :2.5" (up to 9.5mm height)
Compatible Drive Type :U.2 or U.3
Number of Drives :2
Drive Bay :1 x 3.5" drive bay
Host Interface :2 x SlimSAS SFF-8654 4i, pin-out defined by SFF-9402 Rev 1.1
(Tri-mode HBA/RAID card compatible)
Power Input :1 x 15pin SATA power connector
Transfer Rate :Up to 64Gbps (depending on SSD speed)
Support SSD Capacity :No limitation
Drive Cooling :1 x 25x25x10mm fan
Structure / Material :Full metal
Hot Plug :Yes
Product Dimension (L x W x H) :143 x 101.2 x 25.4mm
Product Net Weight :415.6 g
Package Gross Weight :482 g
Drive Activity LED Indication :Drive power: solid green; Drive access: flashing green
Package Contents :Device, user manual, screws,keys
U.2 Connector Insertion Rate :10,000
Humidity :5%~65% RH
Operating Temperature :0C to 60C (32F to 140F)
Storage Temperature :-35C to 70C (-31F to 158F)
Compliance :CE, RoHS, REACH
Warranty :5 years limited warranty
