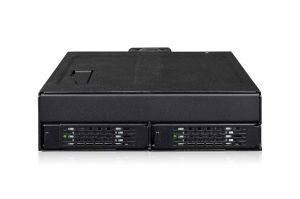

Icydock MB105VP-B ToughArmor 2 Bay 2.5" U.2/U.3 NVMe SSD PCIe 4.0 Mobile Rack Enclosure for External 5.25" Drive Bay (1 x SlimSAS SFF-8654 8i)

IMG 1 of 4
Our Price:
$288.55
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
536628
(?) Brand:
Icydock Web Site
Manuf No:
MB105VP-B
MB105VPB
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/12/2023
Details Files Images & Video
All stock codes associated to this product
MB105VP-B, MB105VPB
  • Note: To utilize an M.2, U.2, or U.3 NVMe SSD in a PCIe 16x or 8x slot, the motherboard or add-on card must support PCIe Bifurcation. This mode divides PCIe lanes into specific configurations like x4, x4, x4, x4 for a 16x slot or x4, x4 for an 8x slot, ensuring the SSD can be read by the system. For compatible hardware, please refer to theFAQ section. If your hardware is not listed there, pleasecontact usfor assistance.
  • The ToughArmor MB105VP-B is a 5.25-inch ruggedized full-metal removable dual U.2/U.3 NVMe PCIe 4.0 SSD mobile rack enclosure, supporting up to 64Gbps data transfer speeds through Slimline SAS (SFF-8654-8i) connection in a single 5.25-inch (optical drive) bay. In addition, the innovative removable drive tray design allows users to effortlessly access U.2 or U.3 drives from the front of the system.

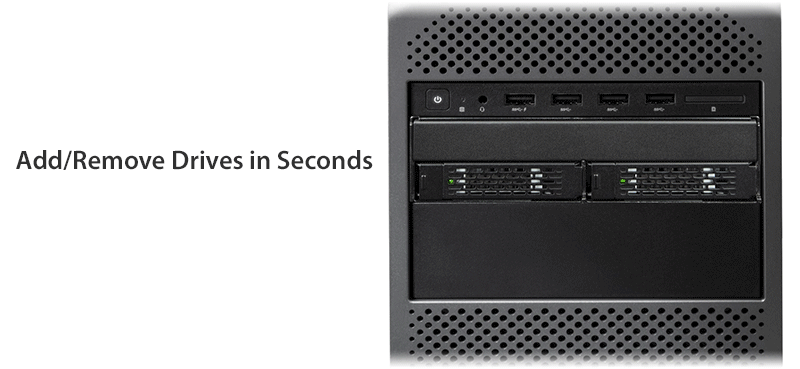

  • Easy Drive Access
    The MB105VP-B is equipped with two EZ Slide Mini removable full-metal drive trays supporting from 7mm to 15mm drive height, making drive maintenance a more efficient and straightforward process.
  • Enterprise Drive Cooling Solution

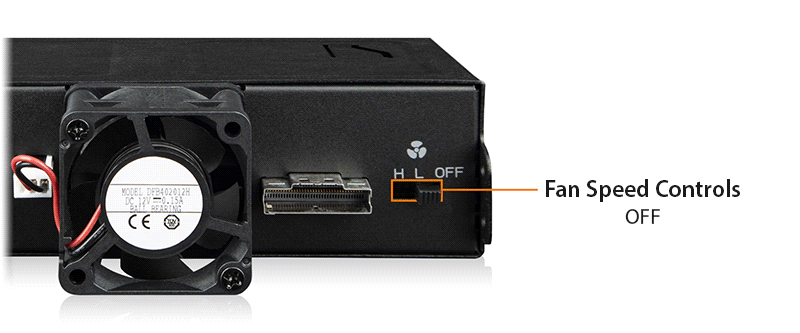

    The built-in 40mm x 20mm rear cooling fan effectively blows away the heat generated by the U.2/U.3 SSDs through the intelligently placed ventilation holes within the enclosure. Depending on the intensity of the workload on the U.2/U.3 drives, the user can adjust between three fan settings: Hi, Low and Off.

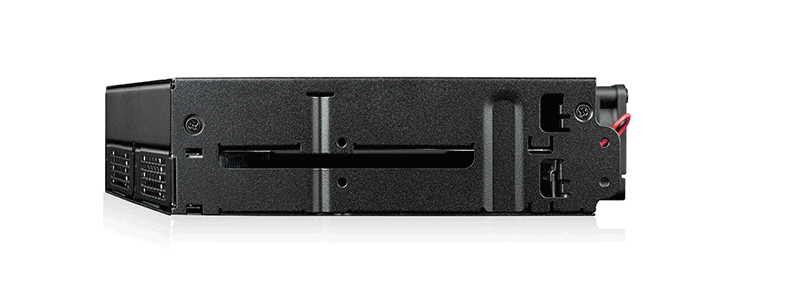

  • The additional cooling space above the drive trays allows the cooling fan to exhaust the drive heat more efficiently to prevent the drive from overheating.
  • NVMe 4.0 Performance
    The MB105VP-B connects 2 x U.2/U.3 SSD with only a single Slimline-SAS (SFF-8654-8i) to reduce cable clutter while offering NVMe 4.0 transfer speeds up to 64Gbps per drive bay.
  • Exceptional Product Compatibility
    The MB105VP-B is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations. For more information on product compatibility, clickhere.
  • Packed with Features

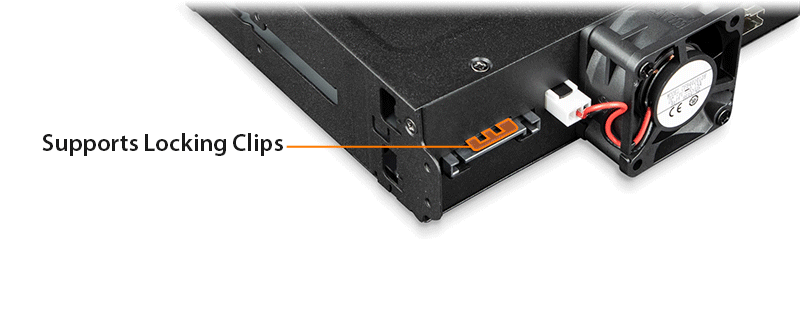

    The Slimline-SAS and 15-pin SATA power connectors are compatible with cables that have locking latch designs. Once the cables are connected, the locking latches will secure the connections in place.

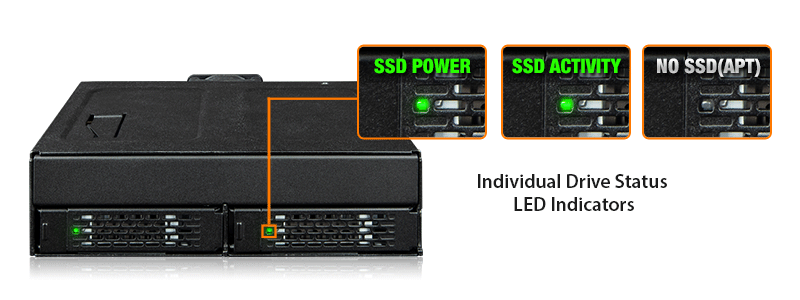

  • The LED status light in each drive tray gives you the drive status information at a glance. With Active Power Technology (APT), the LED lights turn on when the drive is inserted and automatically shut off when all drives are removed.
  • EMI Grounding Technology
    Grounding your drives is essential as swapping drives without proper grounding may damage hardware due to static shocks. With our innovative EMI Grounding Technology, once the drive is screwed onto the drive tray, the drive will be in a constant grounded state throughout the tray, housing, and computer system to ensure your drives are protected from static electrical surges safe during drive swapping.
  • ToughArmor Protection
    Ensuring the enclosure can be relied upon for many years, the ToughArmor MB105VP-B can hold up in the harshest environment. It is equipped with rugged, heavy-duty full-metal protection throughout the entire device and drive trays, making it perfect for industrial devices that may require a flammability rating, such as military, medical, in-vehicle computers, and law enforcement industries.
  • Optional: M.2 NVMe SSD to U.2 NVMe SSD adapter
    M.2 NVMe SSD can be utilized by the EZConvertMB705M2P-B, which converts an M.2 NVMe SSD into U.2 (2.5-inch) NVMe SSD form factor.
  • System Lacks a 5.25" Bay or Require a Fan-less Working Environment?
    If you're in need of a more compact U.2/U.3 SSD mobile rack enclosure, or if your computer system lacks a 5.25" bay, the ToughArmorMB092VK-Bdual bay U.2/U.3 NVMe SSD mobile rack enclosure is your perfect match. It can accommodate two U.2/U.3 NVMe SSDs ranging from 5-9.5mm in height, all within a single 3.5" floppy bay. With its fan-less design, the MB092VK-B ensures a quieter work environment. It's an ideal fit for systems with limited expansion space, those with a 3.5" bay, or users who have strict noise requirements in their workspace, such as audio and video recording and editing professionals.
  • Wide Range of Compatibility
    The EZ-Slide Mini TrayMB991TRAY-Boffers effortless interchangeability among different ToughArmor models.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ToughArmor MB105VP-B
TAATrade Agreements Act Compliance
ULSafety Standard Certification
UL94Flammability of Plastic Materials
FCCFederal Communications Commission Compliance
Wide TemperatureMIL-STD-810H - Method 501.7 & 502.7
Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at[email protected]
Main Features
Supports 2x 2.5-inch U.2/U.3 PCIe NVMe SSD, up to 15mm drive height
Installs into any standard external 5.25-inch optical drive bay
Uses 1x Slimline SAS (SFF-8654-8i) connector
Uses a single 15-pin SATA power cable
Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
Removable EZ Slide Mini drive tray system for easy maintenance
High-performance 40x20mm cooling fan with three fan adjustable speed settings (High, Low, Off)
Eagle-hook tray latch securely holds the trays inside the enclosure
EMI Grounding protects SSDs from electrical damage
Active Power Technology (APT) saves power by shutting down drives when no drives are installed
Industry-leading 5 years limited warranty against all defects
Complimentary support from a professionally trained US-based technical support agent.
Ruggedized heavy duty full metal construction with commercially designed for Medical & Military systems, Media servers, and IPCs, approved and used by Tier 1 companies.

Specification
Model NumberMB105VP-B
ColorBlack
Support Drive Size2.5" (up to 15mm height)
Compatible Drive TypeU.2 or U.3
Number of Drives2
Drive Bay5.25" half height bay
Host Interface1 x SlimSAS SFF-8654 8i, pin-out defined by SFF-9402 Rev 1.1
(Tri-mode HBA/RAID card compatible)
Power Input1 x 15pin SATA power connector
Transfer RateUp to 64Gbps (depending on SSD speed)
Support SSD CapacityNo limitation
Drive Cooling1 x 40x40x20mm fan
Structure / MaterialFull metal
Hot PlugYes
Product Dimension (L x W x H) 146 x 149 x 41.3 mm
Product Net Weight668 g
Package GrossWeight753.9 g
Drive Activity LED IndicationDrive power: solid green; SSD access: flashing green
Package ContentsDevice, user manual, screws
U.2 Connector Insertion Rate10,000
Humidity5%~65% RH
Operating Temperature0C to 60C (32F to 140F)
Storage Temperature-35C to 70C (-31F to 158F)
ComplianceCE, RoHS, REACH
Warranty5 years limited warranty
